Digital DC Volmeter Ammeter 90V 0-200A LCD Color Display Volt/Amp/Watt Coulomb Capacity Time Meter

Availability: In stock, usually dispatched in 1 business day

  • Price:$23.96
  • Price in reward points: 240 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $23.48 $23.00 $22.28 $21.32 Contact US
Quantity:

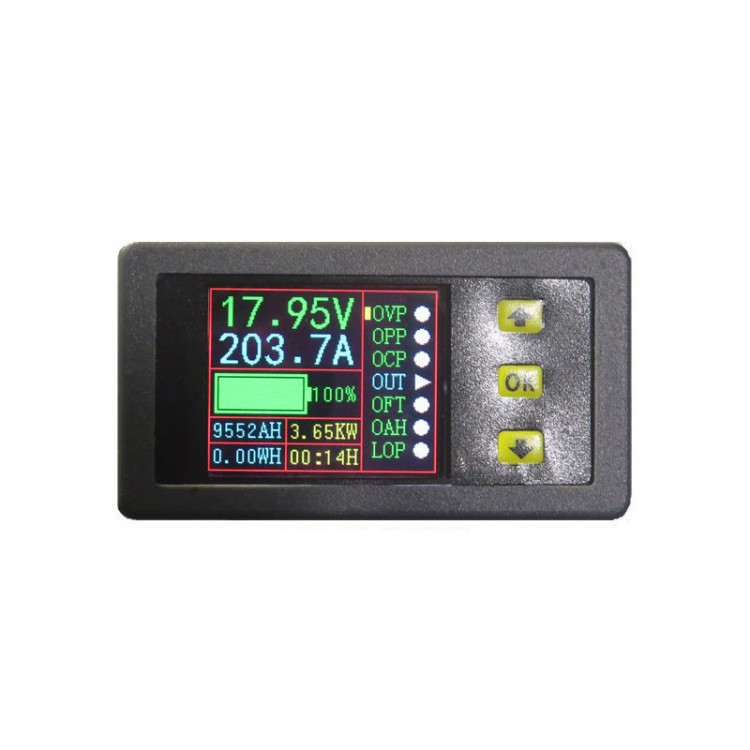

Digital DC Volmeter Ammeter 90V 0-200A LCD Color Display Volt/Amp/Watt Coulomb Capacity Time Meter

Features:

- DC 90V 0-200A Multimeter: can be used to detect voltage, current, capacity of charging and discharging, time, power and other physical information
- Power Off Memory Function: power rate (AH) can be stored when power off suddenly, which makes it easy to have load testing, monitoring and calculating
- Protective Functions: comprehensive protection with over-voltage, over-current, over-power, over-time and over-charge capacity

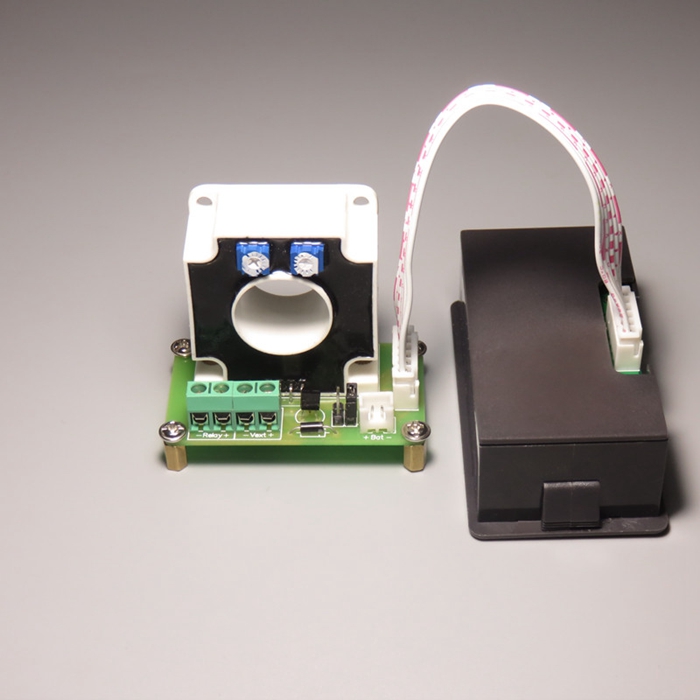

- Hall Sensor: Just let the wire which has current in it to pass through the hole of the sensor, bidirectional current can also be tested

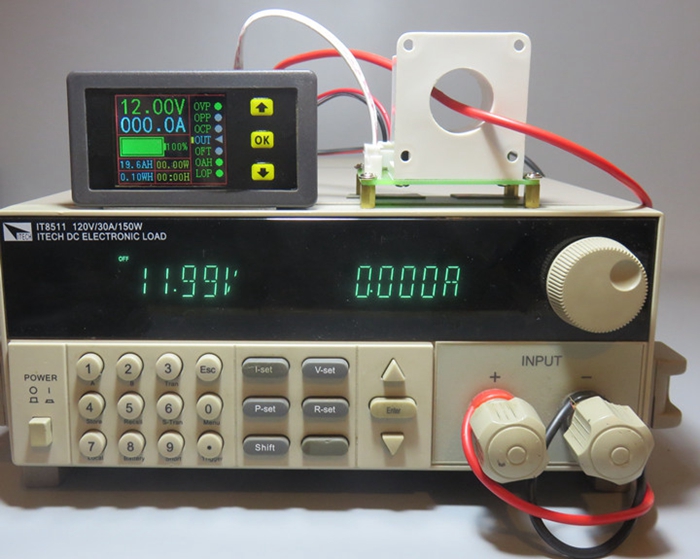

- Application: it is quite suitable for monitoring the output voltage and current, as well as applications such as battery charge and discharge

Technical Parameters:
- Current Measurement Range: 0-200A
- Display Resolution: 0.1A
- Testing Range of Self Power Supply: 12-90V
- Testing Range of External Power Supply: 0-90V
- Current Precision: ± 3%, ± 5 digits
- Voltage Precision: ±2%, ±5digits
- Measurement Rate: 5 time/second
- Open Holes: 76.5 x 39.2(mm)

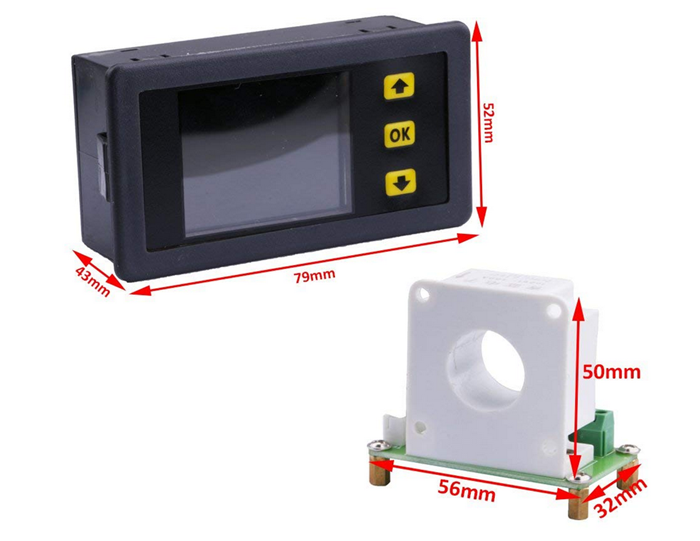

- Size: 79 × 43 × 52mm (L*W*H)

Protection Functions:

- OVP (Over-voltage Protection): 0.01V~90V
- OPP (Over-power Protection): 0.01W~9.99KW
- LOP (Low-voltage Protection): 0.01V~90V
- OCP (Over-current Protection): 0.1~100A
- OAH (Over-charge Protection): 0.01AH~9999AH
- OFT (Over-time Protection): 1min~99hour59min

Package Included:

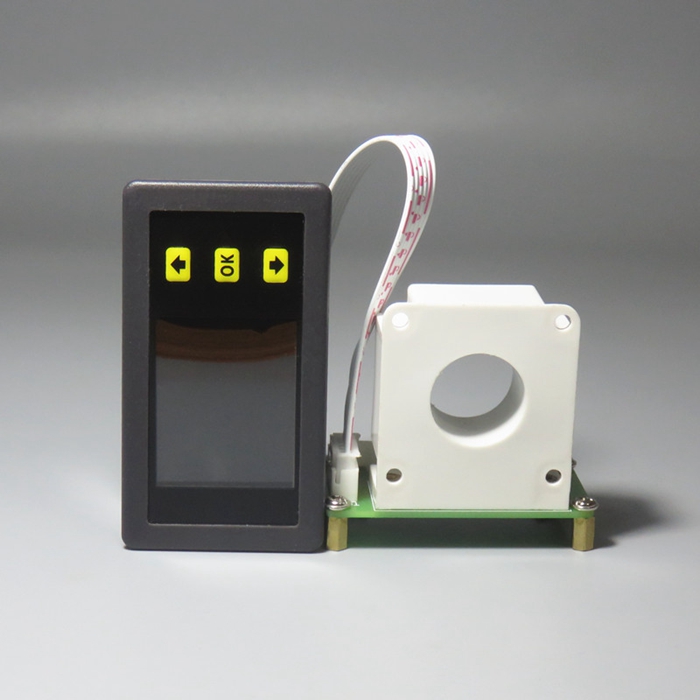

- 1 x Multifunctional Bidirectional Meter
- 1 x Hall Sensor
