PF9800 Digital Power Meter Smart Power Meter – Display Voltage, Current, Power & Power Factor
Features:
PF9800 Intelligent Power Meter
* The portable, economical single-phase digital power meter meets the basic measurement needs of power frequency electrical parameters.
* Multi-window display
* Automatic range selection
* Voltage measurement
* Current measurement
Widely Used
* Lighting fixtures
* Household appliances
* Power drivers
* Automotive electronics

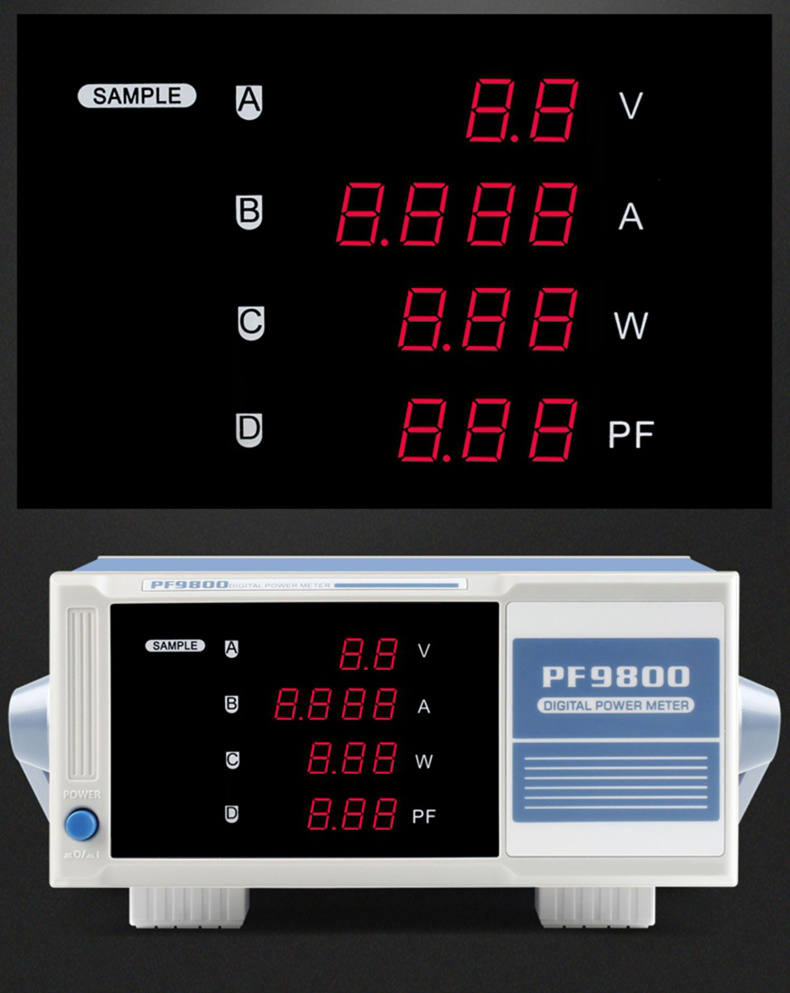

Multi-Window High-Definition Display
* The single-phase digital power meter features a multi-window display with high-definition clarity, allowing easy reading and more convenient testing.
* F9800 Four-Window Display: Voltage, current, power, power factor

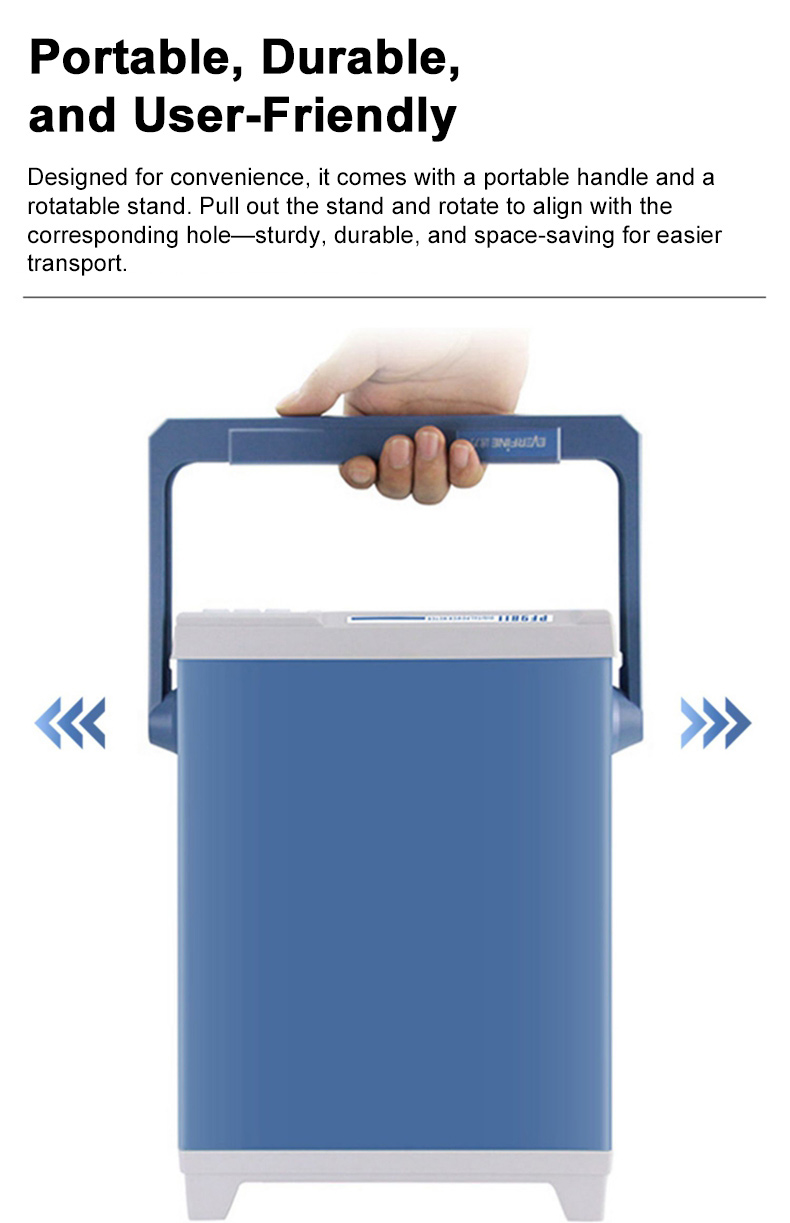

Portable, Durable, and User-Friendly

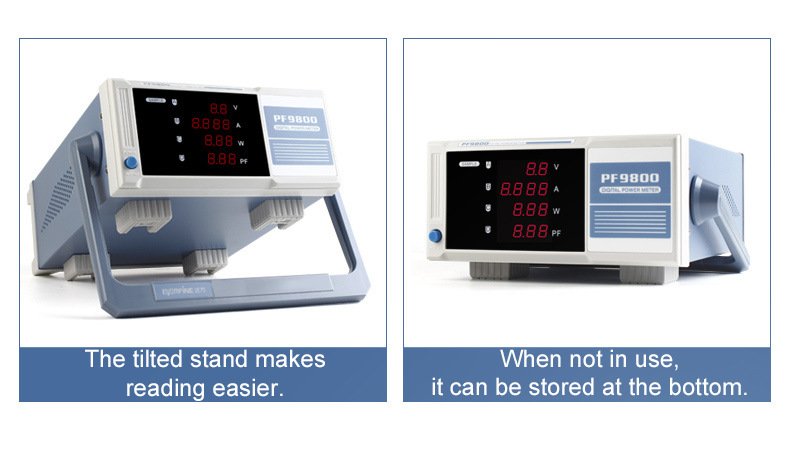

* Designed for convenience, it comes with a portable handle and a rotatable stand. Pull out the stand and rotate to align with the corresponding hole—sturdy, durable, and space-saving for easier transport. The tilted stand makes reading easier, and when not in use, it can be stored at the bottom.
Multiple Testing Functions
* It can measure voltage, current, power, and power factor. This meter meets the basic requirements for power frequency electrical parameter measurement, offering high cost performance. Ideal for engineers and suitable for large-scale enterprise procurement.
Specifications:
* Model: PF9800 (Compact Type)
* Display: Four-window display — Voltage, Current, Power, Power Factor
* Input Voltage: 3V-600V
* Input Current: 5mA-20A
* Range Switching: Automatic
* Power Factor: -1.000 to 1.000
* Accuracy: ±(0.4% of reading + 0.1% of range + 1 digit)
* Frequency Range: Not Supported
* Upper/Lower Limit Judgment Function: Not Supported
* Latch Function: Not Supported
* Communication: Not Supported

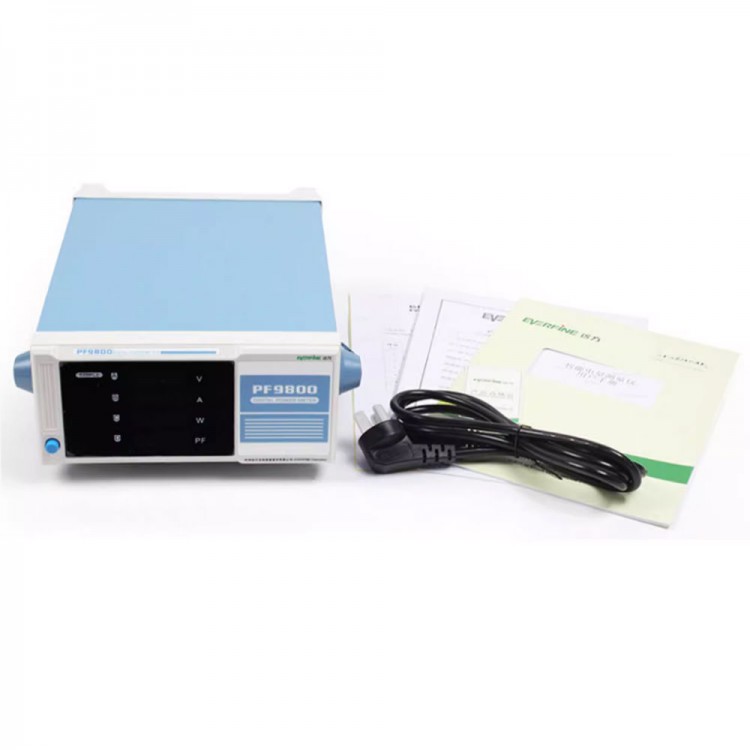

Package Includes:
* 1 × Main Unit
* 1 × Power Cord
* 1 × Certificate of Conformance
* 1 × Qualification Certificate
* 1 × Packing List Paper
* 1 × Quick Operation Guide
* 1 × User Manual
Packaging Details:
* Weight: 4kg
