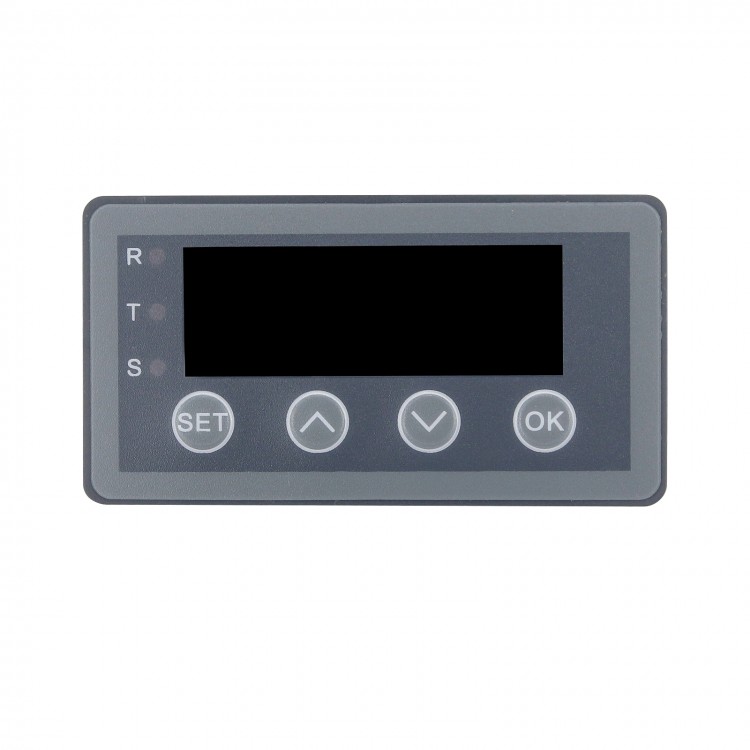

Digital Display Meter 0-10V 0-20mA 2-10V 4-20mA Signal Generator Analog Output with Multifunctional Input Interface

Digital Display Meter 0-10V 0-20mA 2-10V 4-20mA Signal Generator Analog Output with Multifunctional Input Interface

Features:
-In addition to the panel buttons to adjust the output size, the output size can also be adjusted by an external button or 10K potentiometer or pulse potentiometer (encoding knob).
-Power supply: DC 15~25V, power consumption 24V/50mA; power supply anti-reverse connection and surge protection, signal port anti-static protection
-1 analog output, optional voltage type (output range: 0/2-10V) or current type (output range: 0/4-20mA) can be selected; other output ranges within the range of 0-10V or 0-20mA CAN be set by gain and offset parameters
-Voltage type output load impedance requirement ≥2KΩ, current type output load impedance requirement ≤500Ω
-0.56 inch 4-digit digital tube. The corresponding relationship between display and output can be set freely, and it can easily deal with frequency/speed/pressure/opening, etc. All parameters can be saved directly after power-off. "Setpoint Output" can choose whether to save when power off (set by F0-8).
-Multiple given modes can be selected.
-Settable output ramp time, convenient to apply to occasions that need to change slowly.
-Newly added automatic operation function, one-button turn off output and other functions.

Port Description:
PWR: connect to DC 15-25V supply positive
GND: power and signal ground
V0: voltage-type analog output interface
mA0: current-type analog output interface
MIA: external button, increase signal
MIB: external button, decrease signal
MIA: pulse potentiometer A pin
MIB: pulse potentiometer B pin
MIA: connect potentiometer, sliding end
MIB: connect potentiometer, fixed end

Package List:
1 x Digital Display Meter
