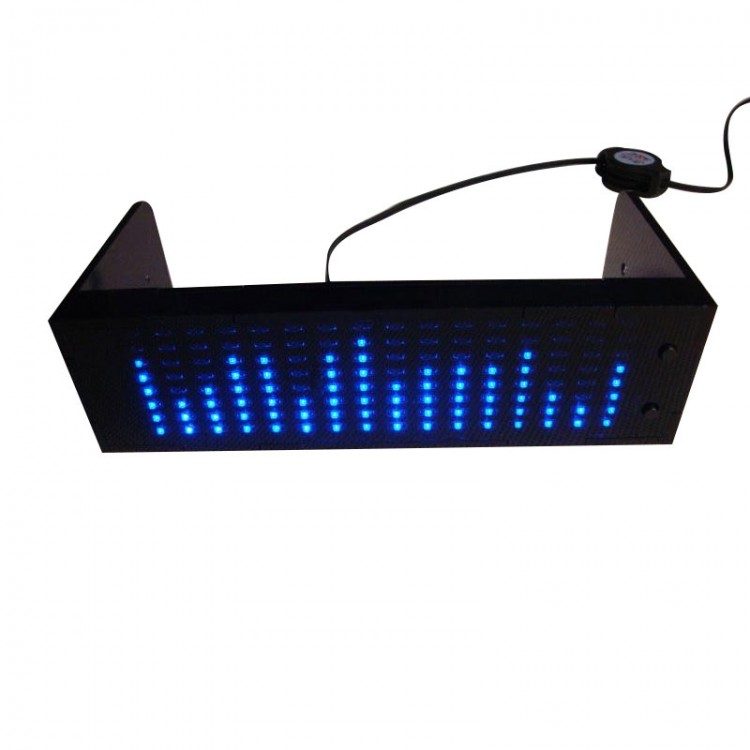

Description:
- Using original stereo collecting technique, showing a perfect spectrum effect;

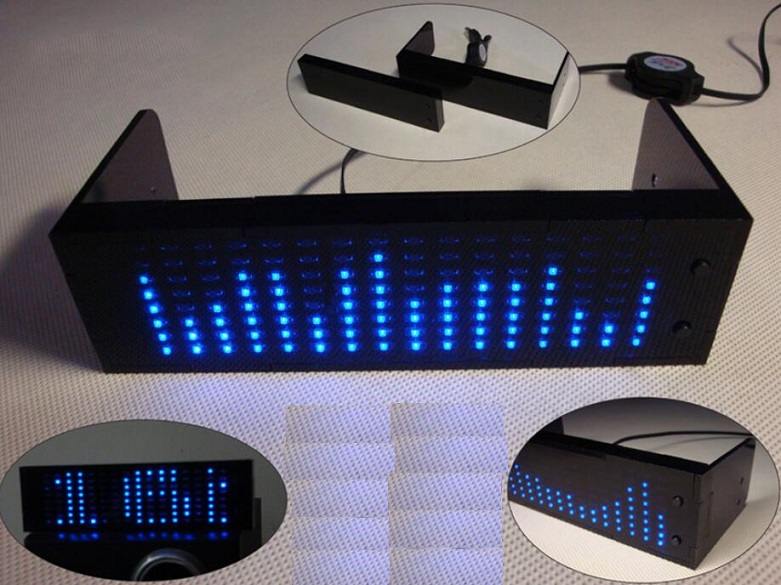

- Mute will display the temperature, this version can use in desktop or computer drive position, can display room temperature or monitoring computer chassis temperature;
- Use vertical miniUSB interface input audio and power;
- 6 kinds of classic spectrum mode adjustable, with power-down memory;
- Adjustable brightness, luminance values with power and memory;

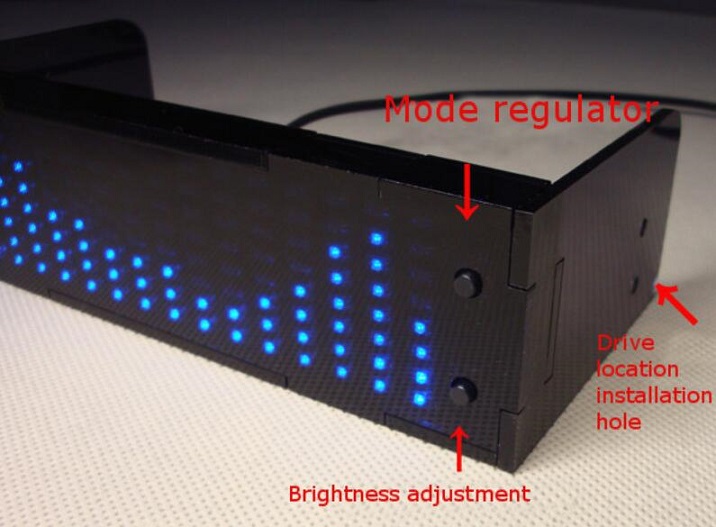

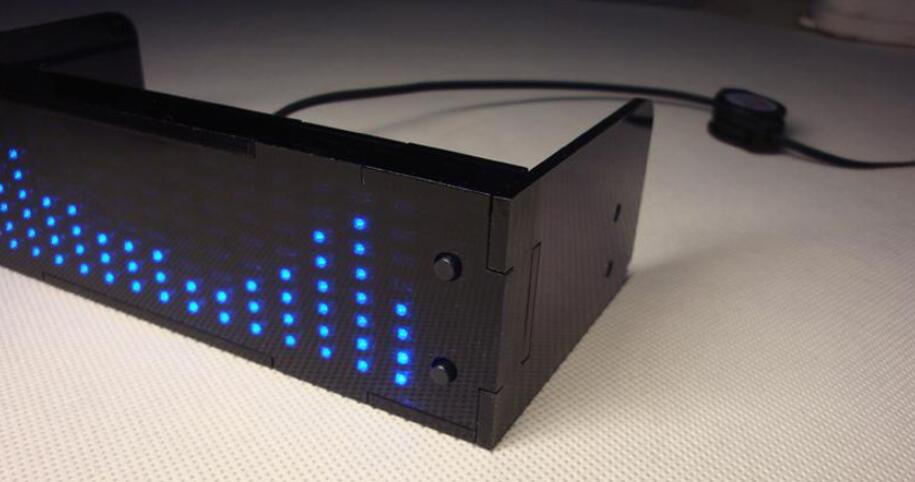

- Front button design, easy to operate;
- Size: 14.8 x 4.2 x 7cm

LED color has red,yellow,green,and blue is optional,the default blue,(according to the principle of the same color within the same column can, the color of the need to please note)

Main Features:

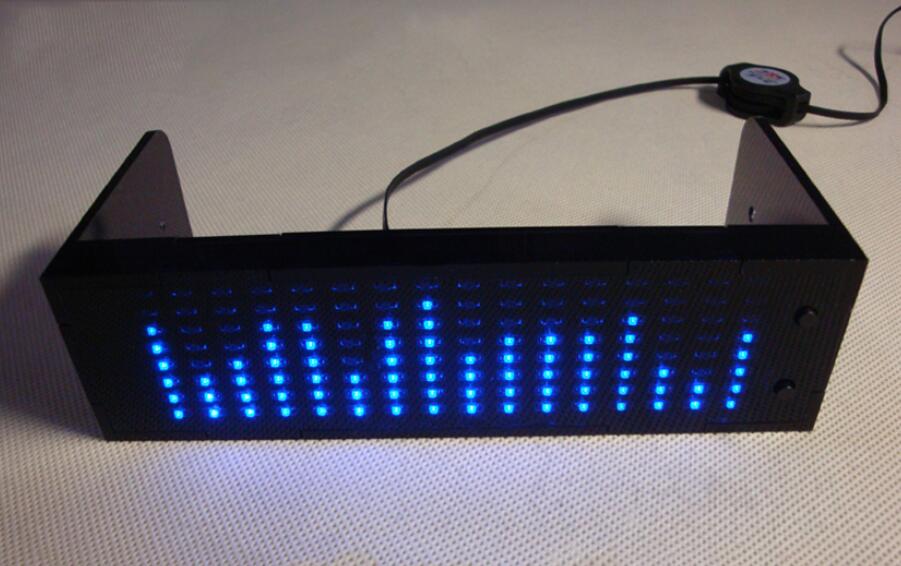

- Using our original stereo collection technology,showing the perfect spectrum effect;
- Mute display temperature,spectrum real-time display in the desktop desktop placed at room temperature,a CD-ROM spectrum can be real-time monitoring of computer chassis temperature;

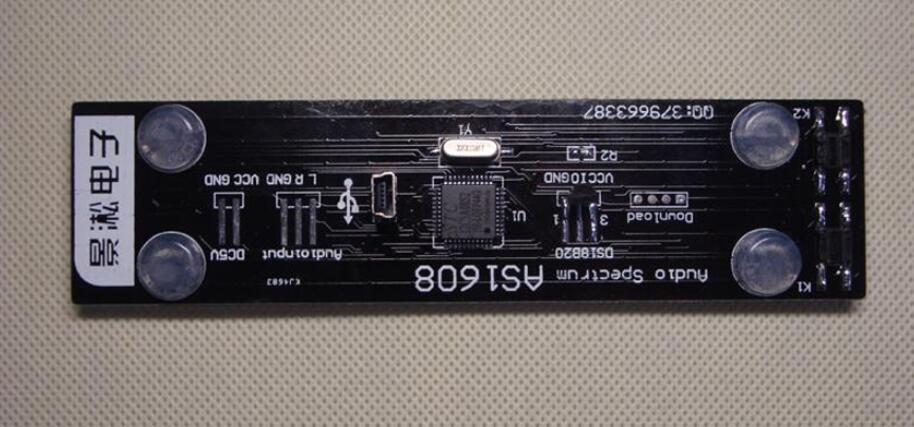

- The use of imported materials of organic glass and black black PCB,can be directly on the computer desk,stereo,DVD,power amplifier,optical drive a spectrum on the chassis,looks like the case one integrated mass,Perfect combination with case;

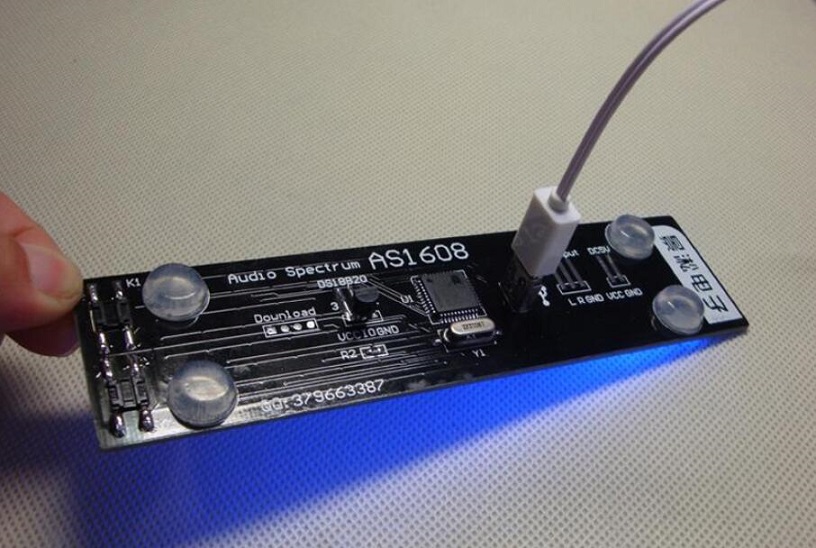

- The clever use of vertical miniUSB interface input audio and power;
- 5 or 6 kinds of classic spectrum model is adjustable,take off the electric memory;
- Adjustable brightness,brightness values take off electric memory;
- Clever front button design,convenient operation;

Welding notice: LED positive and negative,please distinguish (PCB positive on the right side of the LED negative)

Welding Notice:
- 1.Have spent Leds must distinguish the positive and negative,and 3 methods:1 or 2 positive for green anode;The tip of the bottom triangle is a negative electrode;If you have a multimeter,can be directly tested by diode file;
- 2.Pay special attention to: single chip microcomputer direction must be welding on.
Method 1: the smallest single-chip dot on the printing gap (the new single-chip 2-3 dot,of which the smallest dot or dot dot dot)
Method 2: microcontroller on the "STC" logo can be consistent with the following figure
- 3.The temperature sensor welding attention: the temperature sensor DS18B20,the plane facing oneself,the left hand is 1 feet.

Suite debugging in detail:
1.Product attached to the second line,one end of the is a USB power supply end,insert the USB interface of the computer,or with a USB interface charger,end for audio input 3.5mm jack,the first supplied audio splitter into computers or other with a 3.5mm earphone audio output interface,and then branch is connected with one end of the spectrum,one connected audio equipment(as long as to drive headphones can drive spectrum);
2.When the plug in the power supply side of the USB,the audio side is not inserted, the spectrum will be induced to beat is normal,because the input is suspended;
3.Insert audio,audio equipment mute,spectrum shows the bottom line (if still beating,please check whether the audio jack and branch contact is good,quiet down if there is a noise sound,please check the branch and the earphone is plugged in to the end) to play music,spectrum will beat with the music,if small or bouncing, please adjust the volume,if the spectrum is easy to full screen display,lower the computer volume,general computer volume transferred to 50-60%.
4.LED has no bright solution:
The most common is the vertical a column does not shine - this one column corresponding to the microcontroller pin weld,filling welding can be;(2) this column have an LED short circuit,with a multimeter diode archives check can be excluded.

Package List:
- 1 x DIY Audio Spectrum Kit
