DIY Open Source Geiger Counter Meter Kit Module Miller GM Tube Detector Radiation LCD Display

Availability: In stock, usually dispatched in 1 business day

  • Price:$53.54
  • Price in reward points: 535 Reward Points: 5
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $52.47 $51.40 $49.79 $47.65 Contact US
Quantity:

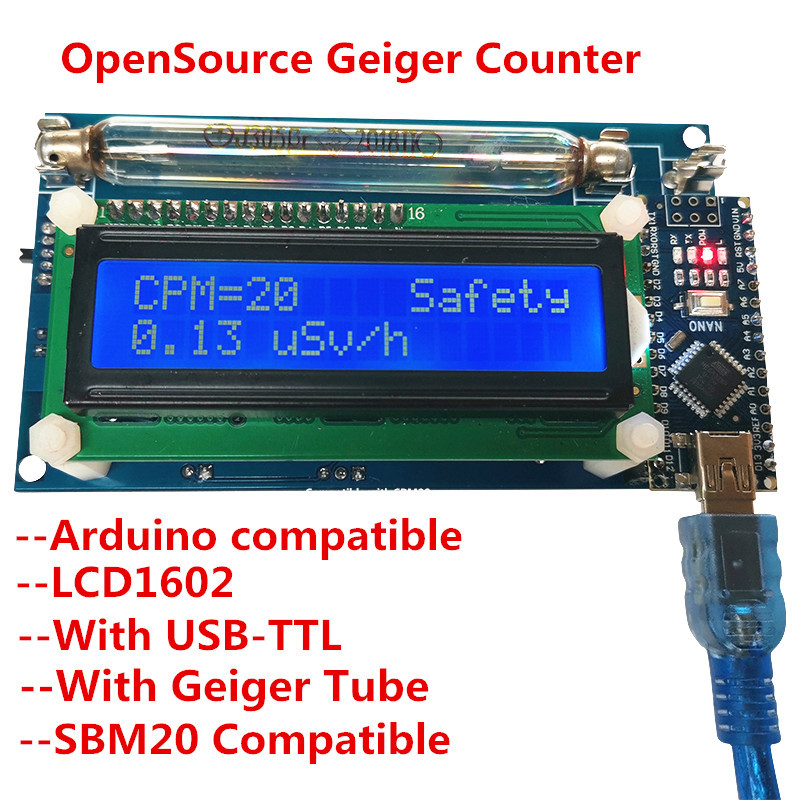

DIY Open Source Geiger Counter Meter Kit Module Miller GM Tube Detector Radiation LCD Display

Description:
- Model:GC-1602-NANO
- Plug it and  you can directly measured nuclear radiation.

Features:
- For the detection of 20mR/h ~ 120mR/h of gamma rays and 100 ~ 1800 off variables / points of the soft beta ray.
- Sound and light alarm.
- Interrupt the output interface, through this interface can be connected to the microcontroller and thendisplayed on the LCD.
- Supports most of the Geiger tube: M4011, STS-5, SBM20, J305, etc. (the 330~600V operating voltage of the Geiger tube can be supported).
- Support the computer (PC) data acquisition, Matlab analysis and processing.

Specifications:
- Geiger tube parameters:
- Technical parameters diameter: Φ10±0.5mm
- Total length: 90±2mm
- Starting voltage: < 350V
- Recommended operating voltage: 380V
- Minimum plateau length: 80V
- Maximum plateau slope: 10%/80V
- Extreme operating voltage: 550V
- The maximum count rate: 25 times / min
- Life: > 1 x 10^9 pulse
- Medium temperature: -40 ~ 55 ℃
- Item size: 118 * 63mm / 4.6 * 2.5in
- Package size: 130 * 80 * 50mm / 5.1 * 3.1 * 2.0in
- Package weight: 150g / 5.3ounce

Package list:

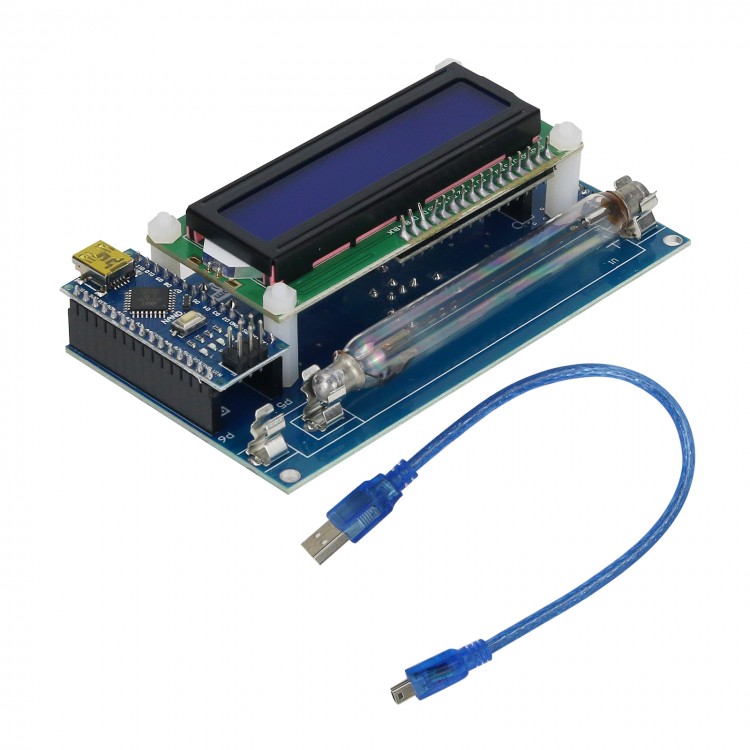

- 1 x Assembled Radiation Detector System(with LCD and Arduino Nano)



NANO盖革计数器1602文字

微信图片_20190918094318_副本

微信图片_20190918094338_副本

微信图片_20190918094342_副本
