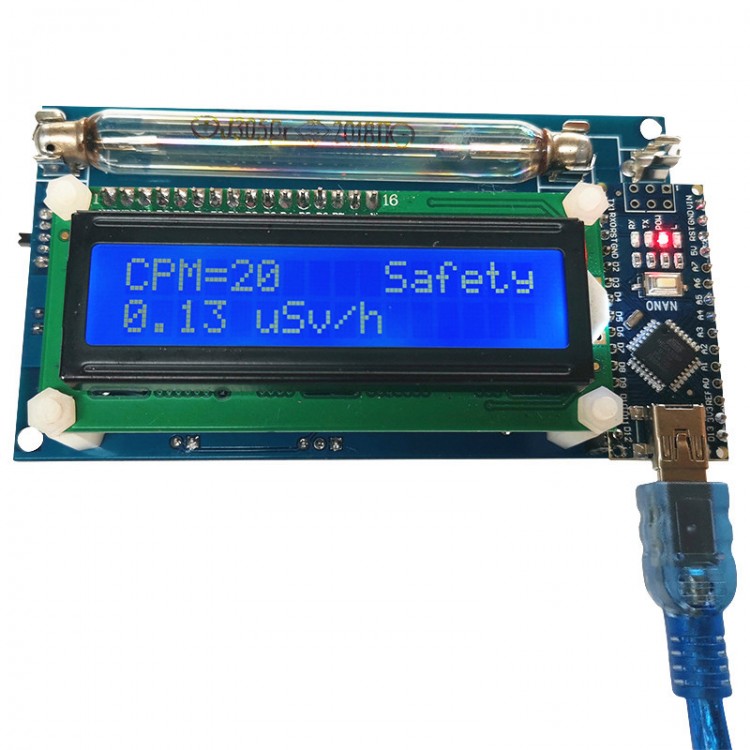

Open Source Geiger Counter Radiation Detector DIY Module with LCD Display Assembled

Availability: In stock, usually dispatched in 1 business day

  • Price:$45.72
  • Price in reward points: 457 Reward Points: 5
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $44.81 $43.89 $42.52 $40.69 Contact US
Quantity:

Open Source Geiger Counter Radiation Detector DIY Module with LCD Display Assembled

Geiger Tube Parameters:

- Technical parameters: diameter 10±0.5mm
- Total length: 90±2mm
- Starting voltage: < 350V
- Recommended operating voltage: 380V
- Minimum plateau length: 80V
- Maximum plateau slope: 10%/80V
- Operating voltage limit: 550V
- Maximum background counting rate: 25 times / min
- Lifespan: > 1 x 10^9 pulse
- Medium temperature: -40℃ to 55℃

System Parameters:

- Powered by 5V power supply or by 3x 1.5V batteries; 4x 1.2V batteries, current: 12mA-30mA (batteries are not included)
- For the detection of 20mR/h ~ 120mR/h of gamma rays and 100 ~ 1800 off
variables / points / cm2 of the soft beta ray.
- Sound and light alarm
- Interrupt output interface: Through this interface, the module can be connected to a MCU and then displayed on the LCD.
- Fit for Arduino
- Size: 118 x 63mm
- N.W.: 150g

Compatibility:

- Supports most Geiger tubes, including M4011, STS-5, SBM20 and J305. Geiger tubes with 330-600V operating voltage are supported.
- Support a computer (host) to collect data, Matlab analysis and processing.

Package Included:
- 1 x Geiger Counter w/ LCD & Board For Arduino NANO (USB to TTL Communications)
- 1 x Geiger Tube J305
- 1 x Power Cable

Note:
- It is assembled and ready for use.
- Batteries are not included in the package.
- Please contact us for user manual and relevant schematic diagram after purchasing.
