DJI Wookong WK-M GPS Multi-Rotor Stabilization Autopilot System Quad-copter FPV

Availability: Out Of Stock

  • Price:$1,139.00
  • Price in reward points: 11390 Reward Points: 114
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $1,116.22 $1,093.44 $1,059.27 $1,013.71 Contact US
Quantity:

DJI Wookong WK-M GPS Multi-Rotor Stabilization Autopilot System Quad-copter FPV


DJI Wookong Multi-Rotor stabilization controller is a complete flight system for all multi-rotor platforms for commercial and industrial AP applications. Unlike others, WooKong allows the use of regular ESC commonly used in RC helicopter without any wiring modification; Heli mode setup providing a seamless transition for current Ace One AP professionals. WK-M utilizes high quality components precisely calibrated with temperature compensation in all gyros and sensors, industry renounce flight algorithm in autopilot and UAV. IMU damping system is rated for gas engine best in the class.

Attitude mode maintains precise altitude hold for indoor flight while GPS mode provides superb position hold outdoor. External LED flight mode indicator light can easily be observed by pilots under any condition.

WK-M can be flown in one single full auto (GPS-Atti) mode from take-off to landing; or in Atti mode while manual mode has stabilization activated. The system is easy to install with user friendly software allowing on-line firmware and software upgrade.

DJI Wookong Multi-Rotor stabilization controller is a complete flight system for all multi-rotor platforms for commercial and industrial AP applications.

Unlike others, WooKong allows the use of regular ESC commonly used in RC helicopter without any wiring modification; Heli mode setup providing a seamless transition for current Ace One AP professionals. WK-M utilizes high quality components precisely calibrated with temperature compensation in all gyros and sensors, industry renounce flight algorithm in autopilot and UAV. IMU damping system is rated for gas engine best in the class.

Attitude mode maintains precise altitude hold for indoor flight while GPS mode provides superb position.

Features:
- Fail-Safe Fail-Safe
- Fail Safe Hover
- Return to Home & Auto Landing
- Low voltage protection Low voltage protection
- Two-level low voltage protection
- Power Module Power Module
- Versatile power module for MC power supply
- voltage monitoring and CAN bus connections
- D-Bus supports S-BUS receiver system



General specifications
Built-In Functions: Autopilot
  Auto Hover Fail Safe
Multi Rotor Types: Quad-Rotor
Hex-Rotor
Octo-Rotor
Supported ESC output: 400Hz refresh frequencys
Recommended Transmitter: PCM or 2.4GHz with minimum 5 channels and Failsafe function available on all channels
Recommended Power Supply: DC 4.8 ~ 12V
Power Consumption: MAX 5W
(0.9A@5V, 0.7A@5.8V,0.5A@7.4V,0.4A@8V)
Operating Temperature: -5°C to +60°C
  (You have to keep the IMU warm if you want to use it under low temperature, could be -5°Cor lower.)
Flight Performance (can be effect by mechanical performance)
Hovering Accuracy: Vertical: ± 0.5m
  Horizontal:

± 2m

Suitable Wind Condition: < 8m/s (17.7mph)
Max Rotate Angle: 30°
Vertical Speed: 3m/s
Packaging &Shapes
Total Weight: <= 150g

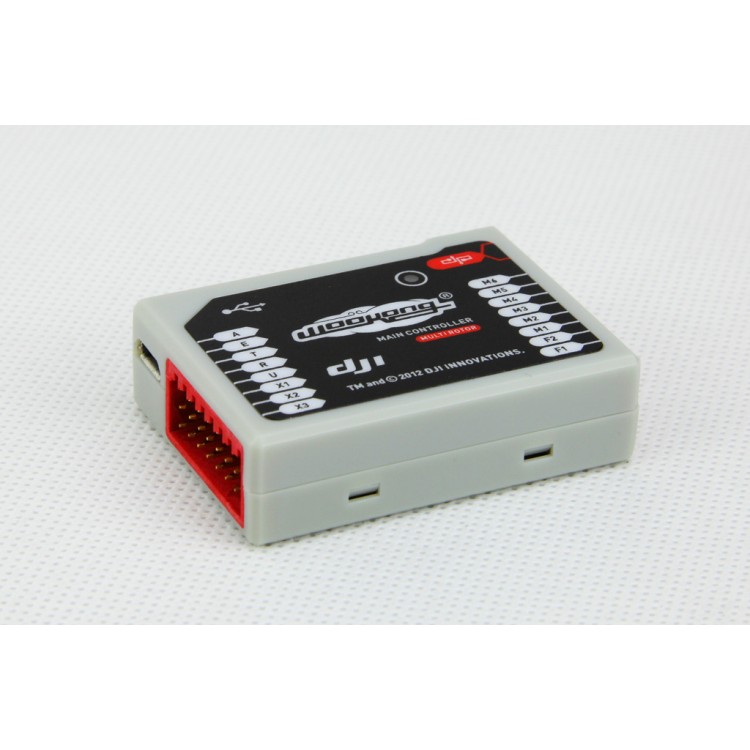

Dimensions: Main Controller: 61mm x 39.6mm x 15.8mm
  IMU: 40mm x 31mm x 26mm
  GPS & Compass: 50mm (diameter) x 9mm
  LED Indicator: 25mm x 25mm x 7mm
