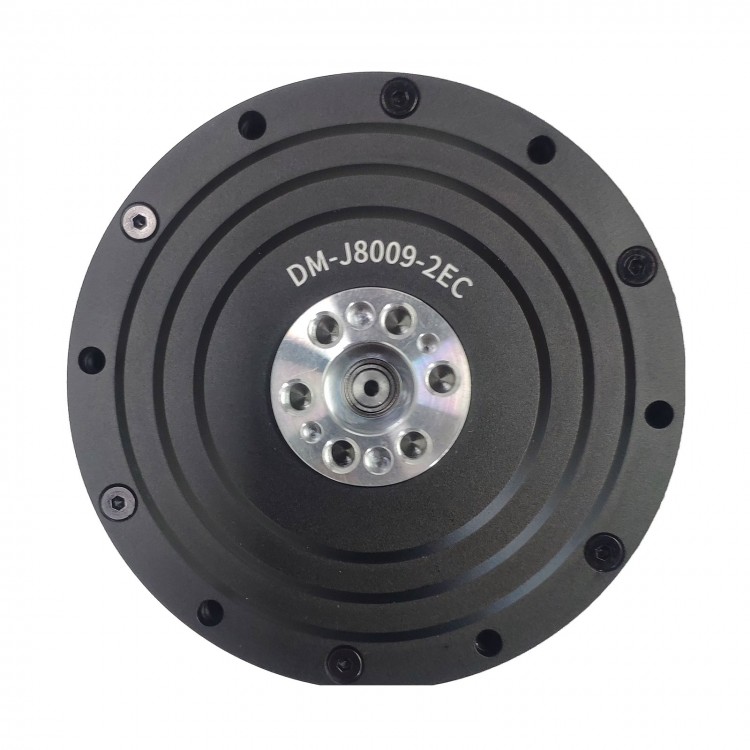

DM-J8009-2EC DM8009 24V 20Nm Joint Motor Gear Motor with Deep Groove Ball Bearings & Two Encoders

DM-J8009-2EC DM8009 24V 20Nm Joint Motor Gear Motor with Deep Groove Ball Bearings & Two Encoders

Advantages:
* Rated Torque: 20Nm
* Output Shaft Single-turn Absolute Position
* Built-In Driver
* Three Operation Modes: MIT, Speed and Position Modes
* Built-In Gearbox
* Dual Built-In Encoders

Features:
* The output shaft of the DM-J8009-2EC uses thin-wall deep groove ball bearings
* Dual-encoder system, with single-turn absolute position output shaft, ensures no loss of absolute position during power outages
* Integrated motor and drive design, and compact structure with high level of integration
* Supports PC-based visual debugging and firmware upgrades
* Capable of real-time feedback via CAN bus, including motor speed, position, torque, and temperature data
* Equipped with dual-temperature protection for enhanced safety
* Supports trapezoidal acceleration/deceleration in position control mode

Specifications:
Motor Parameters:
* Rated Voltage: 24V (Supports 24-48V)
* Rated Current: 20A
* Peak Current: 50A
* Rated Torque: 20Nm
* Peak Torque: 40Nm
* Rated Speed: 24V: 100RPM; 48V: 200RPM
* No-load Maximum Speed: 24V: 160RPM; 48V: 320RPM

Motor Characteristics:
* Reduction Ratio: 9:1
* Number of Pole Pairs: 21
* Phase Inductance: 61µH (at 25°C)
* Phase Resistance: 0.09Ω (at 25°C)

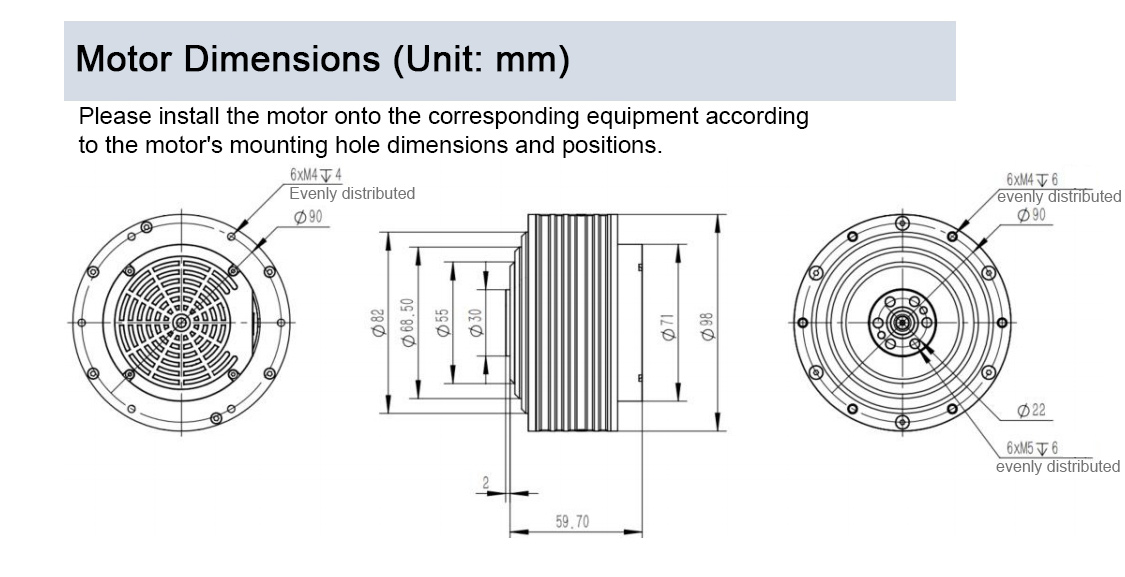

Structure and Weight:
* Outer Diameter: 98mm
* Height: 61.7mm
* Motor Weight: Approximately 896g

Encoder:
* Encoder Resolution: 14-bit
* Number of Encoders: 2
* Encoder Type: Magnetic Encoder (Single-turn absolute position of the output shaft)

Communication:
* Control Interface: CAN at 1Mbps
* Parameter Adjustment Interface: UART at 921600bps

Control Modes:
* MIT mode, speed mode and position mode

Protection:
* Driver Over-temperature Protection: Protection temperature set at 120°C. When overheating occurs, the motor will exit "Enable Mode".
* Motor Over-temperature Protection: Set according to use requirements, recommended not to exceed 100°C. When overheating occurs, the motor will exit "Enable Mode".
* Motor Over-voltage Protection: Set according to use requirements, recommended not to exceed 52V. When over-voltage occurs, the motor will exit "Enable Mode".
* Communication Loss Protection: If no CAN command is received within the set period, the motor will automatically exit "Enable Mode".
* Motor Over-current Protection: Set according to use requirements, recommended not to exceed 39A. When over-current occurs, the motor will exit "Enable Mode".
* Motor Under-voltage Protection: If the power supply voltage is below the set value, the motor will exit "Enable Mode". Power supply voltage should not be less than 15V.

Packing List:
* Motor (with driver) ×1
* Power cable: XT30 male-to-female power cable ×1
* CAN communication terminal: GH1.25 connector cable - 2pin ×1
* Debugging serial signal cable: GH1.25 connector cable - 3pin ×1

Packaging Details:
* Weight: 1.15kg

Precautions:
1. Please operate the motor strictly within the specified working environment and the maximum allowable winding temperature range. Otherwise, permanent and irreversible damage may occur.
2. Avoid foreign objects entering the rotor; otherwise, abnormal rotor operation may result.
3. Before use, check whether all components are intact. If any parts are missing, aged, or damaged, stop using the motor immediately.
4. Ensure correct wiring and secure, proper motor installation.
5. Do not touch the electronic rotor area during operation to prevent accidents. When the motor outputs high torque, it may generate heat—be careful to avoid burns.
6. Do not disassemble the motor without authorization, as this may affect control accuracy or cause malfunction.
