Dobot CR10 1525mm 6-Axis Collaborative Robot Cobot Robot Industrial Robotic Arm with 10KG Payload

Dobot CR10 1525mm 6-Axis Collaborative Robot Cobot Robot Industrial Robotic Arm with 10KG Payload

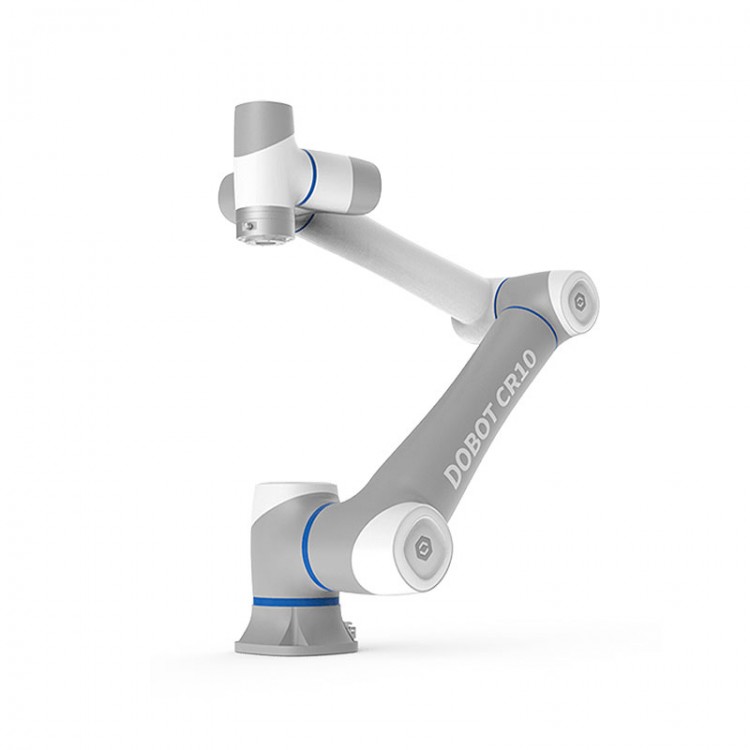

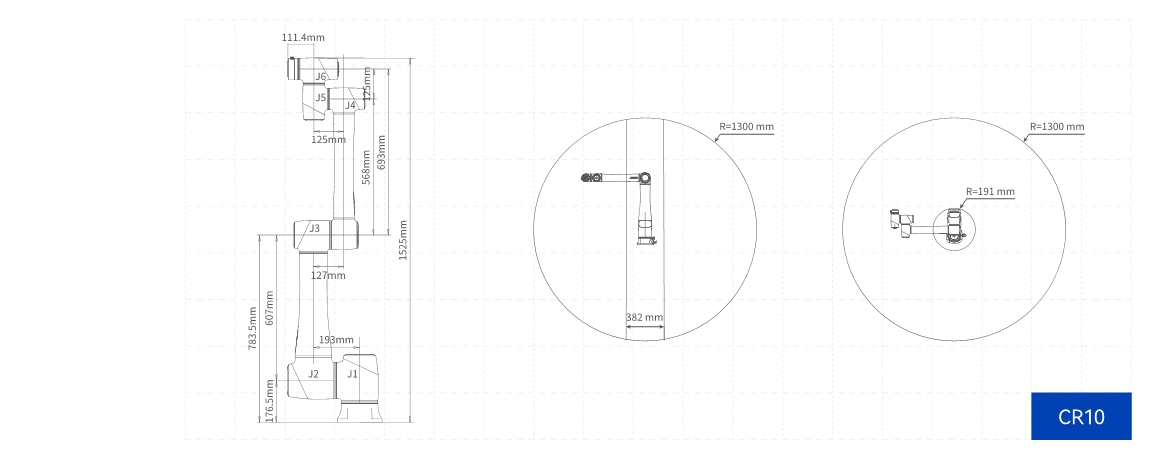

CR10 Collaborative Robot:
The CR10 has a maximum reach of 1525 mm and max operating speed of 4 m/s. With DH parameters compensation technology and vibration suppression algorithm, CR10 is highly reliable when operating at high speed. And it is ideal for palletizing, unpacking, transportation, loading and unloading tasks.

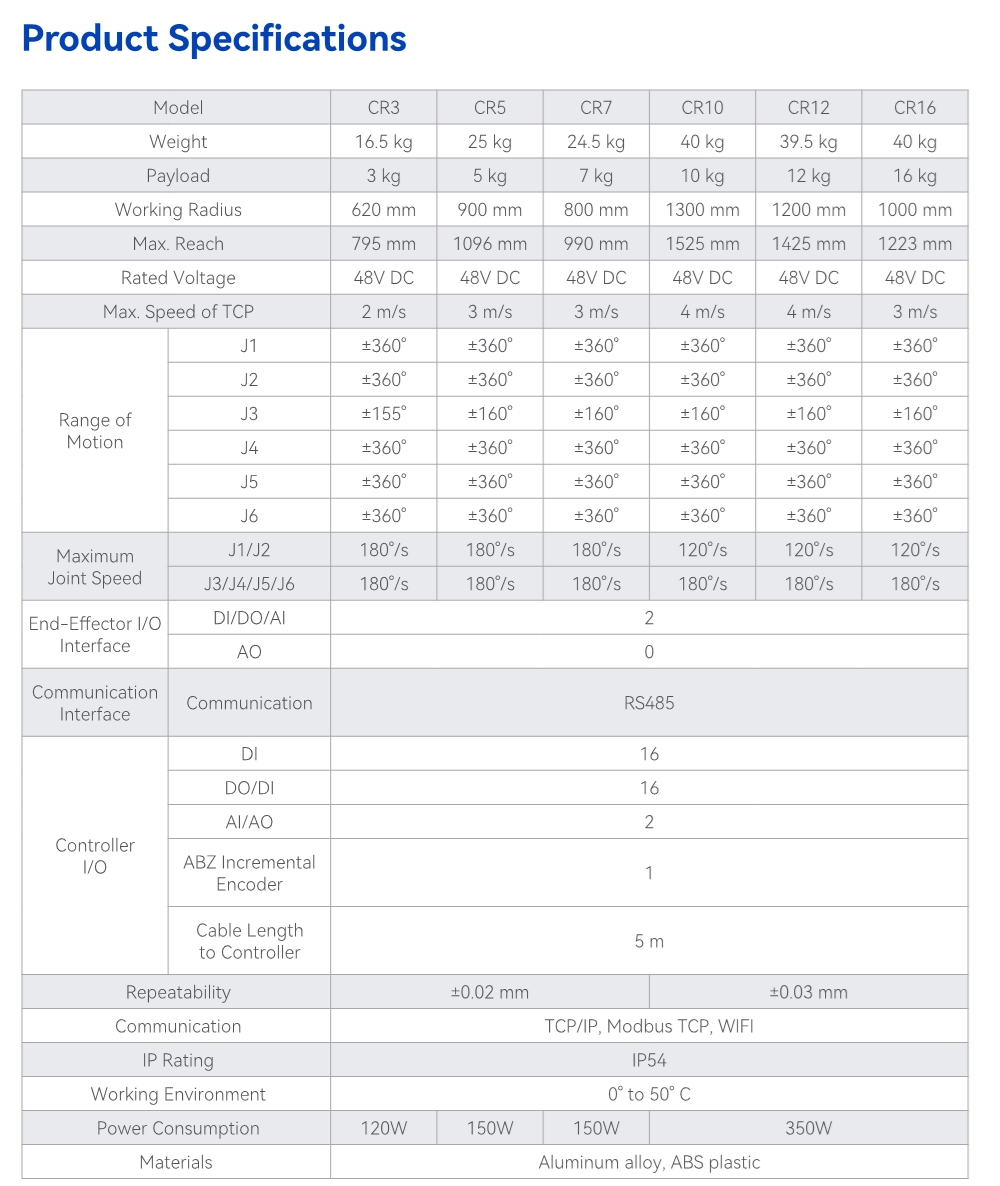

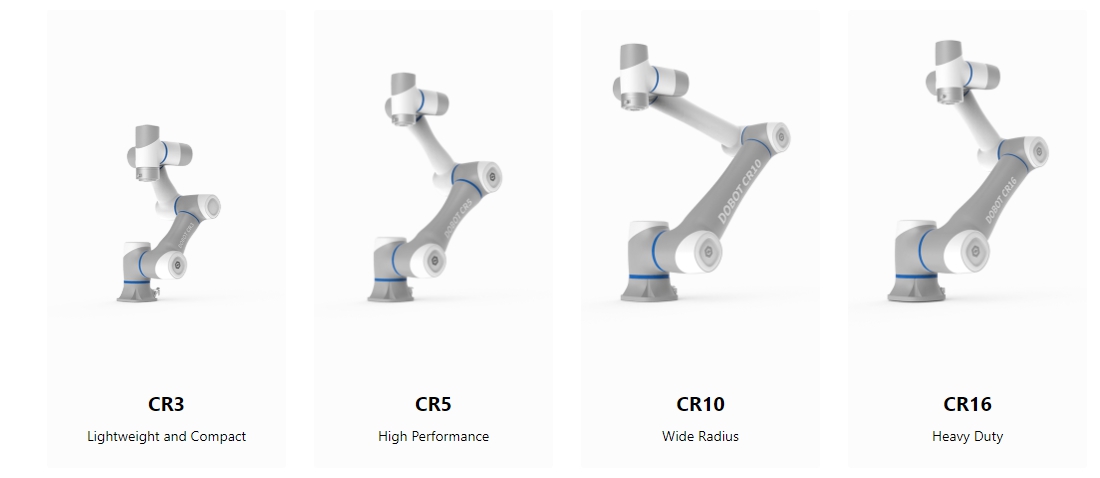

Description of CR Series Collaborative Robots:
The DOBOT CR Series consists of 6 payloads: 3 kg, 5 kg, 7 kg, 10 kg, 12 kg, and 16kg, with repeatability of ±0.02 mm. They are safe for human collaboration, easy to use, flexible and simple to deploy, making them ideal for a wide range of industries: automotive, consumer electronics, semiconductor, healthcare, chemical and new retail. The CR Series lowers labor cost while enhancing production efficiency.

Key Features:
Easy to Learn. Fast to Deploy
* Plug and play design allows a quick deployment using different accessories from our ecosystem. Program with graphical interface, scripting using smartphones, tablets and computers, or program directly with drag-to-teach. Complete installation in 20 minutes. Up and running in an hour.

Safe for Efficient Collaboration
The CR Series has 22 safety features built-in and is ISO 13849 and TS15066 certified. Equipped with sensors offering 5 adjustable levels of collision detection, it can adapt to a variety of application scenarios. The optional SafeSkin senses unexpected objects that come within 15 cm, actively enhances the safety and efficiency of the robot.

Infused with AI Technology
* All-perceptive AI control technology combines vision, force, voice controls into one. Trajectory tracking and portable learning algorithm make imitating human hand motions possible.

Advanced Algorithm for Higher Performance.
* Industry-leading DH parameter compensation technology achieves ±0.02 mm repeatability. Vibration suppression and True Motion algorithms guarantee precision and stability during complex movements.

Open Ecosystem for Scalability
Various plug-and-play grippers, cameras, and sensors can be connected to multiple IO and communication interfaces on the robot. Secondary development is supported on 20+ development platforms. Task-specific software packages cover loading and unloading, assembly, screw-driving, polishing and other 50+ tasks that can be used across 8 major industries.

Application Scenarios:
* Loading and Unloading
* Bin Picking
* Screw-driving
* Welding
* Gluing
* Quality Inspection
* Polishing
* Palletizing
* Insertion
* Assembly
* Transporting

Packing List:
* 1 x CR10 Cobot Robot

Packaging Details (CR10):
* Weight: 50kg
