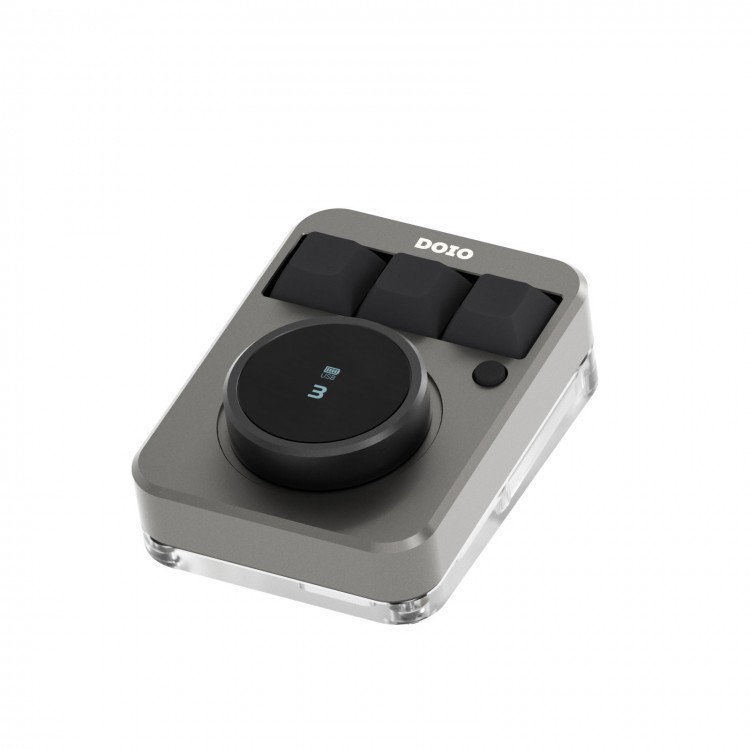

DOIO KB03B-01 3-Key Keyboard Bluetooth Keyboard Small Keyboard (Gray) with Wired & Bluetooth Modes

DOIO KB03B-01 3-Key Keyboard Bluetooth Keyboard Small Keyboard (Gray) with Wired & Bluetooth Modes

Read Before Purchase:
* This product does not come with a Bluetooth adapter. Please purchase separately if needed.
* Pressing the reset button will restart the device but will not reset any preset key values.
* The built-in battery will have a capacity of no less than 900 mAh.
* When charging the device, use a 5V/1A power adapter or a computer USB port.
* The battery percentage on the PC is for reference only and may have a significant error. Please charge the device when the battery indicator shows the last segment.
* Upon receiving the product, please check the appearance and test the functionality. If there are any issues, feel free to contact customer service.
* The product may have minor cosmetic imperfections due to the manufacturing process, which should not be considered a quality issue.
* Due to differences in display settings across brands, color discrepancies may occur. The actual product should be considered as the reference.

Features:
KB03B-01 3-Key Bluetooth Mechanical Keyboard
* Dual-Mode Keyboard: Wired + Bluetooth connectivity
* Hybrid Materials: Aluminum alloy + acrylic
* Custom Programming: Open-source QMK VIA support
* Hot-Swappable: Easily switch between various switch types
* Control Knob: Programmable and customizable
* Gold-Plated PCB: Immersion gold PCB circuit board
* SMD LEDs: Full-key RGB surface-mount LEDs
* OLED Display: Layer-switching digital screen
* Type-C: Hot-swappable type-c cable
* CNC Machining: Precision CNC-crafted case

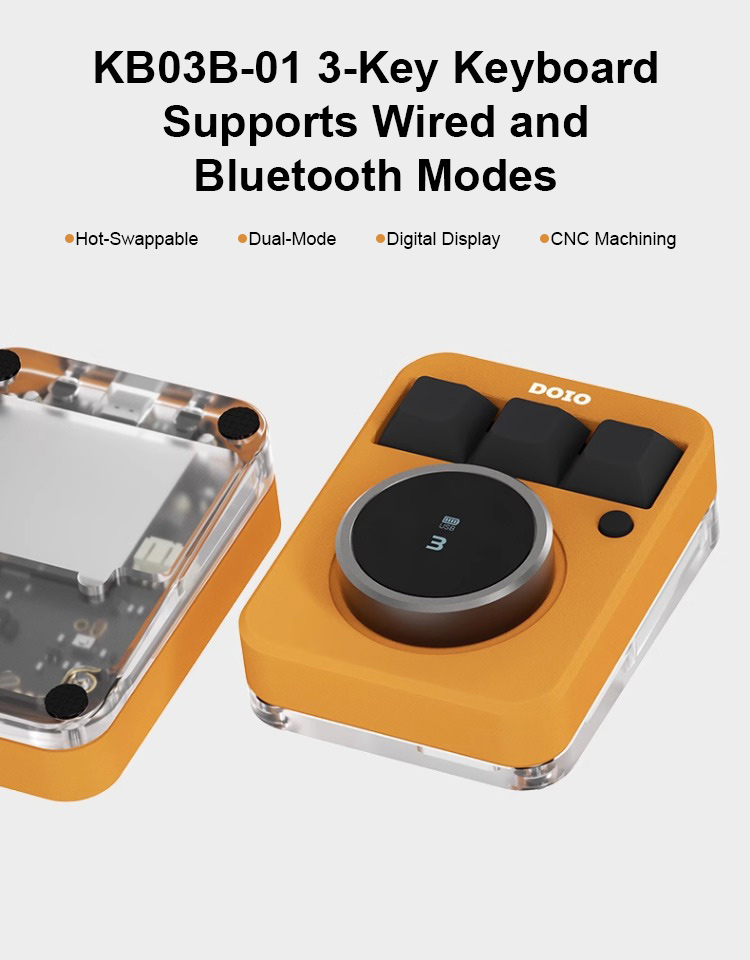

Small Keyboard Supports Wired and Bluetooth Modes
* This keyboard supports both wired and Bluetooth connection modes. When wired, it uses a type-c hot-swappable connection. When wireless, it operates on low-power Bluetooth 5.0.

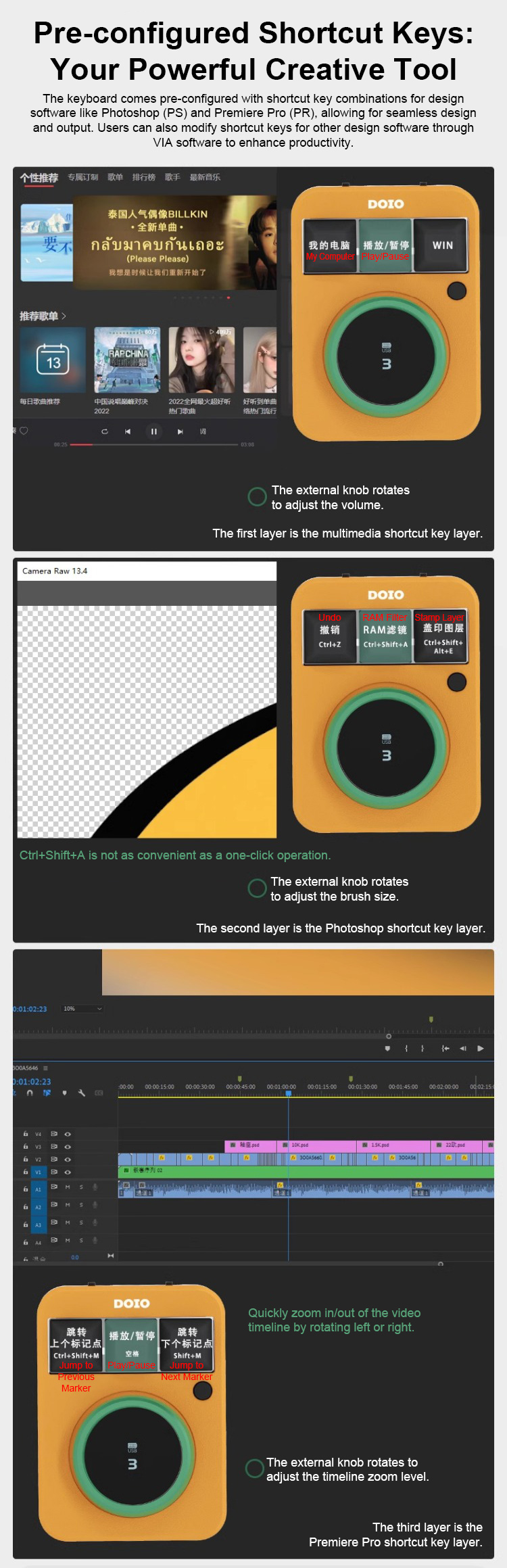

Pre-configured Shortcut Keys: Your Powerful Creative Tool
* The keyboard comes pre-configured with shortcut key combinations for design software like Photoshop (PS) and Premiere Pro (PR), allowing for seamless design and output. Users can also modify shortcut keys for other design software through VIA software to enhance productivity.

Compatible with Various Software
* Factory-preset Photoshop/Premiere Pro shortcut keys

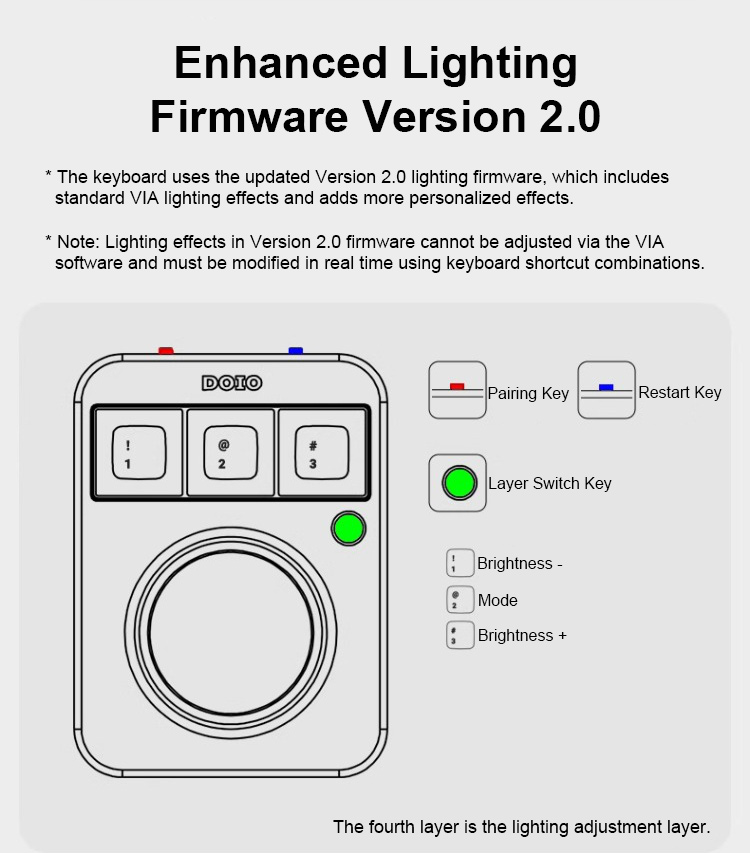

Enhanced Lighting Firmware Version 2.0
* The keyboard uses the updated Version 2.0 lighting firmware, which includes standard VIA lighting effects and adds more personalized effects.
* Note: Lighting effects in Version 2.0 firmware cannot be adjusted via the VIA software and must be modified in real time using keyboard shortcut combinations.

QMK Open-Source Firmware & VIA Configuration
* Based on the QMK open-source software architecture, various keyboard functions can be configured through VIA software, allowing users to modify key mappings. This greatly improves software usage efficiency, with options to set multiple layers, macros, and other custom configurations.
* The settings will be stored in the keyboard's hardware system, so they remain unaffected when switching computers.
* Note: VIA configuration must be done in wired mode.

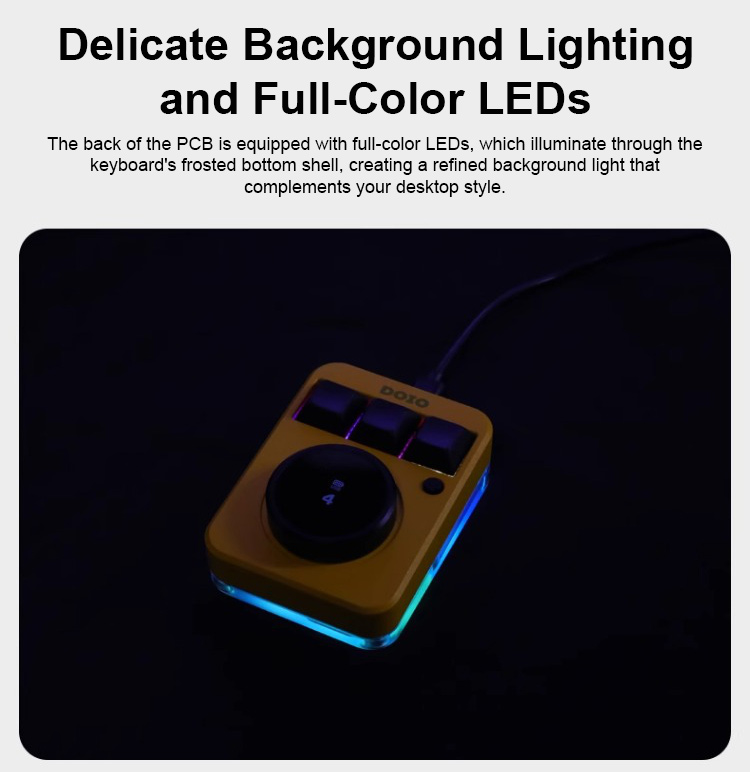

Delicate Background Lighting and Full-Color LEDs
* The back of the PCB is equipped with full-color LEDs, which illuminate through the keyboard's frosted bottom shell, creating a refined background light that complements your desktop style.

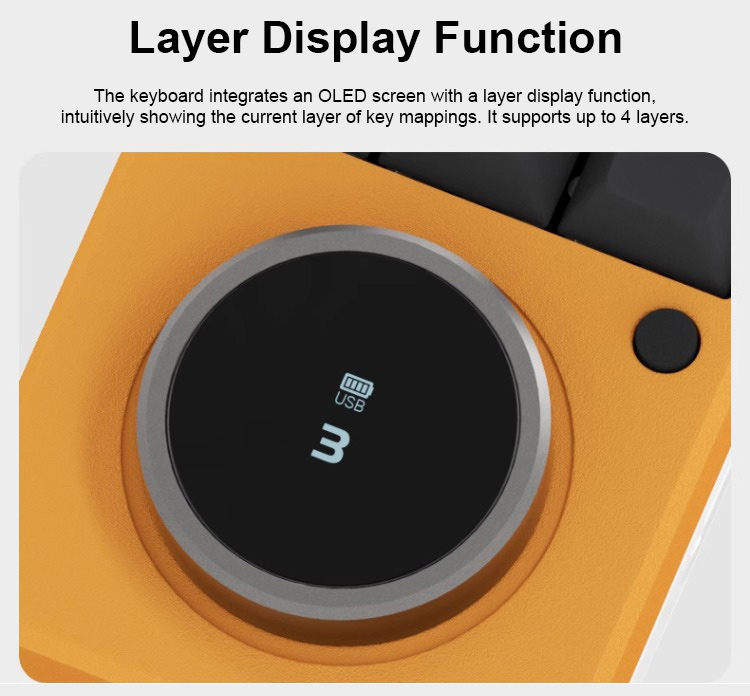

Layer Display Function
* The keyboard integrates an OLED screen with a layer display function, intuitively showing the current layer of key mappings. It supports up to 4 layers.

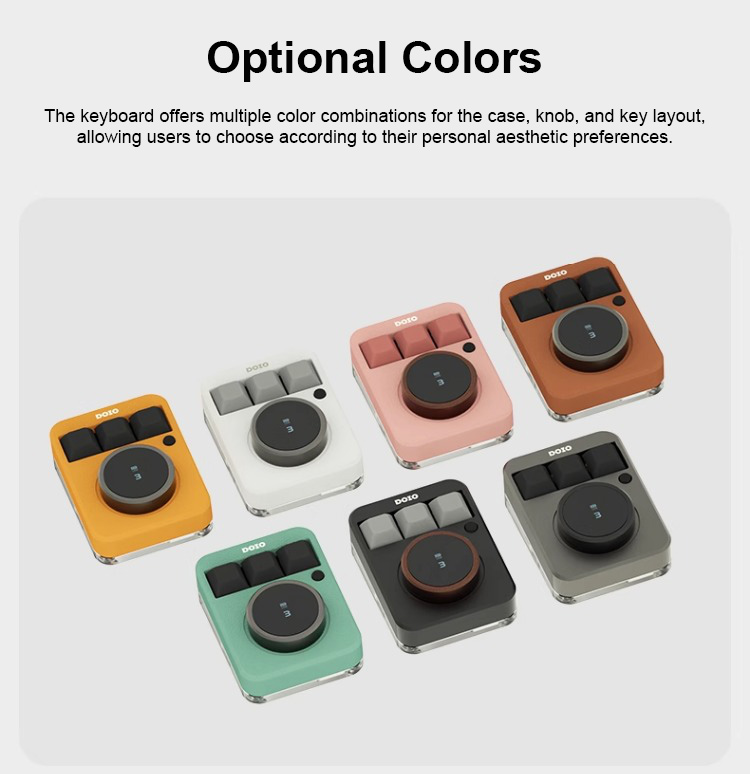

Optional Colors
* The keyboard offers multiple color combinations for the case, knob, and key layout, allowing users to choose according to their personal aesthetic preferences.

CNC Full-Aluminum Top Shell
* The keyboard's body is made of 6063 aluminum alloy and processed through over 20 steps, including CNC milling, sandblasting, color electrophoresis/painting/anodizing, and coloring.

The Charm of Light Customization
* The light-customizable keyboard offers players vast playability and lowers the technical barrier. With a hot-swappable PCB design, players no longer need to solder mechanical switches. By swapping different types, actuation forces, and appearances of switches, along with various keycap heights, each modification brings a fresh new experience.

Gateron G Yellow Pro Switches
* The keyboard comes with Gateron G Yellow Pro linear switches, featuring a total travel of 4.0mm, an actuation distance of 2.0mm, and an actuation force of 50gf. Both new and experienced users can easily adapt to these switches.

Full RGB SMD Gold-Plated PCB
* The mainboard and positioning plate are made of FR4 gold-plated fiberglass PCB. It features full-key hot-swappable switch sockets, reverse-mounted 3528 RGB full-color LEDs, and enhanced lighting effects when paired with translucent keycaps.

XDA Keycaps
* The keyboard uses 3 sets of XDA-height spherical keycaps. The height is moderate, providing flexible and comfortable control.

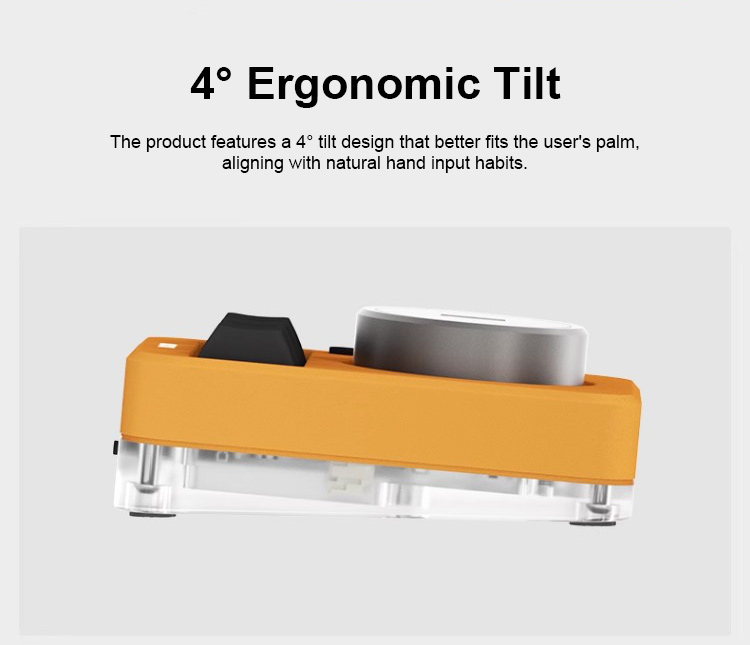

4° Ergonomic Tilt
* The product features a 4° tilt design that better fits the user's palm, aligning with natural hand input habits.

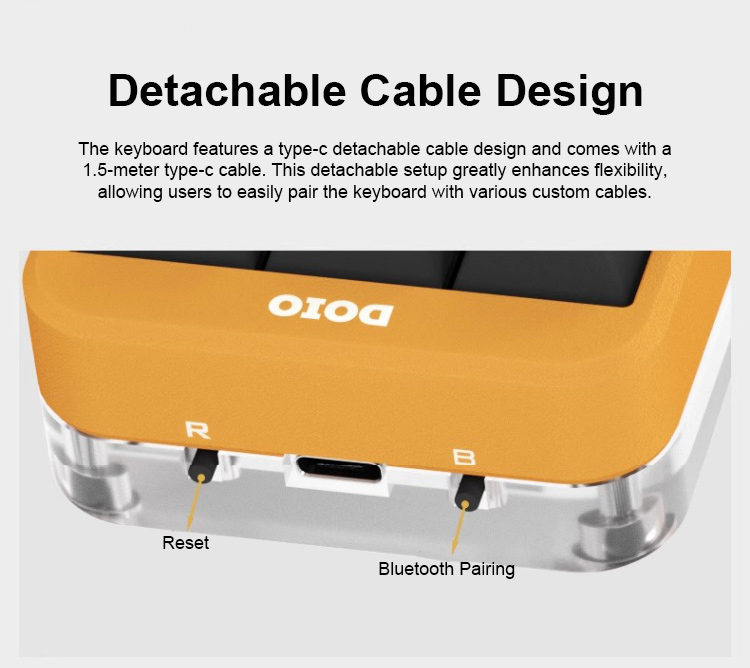

Detachable Cable Design
* The keyboard features a type-c detachable cable design and comes with a 1.5-meter type-c cable. This detachable setup greatly enhances flexibility, allowing users to easily pair the keyboard with various custom cables.

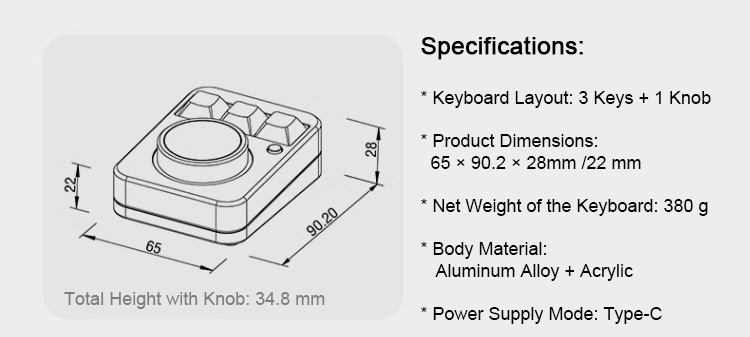

Product Specifications:
* Keyboard Layout: 3 Keys + 1 Knob
* Product Dimensions: 65 × 90.2 × 28mm /22 mm
* Total Height with Knob: 34.8 mm
* Net Weight of the Keyboard: 380 g
* Body Material: Aluminum Alloy + Acrylic
* Power Supply Mode: Type-C

Packing List:
* 1 x Keyboard
* 1 x 1.5-meter Type-C Cable

Packaging Details:
* G.W.: 0.55kg
