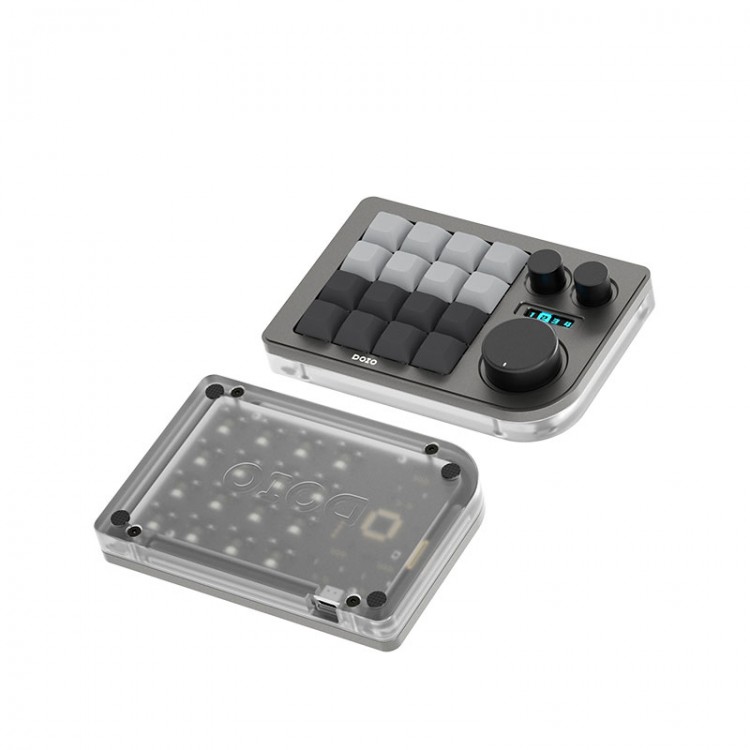

DOIO KB16-01 16-Key Keyboard Small Keyboard Wired Keyboard (Gray & Anodized Coloring) with 3 Knobs

DOIO KB16-01 16-Key Keyboard Small Keyboard Wired Keyboard (Gray & Anodized Coloring) with 3 Knobs

Features:
KB16-01 16-Key Programmable Mechanical Keyboard
* Hot-Swappable
* Digital Display Screen
* CNC Machined
* Composite Materials: Aluminum Alloy + Acrylic
* Integrated 0.91" OLED Screen
* Custom Programming: QMK & VIA Open-Source Support
* Hot-Swappable Switch Sockets
* Three Programmable Rotary Knobs
* Gold-Plated PCB Circuit Board
* Full-Key RGB SMD LEDs
* XDA-Profile Spherical Keycaps
* Hot-Swappable Type-C Cable

Layer Display Function
* The keyboard is equipped with an OLED screen that displays the current layer in use, allowing users to see their active layer more intuitively. Up to 4 layers are supported.

QMK Open-Source Firmware & VIA Configuration
* Built on the QMK open-source software architecture, the keyboard supports a wide range of customizable functions via VIA software. Users can modify key mappings, set multiple layers, program macros, and more—greatly enhancing software efficiency.
* All configured settings are stored in the keyboard's internal hardware system, ensuring that your configurations remain intact even after switching to a different computer.

Enhanced Lighting Firmware Version 2.0
* The keyboard uses the updated Version 2.0 lighting firmware, which includes standard VIA lighting effects and adds more personalized effects.
* Note: Lighting effects in Version 2.0 firmware cannot be adjusted via the VIA software and must be modified in real time using keyboard shortcut combinations.

CNC Full Aluminum Top Case
* It is not just an industrial product, but a work of art. The keyboard's top case is made of 6063 aluminum alloy, processed through over 20 steps including CNC milling, sandblasting, colored electrophoresis/coating/anodizing.

CNC Acrylic Bottom Case
* The main body is crafted from a single block of transparent acrylic through CNC milling, sandblasting, and multiple other processes, achieving a semi-translucent soft light diffusion effect.

Gasket Structure
* Using 3mm thin Poron foam, we've reduced the unnecessary downward compression during use, preventing excessive movement at the circuit and interface areas, thus improving the product's stability and extending its lifespan.

Gateron G Yellow PRO Switches
* The keyboard comes equipped with Gateron G Yellow PRO linear switches by default. These switches offer a total travel of 4.0mm, an actuation travel of 2.0mm, and an operating force of 50gf, making them suitable and easy to use for both beginners and experienced users.

Solid Aluminum Alloy Knobs
* The keyboard knobs are crafted from solid aluminum alloy through multiple CNC machining processes. The all-metal construction gives the knobs a premium texture and robust feel.

Gold-Plated PCB Circuit Board
* Both the mainboard and positioning plate are made from FR4 gold-plated fiberglass PCB. The keyboard is powered by a MEGA32U4 microcontroller chip and features hot-swappable switch sockets for all keys.

Full-Key RGB SMD LEDs
* The PCB features SMT-mounted 3528 full-color RGB LEDs for every key. When paired with translucent mechanical switches and keycaps, the lighting effects are greatly enhanced.

XDA Profile Keycaps
* The keyboard uses 16 spherical keycaps in the XDA profile. Their medium height and uniform shape offer responsive and comfortable control.

Detachable Cable Design
* The keyboard features a type-c detachable cable design and comes with a 1.5-meter type-c cable. This detachable setup greatly enhances flexibility, allowing users to easily pair the keyboard with various custom cables.

Optional Colors
* The keyboard offers multiple color combinations for the case, knob, and key layout, allowing users to choose according to their personal aesthetic preferences.

Specifications:
* Keyboard Layout: 16 keys + 3 knobs
* Product Dimensions: 142.5 × 96.2 × 32.9 mm
* Net Weight of Keyboard: 320 g
* Material: Aluminum Alloy + Acrylic
* Power Supply Mode: Type-C

Attention:
* Please inspect the appearance and test the functionality of the product upon receipt. If there are any issues, feel free to contact customer service.
* Minor cosmetic imperfections may occur during the manufacturing process and do not constitute a quality defect.
* Due to differences in display effects across various monitor brands, slight color discrepancies may occur. Please refer to the actual product for accuracy.

Packing List:
* 1 x Keyboard
* 1 x 1.5-meter Type-C Cable

Packaging Details:
* G.W.: 0.32kg
