| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $965.88 | $946.17 | $916.60 | $877.18 | Contact US |
DPO7504E 4-Channel 500MHz Multifunctional Digital Oscilloscope 25MHz 1CH Waveform Generator 16CH Logic Analyzer
$1,566.64
DPO7354E 4-Channel 350MHz Multifunctional Digital Oscilloscope 25MHz 1CH Waveform Generator 16CH Logic Analyzer
$1,352.87
DPO7204E 4-Channel 200MHz Multifunctional Digital Oscilloscope 25MHz 1CH Waveform Generator 16CH Logic Analyzer
$1,245.99

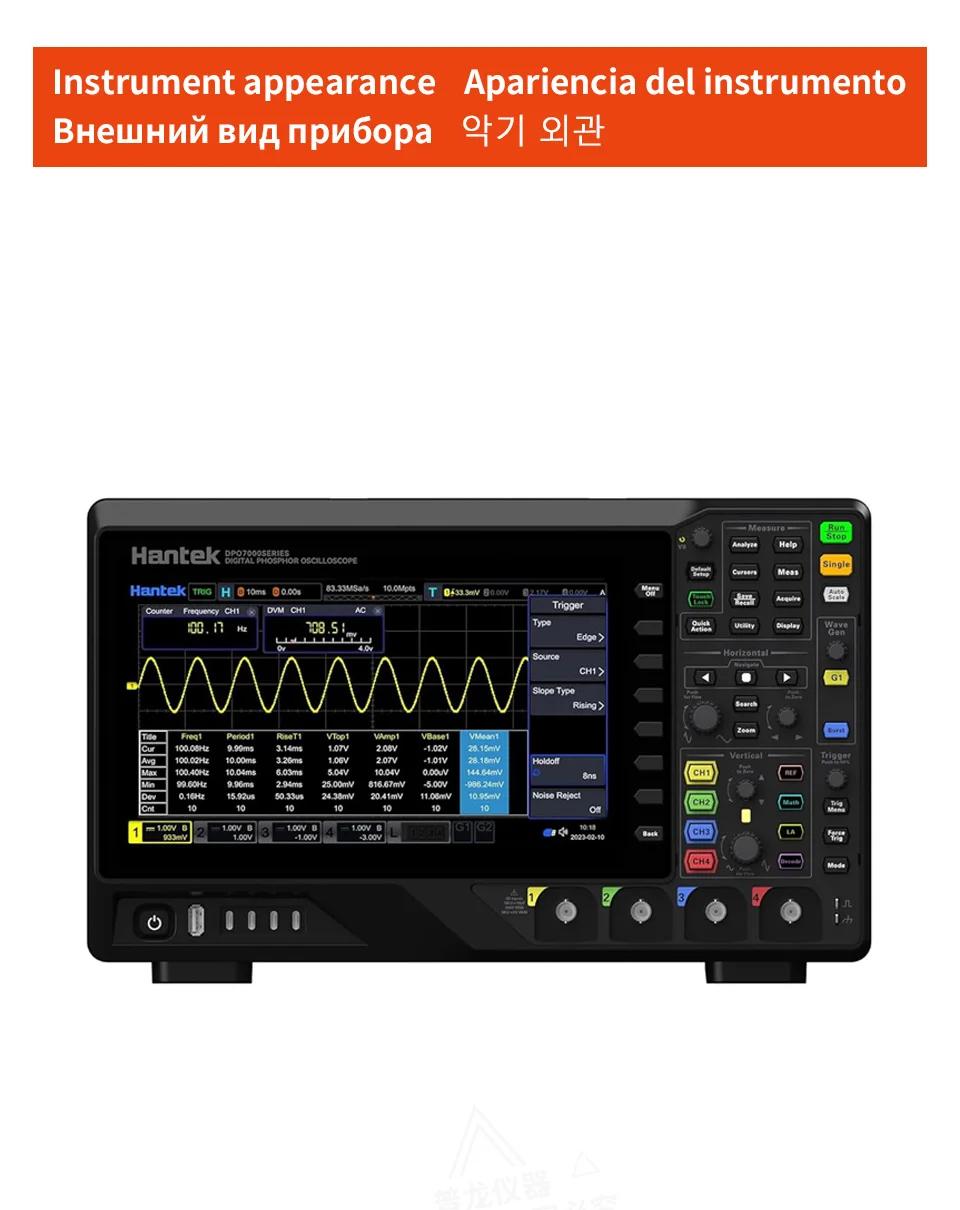

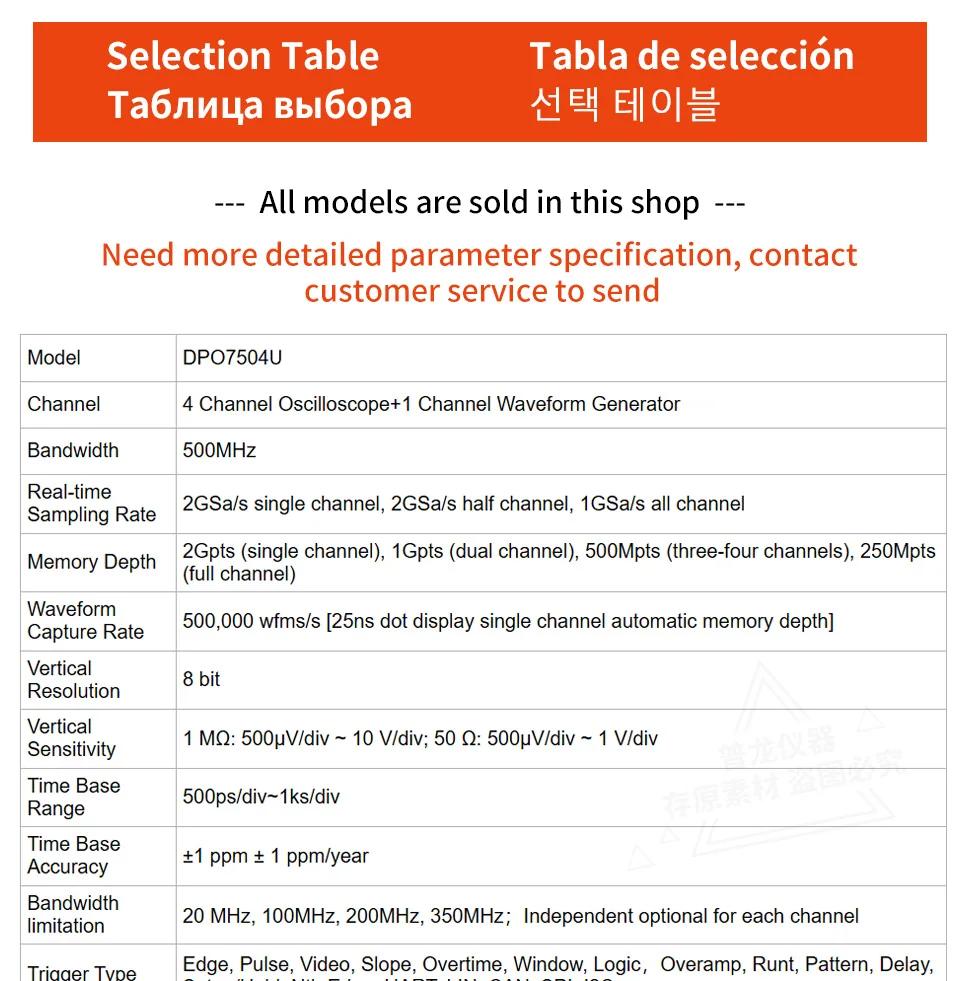

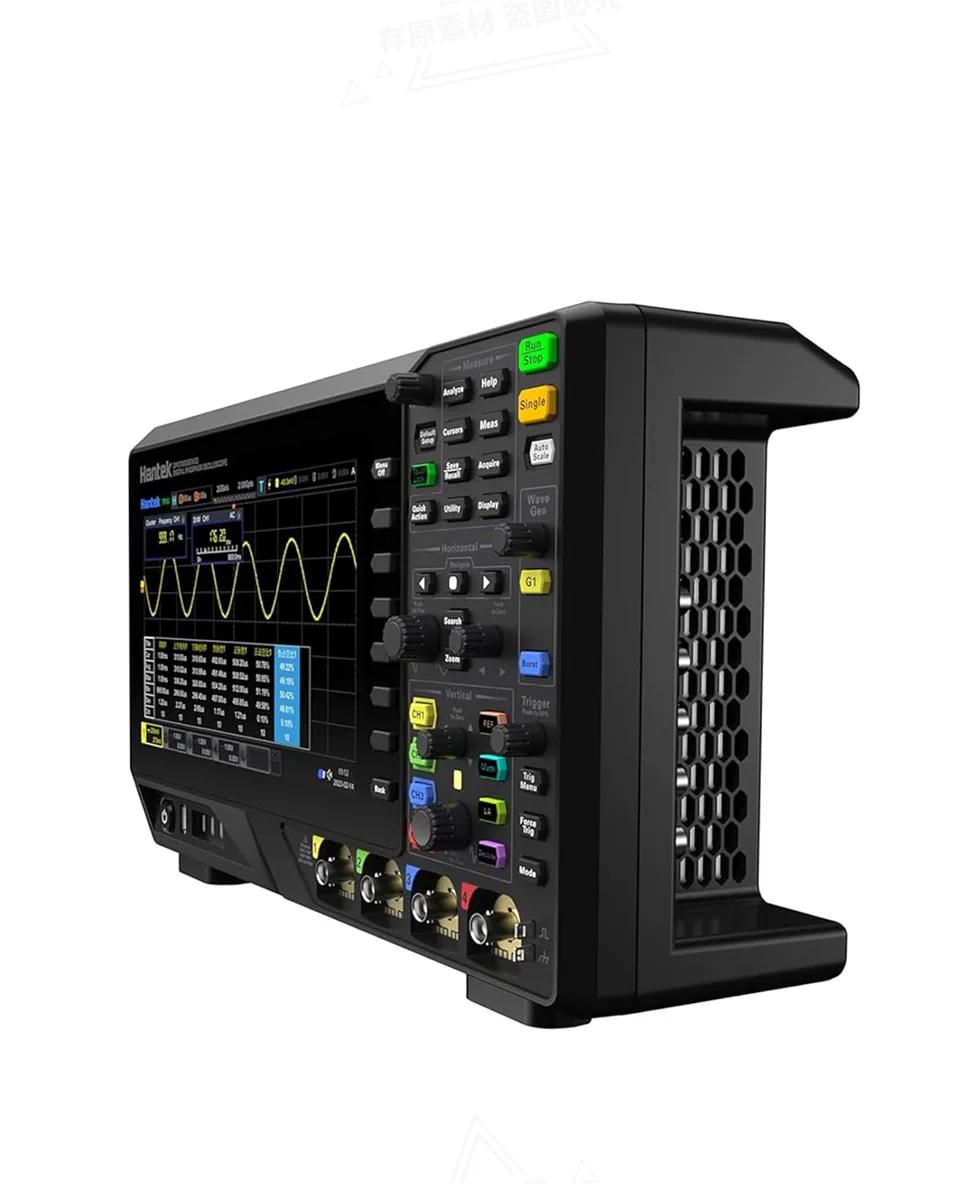

DPO7504U 500MHz 2GSa/s 4-Channel 5-IN-1 Multifunctional Digital Oscilloscope Signal Source with 10.1-inch Touch Screen

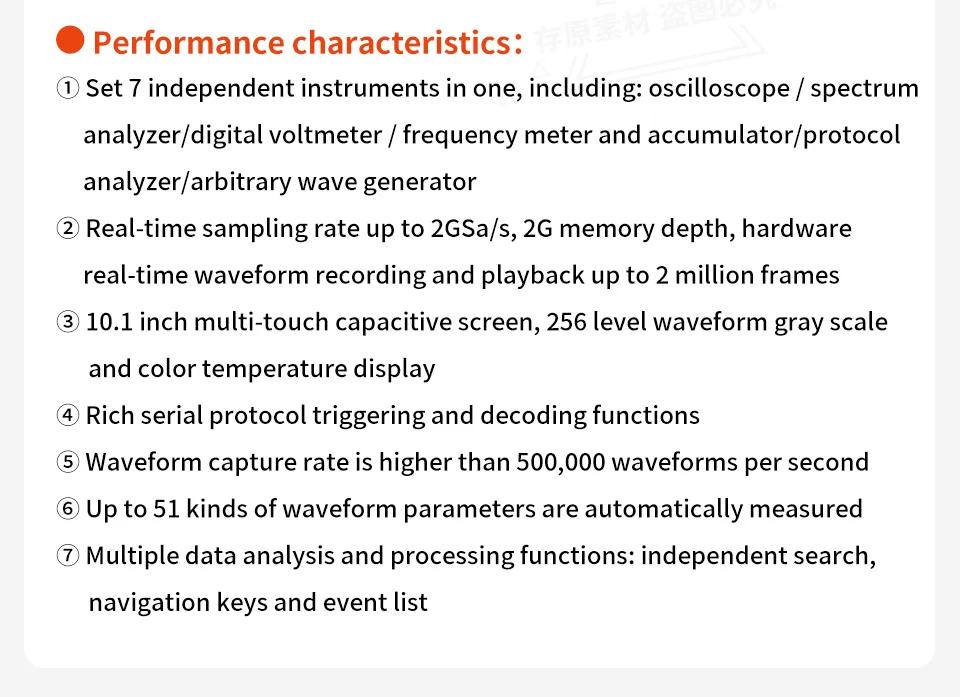

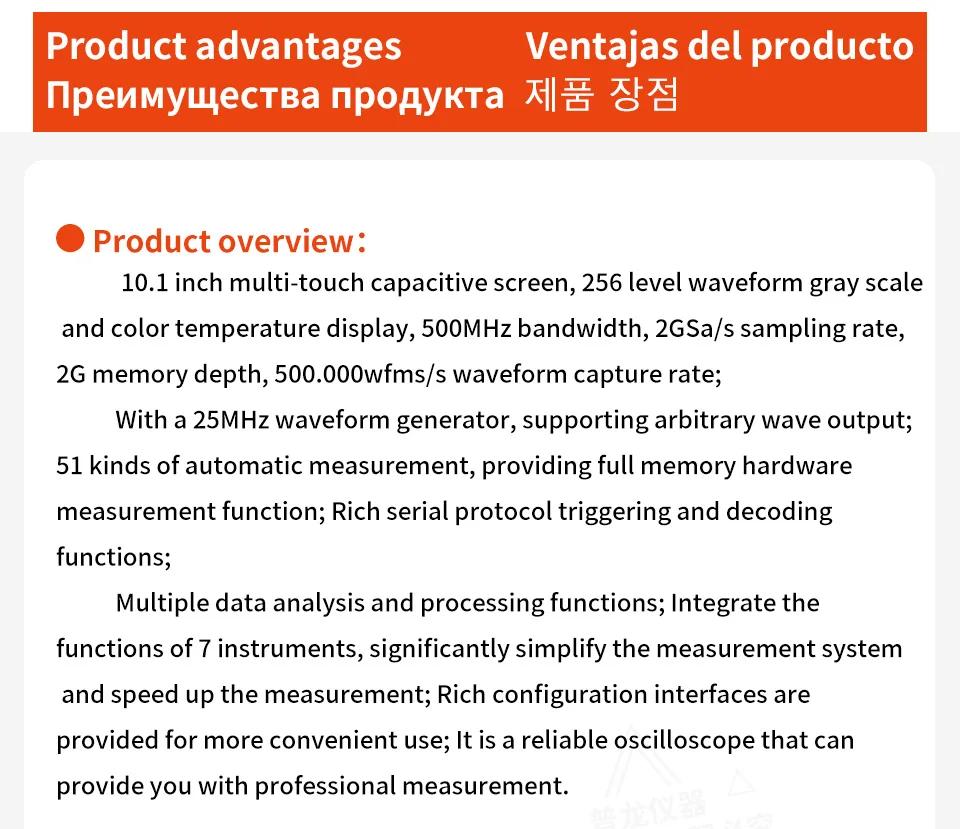

Features:
- Integrating 5 independent instruments, including oscilloscope/spectrum analyzer/arbitrary wave generator/digital voltmeter/frequency meter and accumulator.

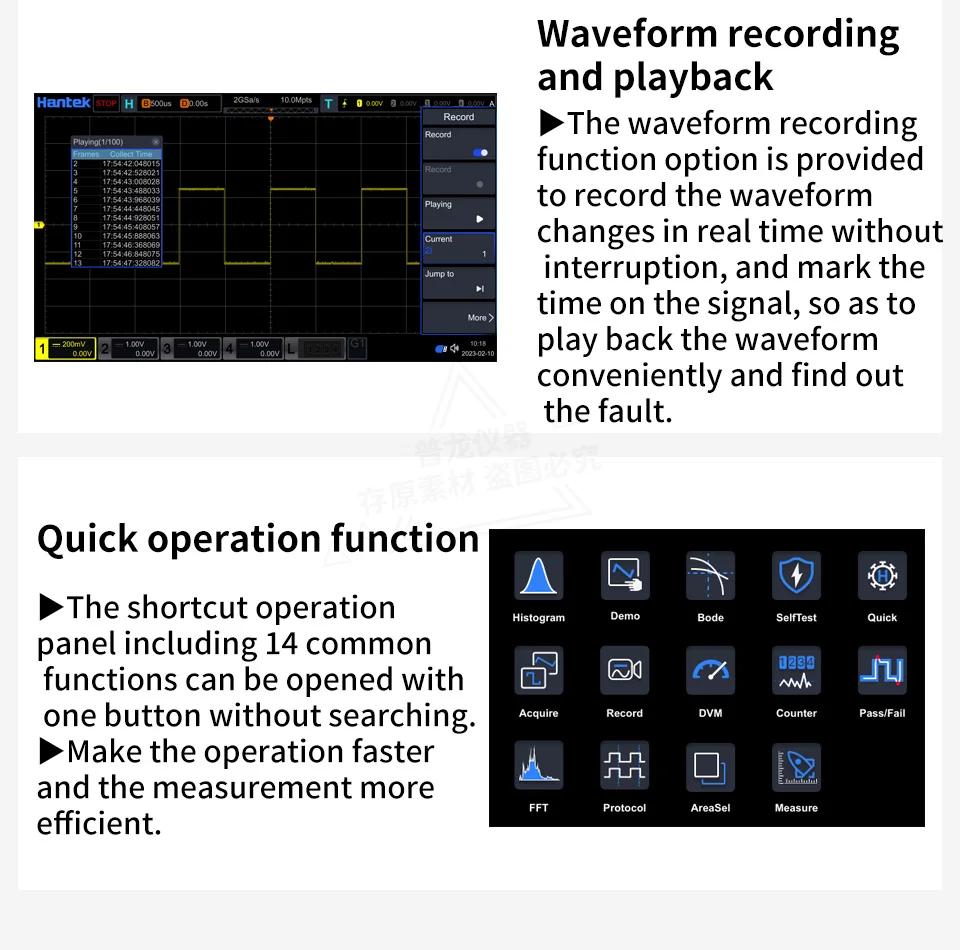

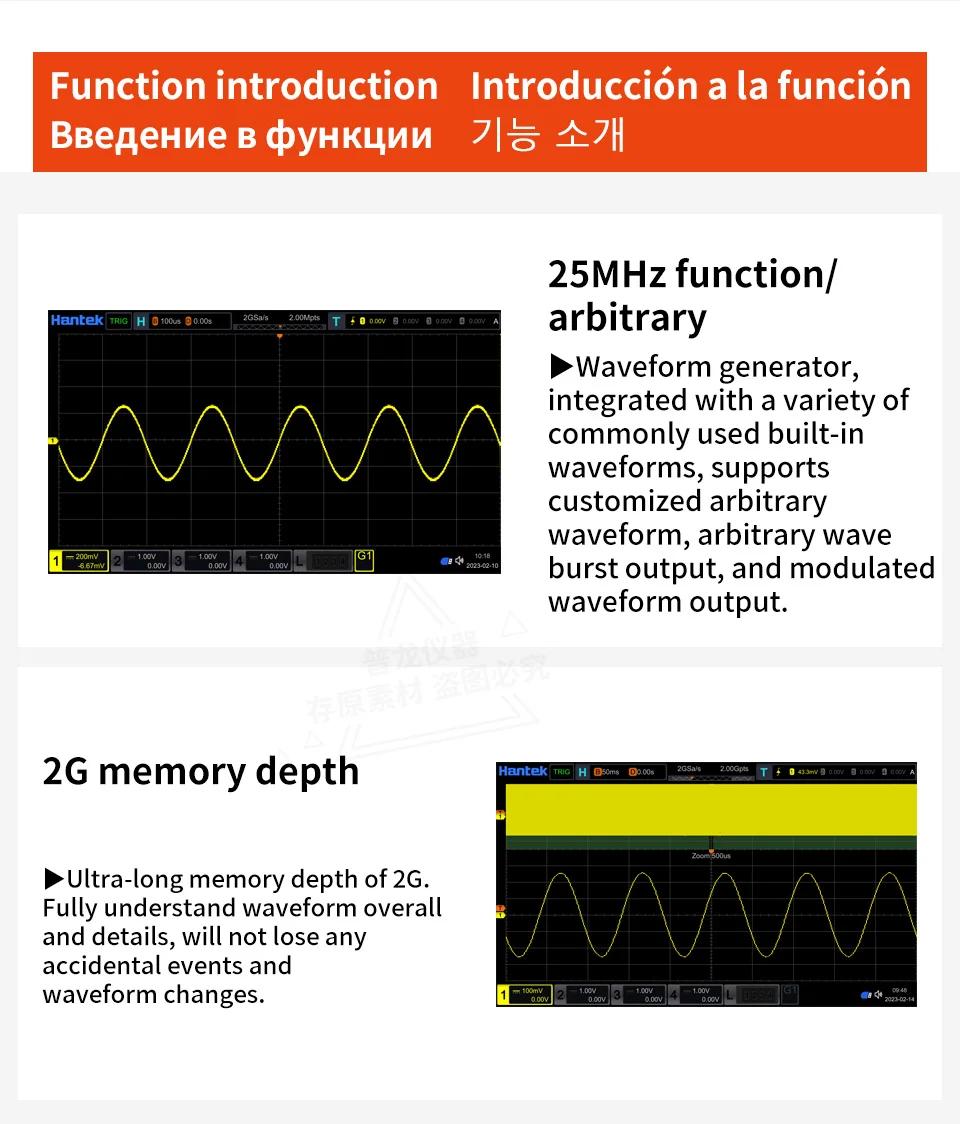

- Real time sampling rate up to 2GSa/s, 2G storage depth, hardware real-time waveform recording and playback up to 2 million frames.
- 10.1-inch multi touch capacitive screen, 256 level waveform grayscale and color temperature display.

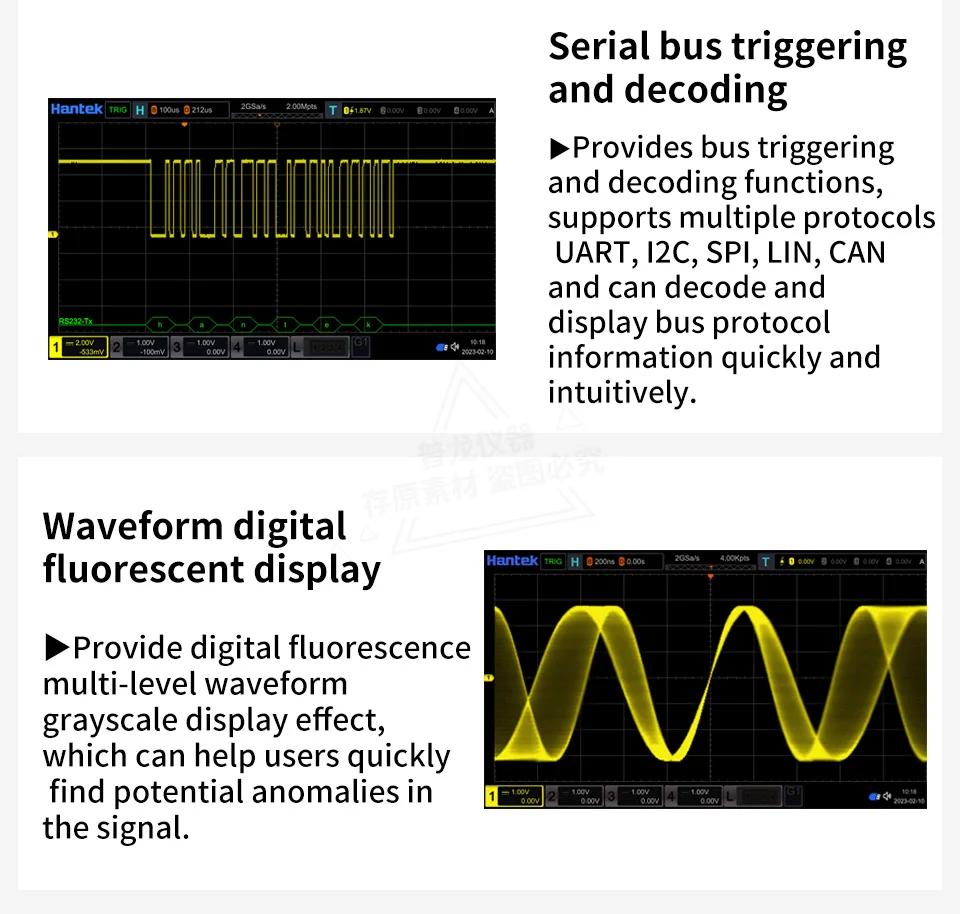

- Rich serial protocol triggering and decoding functions.
- The waveform acquisition rate is higher than 500000 waveforms per second.
- Up to 51 waveform parameters can be automatically measured, and full memory hardware measurement function is also provided.
- Trigger types: edge, pulse width, video, slope, timeout, window, under amplitude, over amplitude, logic, delay, establish hold, Nth edge, code trigger UART, LIN, CAN, SPI, I2C.

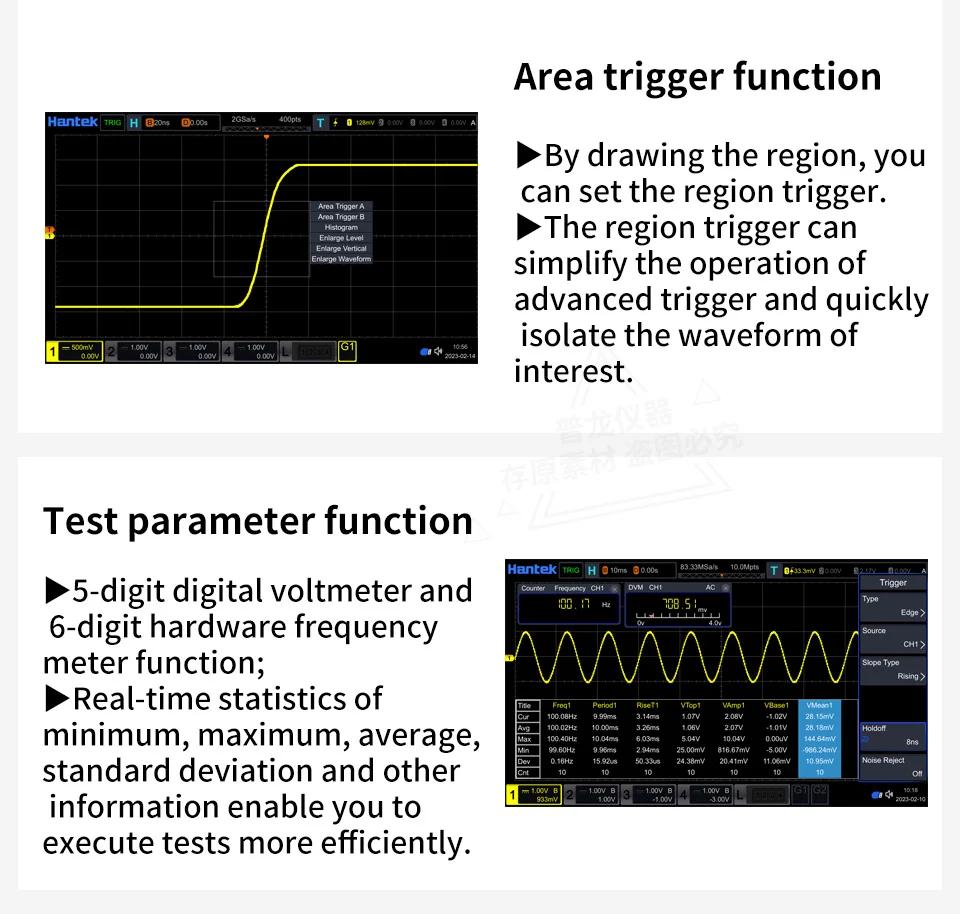

- Analysis functions: frequency meter, digital voltmeter, waveform recording.

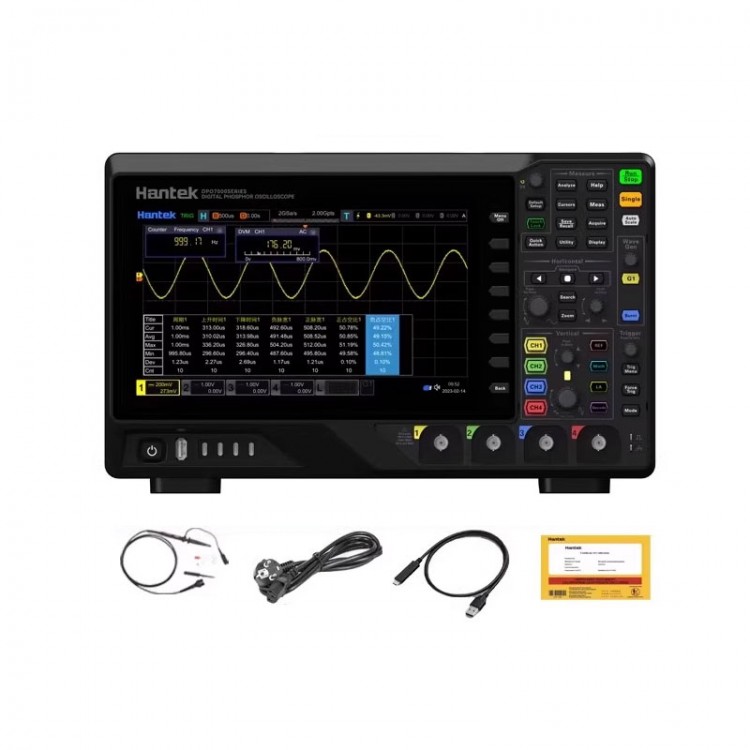

Package Included:
- 1 x Host

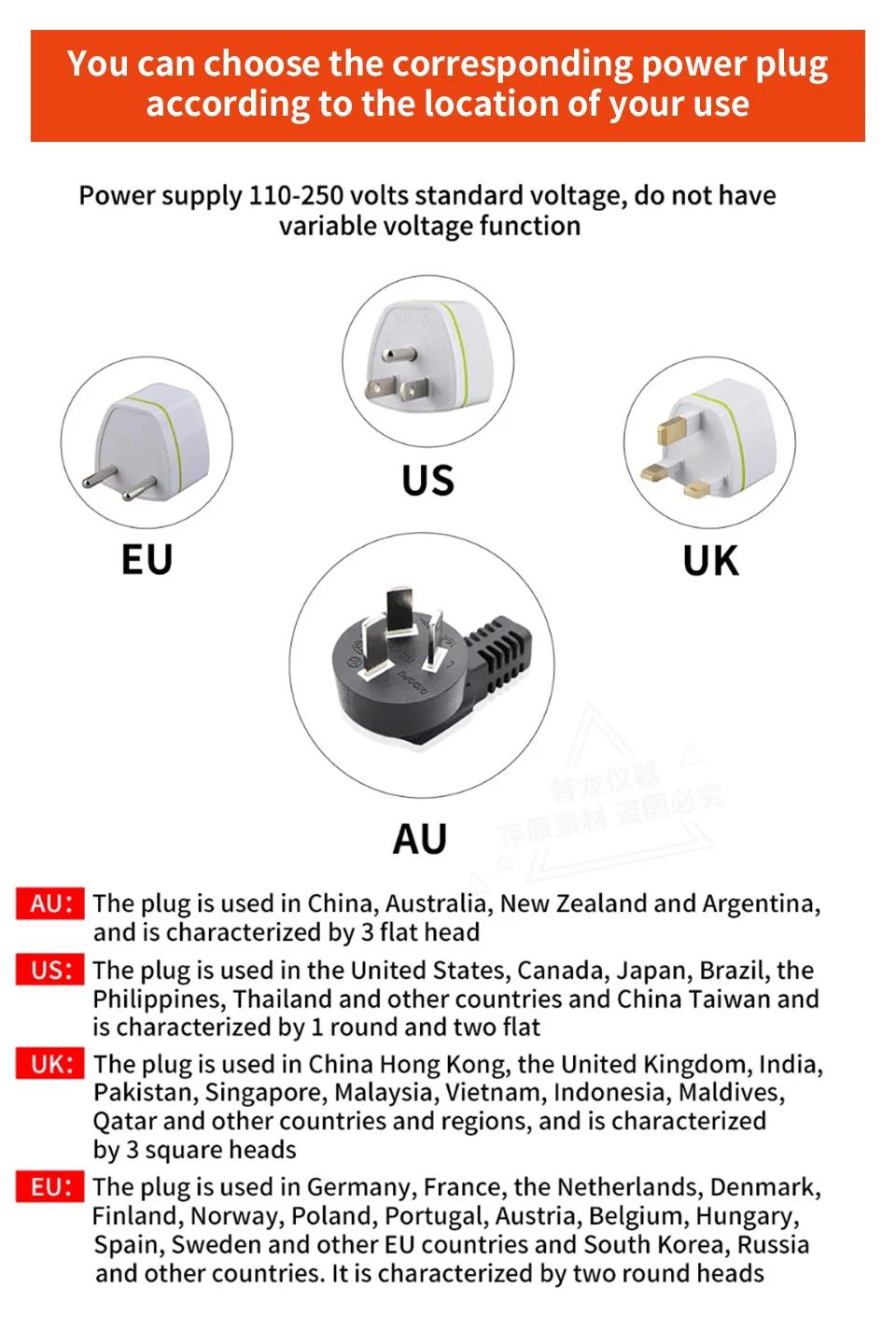

- 1 x Power Cable
- 1 x Type-C Cable
- 4 x Passive Probes
