DRLM20G-02B1PN-K 20mm Compact Electric Linear Actuator with Ground Ball Screw for Oriental Motor

Availability: In stock, usually dispatched in 1 business day

  • Price:$147.61
  • Price in reward points: 1476 Reward Points: 15
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $144.66 $141.71 $137.28 $131.37 Contact US
Quantity:

DRLM20G-02B1PN-K 20mm Compact Electric Linear Actuator with Ground Ball Screw for Oriental Motor

Description:

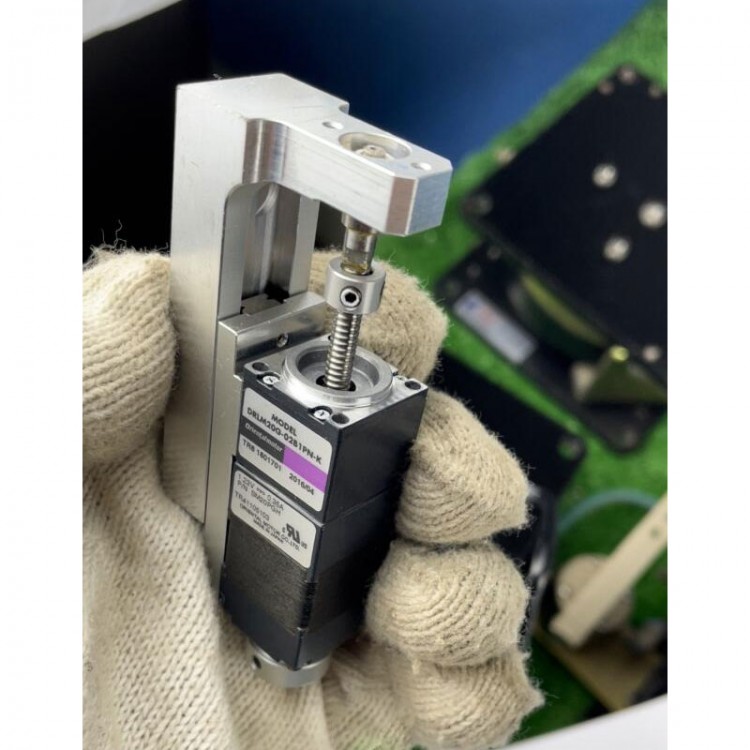

DRLM20G-02B1PN-K is a compact linear actuator that incorporates a stepper motor with an integrated ball screw to achieve high-precision positioning linear motion. Performance is improved by reducing the number of components such as couplings and secondary external guides to make equipment more compact, quicker to install with less parts to order.

Features:

* Low Vibration
* High Positioning Accuracy
* Reliable Design and Structure

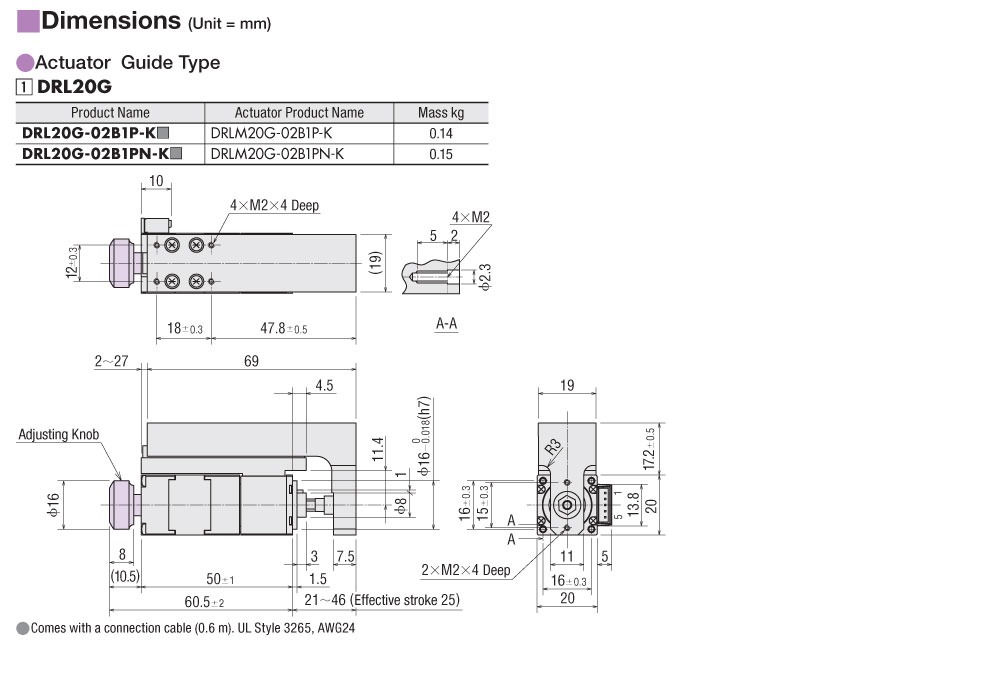

Specifications:
* Motor Type: 5-Phase
* Actuator Frame Size: 20 mm
* Drive Method: Ground Ball Screw
* Type: Standard
* Guide: Equipped
* Electromagnetic Brake: Not Equipped
* Adjusting Knob: Equipped
* Lead: 1 mm
* Stroke: 25 mm
* Actuator Connection Type: Connector
* Lead Wires: 5
* Max. Vertical Transportable Mass: 1 kg
* Max. Horizontal Transportable Mass: 0.5 kg
* Max. Speed: 20 mm/s
* Max. Thrust Force: 15 N
* Max. Holding Force: 15 N
* Resolution: 0.1 μm (0.0001 mm)
* RoHS Compliant: These products do not contain substances that exceed the regulation values in the RoHS Directive.
* Insulation Resistance: 100 MΩ or more when 500 VDC megger is applied between the motor windings and case.
* Dielectric Strength: Sufficient to withstand 0.5 kV at 50 Hz or 60 Hz applied between the motor windings and case for 1 minute.
* Ambient Temperature Range: 32ºF ~ 104ºF (0ºC ~ 40ºC) (nonfreezing)
* Ambient Humidity: 85% or less (non-condensing)

Packing List:
* 1 x Linear Actuator

Packaging Details:
* G.W.: 1.05kg
