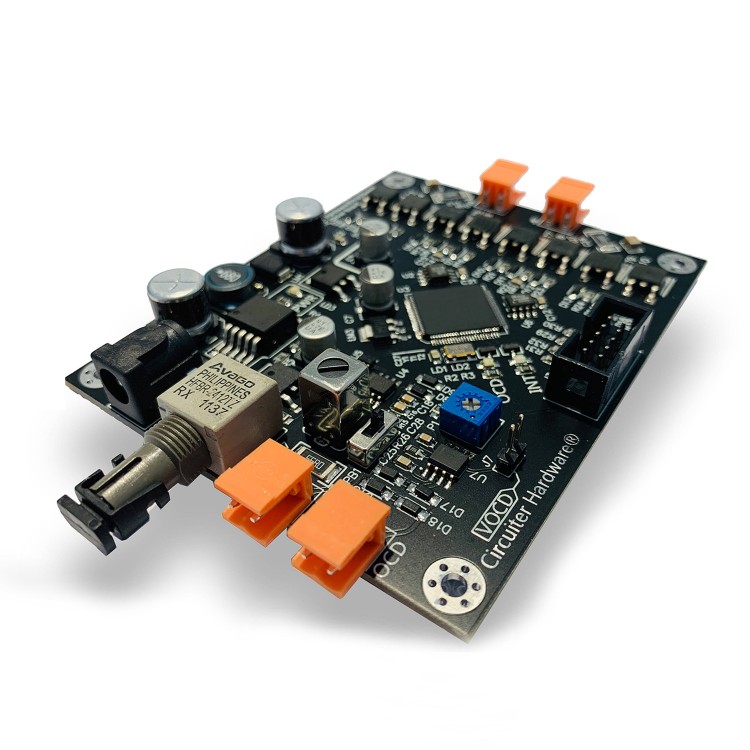

DRSSTC Driver Board High Driving Force For Tesla Coil Driver Support Optic Fiber Splice HFBR-2412
Features:
- DRSSTC driver board
- High driving ability
- High-speed push-pull amplification
- Phase shift, input 12V DC
Test Data:
- Bus input=DC 300V, OCD=1200A, frequency=53KHz, full bridge FF1200R17KE3_B2
- Excitation frequency: 300KHz; Drive voltage: +16.8V to -15.2V; Rise time (p~p): 560ns; Fall time (p~p): 200ns
- Excitation frequency: 300KHz; Drive voltage: +16.8V to -15.6V; Rise time (p~p): 600ns; Fall time (p~p): 240ns
- Bus input=DC 200V, OCD=200A, frequency=113KHz, full bridge SKM300GB123DH6
- High driving force DRSSTC driver board can easily drive IGBT module at 100KHz, and the driving waveform can still be maintained without distortion
Package Included:
- 1 x DRSSTC Driver Board
Note:
- Some used original parts are used in this product to ensure performance. Please make sure that you don't mind before purchasing. Thank you!
