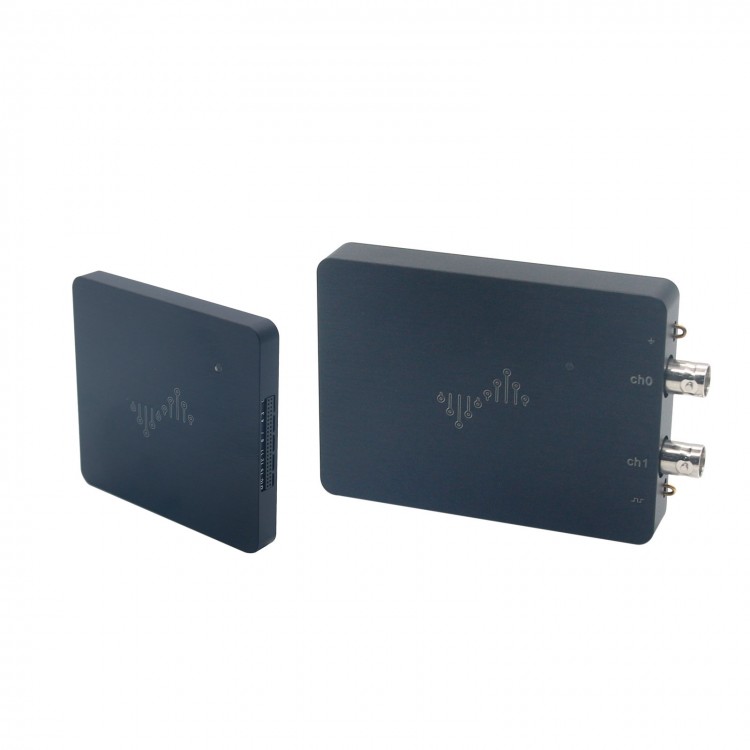

DSLogic USB Logic Analyzer 16G Depth 16CH 100M Sampling Rate Basic Version + Powerful Oscilloscope

Features:

- Full signal links not designed via holes
- Impedance matched to reduce high frequency reflections and avoid false sampling
- Can collect and observe digital signals up to 100MHz
- Over-voltage and ESD protection prolong its service life
- Supports Double Modes: For stream mode, it enables USB real-time transmission to PC, featuring ultra large sampling depth. For buffer mode, it provides large bandwidth hardware memory at ultra high sampling rate.
- Adjustable Threshold Value: It is compatible with various voltage standards such as 1.2V, 1.8V, 2.5V, 3.3V & 5.0V. It adjusts to avoid interference zone.
- All Metal Shell: It features 360° noise shielding, & quick heat dissipation which makes circuit operate stably.
- USB Type-C Interface: Arbitrary insertion enables long service life. Over-voltage, over-current and ESD protection help avoid damage.
- Support 16G Max. Depth:
  It can collect 160-second wave form at 100M sampling rate;
  It can collect 13-minute wave form at 20M sampling rate;
  It can collect 4-hour wave form at 1M sampling rate.
- Fits for Windows System: Suitable for xp/vista/win7/win8/win10. It fits for original driver of micro software. It supports genuine digital signature. It enables stable and reliable data transmission.
- Multi-layer protocol analysis makes data more intuitive and easier to view
- Open Source Protocols: It supports for 64 protocols, including I2C, UART, SPI, CAN, PWM, 1-WIRE, I2S, JTAG, SWD, IR_NEC, MDIO, SD_CARD (SD MODE), USB Signalling, EEPROM, SPI_FLASH, JTAG_STM32, ARV_ISP, nRF24L01, RGB_LED, SD_CARD (SPI MODE), RTC, MODBUS & USB PACKET.
- Support configuration and data saving for loading from a file.
- Support data export in csv, vcd, gnuplot and other formats.
- Support protocol parsing to export text files.
- Support protocol content search.
- Any cursor is inserted into the edge and automatically adsorbed.
- Mouse Measurement: width, period, frequency, duty cycle.
- Interval Measurement: 16 groups can be added arbitrarily.
- Edge Statistics: 16 groups can be added arbitrarily.

Specifications of DSLogic 100M Basic Version:
- Modes: Stream + Buffer (Buffer Mode: 100M@16 Channels)
- Max. Sampling Rate: Stream Mode: 100M@3 Channels; 50M@6 Channels; 25M@12 Channels; 20M@16 Channels
- Max. Depth: 16G@Stream; 64M@Buffer
- Hardware Memory: 64Mbits
- Trigger: Simple Hardware Trigger
- Threshold Value: 0-5V Adjustable
- Voltage Range: ±30V
- Input Impedance: 250K||7pF
- Position Sampling: Max. 30M
- External Interfaces: Ordinary Dupont; 4 Groups to GND

Package Included:
- 1 x DSLogic Basic Logic Analyzer
- 1 x Type-C Data Cable
- 1 x 4+1 Groups of Flexible Flat Cables
- 1 x Powerful Oscilloscope
