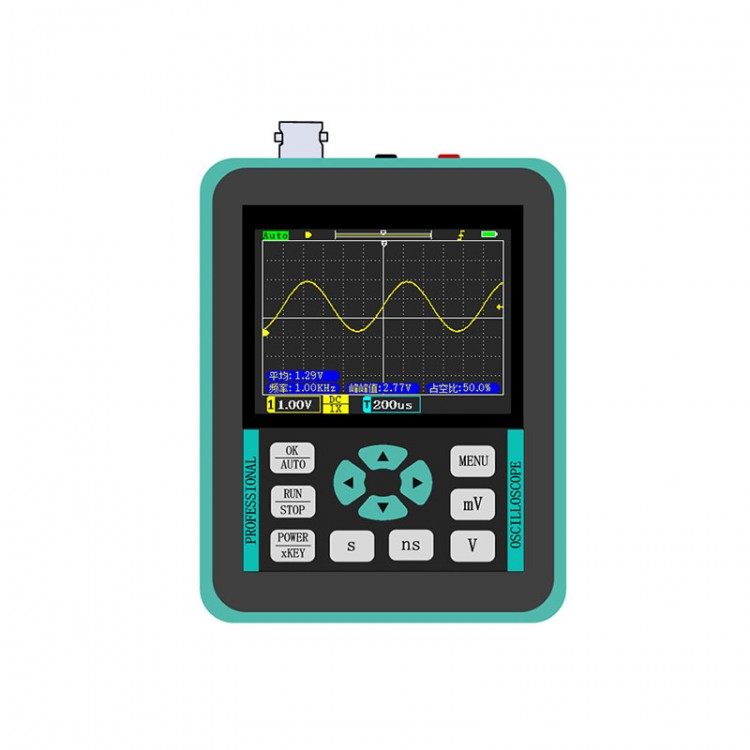

DSO1511E+ Professional Digital Oscilloscope Small Portable Oscilloscope 120M Bandwidth 500M Sampling

DSO1511E+ Professional Digital Oscilloscope Small Portable Oscilloscope 120M Bandwidth 500M Sampling

Advantages:
- 120M bandwidth
- Smart square wave output
- 14 kinds of parameter measurement
- One-key automatic (Auto function)
- Single trigger (Single)
- Waveform analysis function
- 2.4" high-definition color screen
- Waveform export
- FFT spectrum analysis

What is intelligence?
1. A wider field of view. Support the stop mode to drag and expand waveforms, which is convenient for analysis and finding problems.
2. Single trigger. Measure power-on waveform or use it for single sampling observation.
3. One-key automatic, less than 1 second to complete. One key to adapt waveforms to the screen.
4. One-click 50%. Quickly let waveforms and trigger automatically return to the center.
5. Reference waveform. Lock the current waveform on the screen for comparison with other signals.
6. Infinite afterglow. Waveforms do not disappear, and the glitch has nowhere to escape.
7. Save useful waveforms for later viewing.
8. Export waveforms to your computer for FFT spectrum analysis, etc.

Features:
- More powerful, more stable, and higher precision. Adopt the scheme for ARM+FPGA+ADC
- 120M analog bandwidth. Adopting the former Soviet Union analog oscilloscope front-end solution with a bandwidth of up to 120M, it can easily cope with measurement and testing in various fields, such as MCU debugging, car repair, home appliance repair, personal DIY debugging, electronic competition, power supply debugging, and inverter. It can also be used as a portable tool for outdoor on-site debugging
- Precision adjustable square wave output. The top of the oscilloscope can output an adjustable square wave with 3V amplitude, the frequency adjustment range is 0~2MHz, the accuracy is as high as 0.1Hz. The duty cycle adjustment range is 1%~99%. It can be used to calibrate new probes, drive mos tubes, replace crystal oscillators (test crystal oscillators), etc. It can also be used for novices to assist in learning to use oscilloscopes, saving the cost of buying expensive signal generators
- Cursor measurement. For some special signals such as non-periodic signals, noisy signals, or narrow pulses, automatic measurement cannot meet the measurement requirements. At this time, you need to manually adjust the cursor to measure
- FFT spectrum analysis. This machine uses the Radix-4 butterfly algorithm, which is N times faster than the traditional Radix-2 algorithm. Support logarithmic, linear and music spectrum display mode
- Lock and save reference waveform. The reference waveform is locked with one key, and the current waveform is locked on the screen for display. Normally refreshed waveforms are not affected. Reference waveforms are useful for single-channel oscilloscopes. For example, when you want to compare the driving waveforms of two mos tubes, you can measure the waveform of one mos tube first, lock the waveform on the screen, and then move the probe to measure the other mos tube, so that the two driving waveforms can be displayed on the screen at the same time for comparison
- Rich trigger function. Support automatic trigger (Auto), normal trigger (Normal) and single trigger (Single). Automatic triggering can update the waveform in real time without triggering. The normal trigger must have a waveform trigger to update the waveform. Single trigger samples a frame of waveform after pressing the button and automatically stops
- Waveform save/preview. One-key to save the screen waveform, enter the waveform preview page, click the thumbnail to observe the full screen, and up to 250 waveforms can be saved. Users can delete unwanted waveforms
- Waveform exported to a computer. Through a USB cable connection, the waveforms stored by users can be exported to a computer (up to 50 sheets at a time). Copy the waveform picture to the computer, which can be used as the material of the paper or related copy-writing, or sent to others for analysis and finding problems
- Waveform analysis function. After stopping, you can drag the waveform left and right to find the place you are interested in to expand the observation details and analyze the cause of problems
- Ten-year lifespan. All core and key chips use brand-new imported chips, such as components for Murata from Japan, Lattice from the USA, ADI from the USA, TI from the USA to ensure stable performance during long-term use. Coupled with high-pressure anti-burn protection, ensuring longer lifespan

Applications:
- Automobile diagnosis, maintenance, basic research and development, and electronics

Specifications:
- Model: DSO1511E+
- Number of channels: 1
- Screen size: 2.4"
- Screen resolution: 320*240
- Analog bandwidth: 120M
- Sampling rate: 500M
- Rise time: <3ns
- Storage depth: 128Kbit
- Input impedance: 1MΩ
- Time base range: 5ns-10s
- Vertical sensitivity: 10mV/div-100V/div
- Maximum measurement voltage: 80v (probe 1x file); 800V (probe 10x file)
- Trigger mode: Auto/Normal
- Trigger type: rising edge/falling edge
- Display mode: YT/scroll
- Afterglow time: 1s/∞
- Channel coupling: AC/DC
- One-key automatic: support
- Waveform measurement: 14 types
- Measurement accuracy: ±2%
- Reference waveform: support
- Waveform save: support
- Frequency accuracy: ±0.01%
- Single trigger: support
- FFT: Support
- Signal output: adjustable frequency duty cycle
- 50% (back to middle): support
- Dimensions: 73 x 93 x 32mm/2.9 x 3.7 x 1.3" (WxHxThickness)
- Language: Chinese/English
- Battery capacity: 3000mA
- Charging method: MicUSB-5V-700mA

Package Included:
- 1 x Set of Oscilloscope
