DSTIKE D-duino-32 SD Final ESP32 OLED TF Card Packet Monitor

DSTIKE D-duino-32 SD Final ESP32 OLED TF Card Packet Monitor

Diagram

https://github.com/lspoplove/D-duino-project/tree/master/D-duino-32SDFinal

Code example

https://github.com/spacehuhn/PacketMonitor32

PCB antenna version no longer available,Only provide IPEX antenna version

Video:

https://youtu.be/7WYakpagPXk

New version update log:

Color changed to Blue.

Optimized circuit more stable.

Break out flash button.

Added reverse protection

What is it?

This is an ESP32 version Packet monitor.

Did you ever wonder how many data packets are flying around you right now?! This little project tells you how many Wi-Fi packets are sent every second and on which channel. It's not limited to one network, it scans all traffic on one channel. It's not limited to one network, it scans all traffic on one channel.

This board could record WiFi packets into a PCAP file.

Why did you make it?

Mr spacehuhn is really a cool guy. This is another collaboration with him to release this preflashed board.

https://github.com/spacehuhn/PacketMonitor32

You can check his GitHub there are a lot of cool projects.

What makes it special?

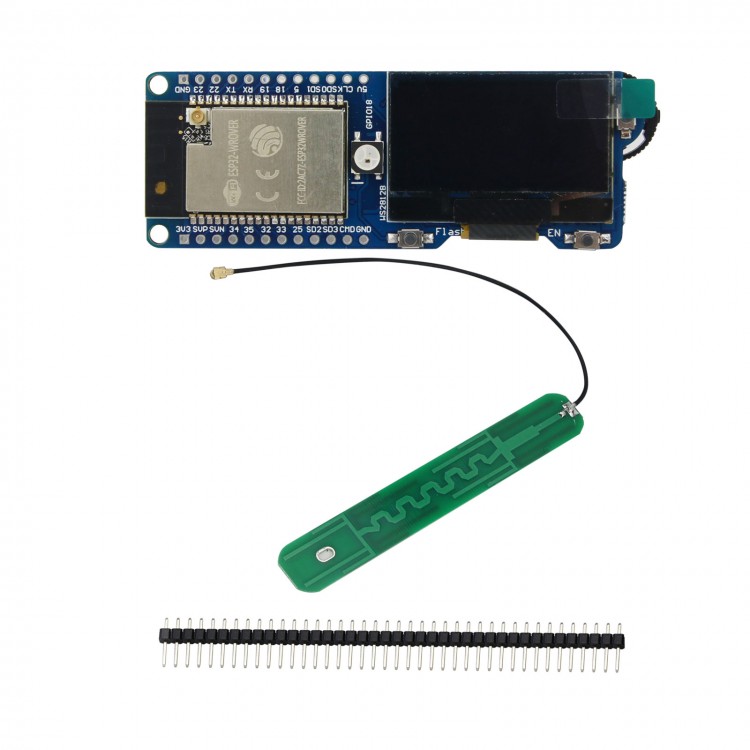

1.3 OLED integrated(GPIO26-SDA,GPIO27-SCL)

1A charging/discharging

Overcharging protection, discharging protection,reverse protection

Indicate LED(RED means charging, GREEN means full)

ESP32-Wrover inside(4MB Flash+4MB PSRAM)

Auto download function integrated

SD-card function integrated

1 control button(GPIO5)

Flash button and rst button

SD cad pin map

GPIO12--DAT2

GPIO13--DAT3

GPIO15--CMD

GPIO14--CLK

GPIO2--DAT0

GPIO4--DAT1

GPIO21--card

6 7

Button and RGB LED Test code:

https://github.com/lspoplove/D-duino32-SD
