DTracing SIM Racing Dynamic Components G-Force Flight Simulator Seat Accessory for Simtools Sim Racing Studio

DTracing SIM Racing Dynamic Components G-Force Flight Simulator Seat Accessory for Simtools Sim Racing Studio

Electric cylinder:
- Adopt ball screw produced by Taiwan TBI and nut for higher durability
- The overall structure is compact, and the CNC components are installed to ensure concentricity and precision
- 40mm piston diameter with great side load capacity

Technical Data:
- Electric cylinder data: maximum stroke 150mm; 120mm by default
- The speed is 500mm/s
- Single electric cylinder 100kg load-bearing

Controller:
- In the chassis, there is a built-in controller for Thanos. The chassis can be disassembled to adjust the parameters of the controller

Features:
- Automatic home calibration on power-up or reconnection, no limit switches required
- Automatic movement between parked and standby and online positions with adjustable timeout timer and speed
- Prevent exceeding the physical limits of the actuator, making it safer to use
- Comes with emergency stop, stop/standby, forced offline button and LED indicator control box
- Spike filter in controller to automatically smooth out bumps during collisions or unwanted motion cues

Installation Components:
- 10mm thick stainless steel mounting bracket
- 800,000-way foot cup
- 4080 nuts and screws
- The installation components can be customized according to different cockpit brackets

Software:
- Support for bracket motion control software such as for simtools, sim racing studio, and flypt Mover

Supported Games:
- Mainstream PC SIM racing games and flying games; can support some games on consoles for XBOX and PS

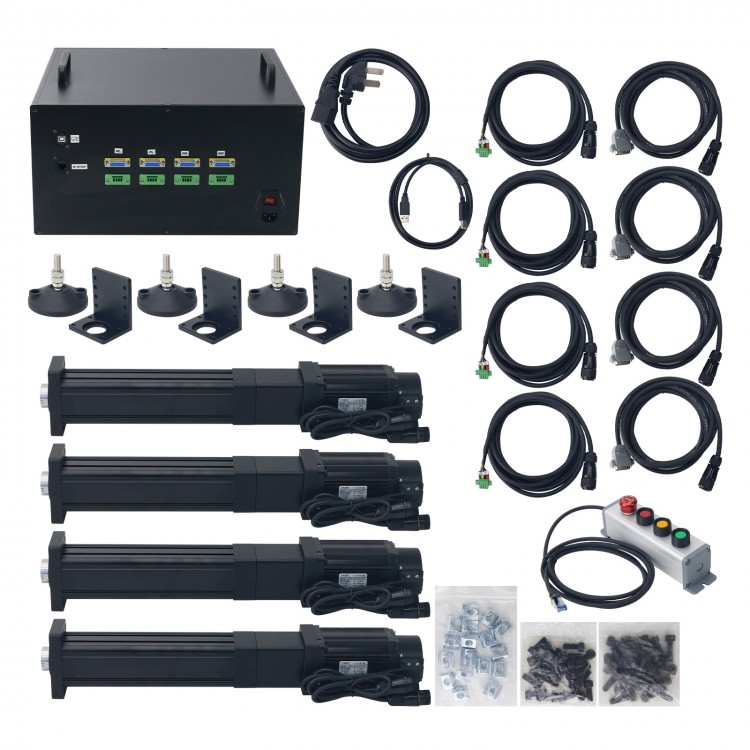

Package Included:
- 4 x DTracing industrial electric cylinders
- 1 x Chassis
- 1 x Emergency stop control box
- 4 x 3M/9.8FT cables for electric cylinders
- 1 x USB cable
