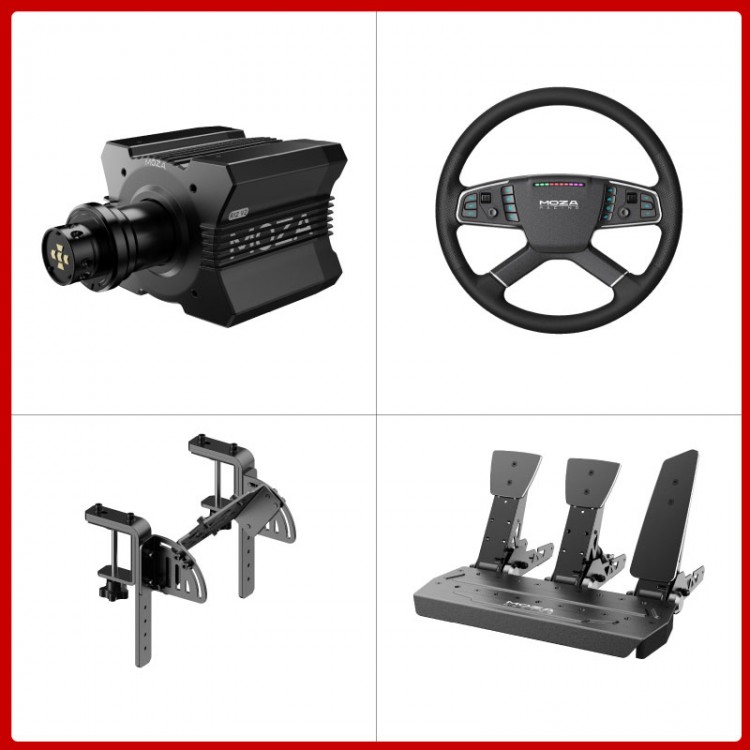

MOZA R12 V2 12Nm Direct Drive Wheel Base + 15.8" TSW Truck Wheel + Table Clamp + SR-P 3-Pedal Set

MOZA R12 V2 12Nm Direct Drive Wheel Base + 15.8" TSW Truck Wheel + Table Clamp + SR-P 3-Pedal Set

R12 V2 12Nm Direct Drive Wheel Base:
1. Features:
12Nm Constant Torque Carbon-Fiber Skewed-Pole Servo Motor
* It delivers a sustained and stable torque output of 12Nm, precisely replicating steering forces from everyday vehicles to race cars, and delicately conveying a wide range of driving details.

21-bit Magnetic Encoder with 280MHz High-Performance Chip
* The 21-bit magnetic encoder divides each rotation into 2,097,152 steps, providing ultra-smooth control feel.
* With angular resolution reaching 0.00017°, the system offers highly accurate response and realistic, detailed force feedback.

High-Performance Skewed-Pole Servo Motor Tailored for Precision Control in Simulated Racing Scenarios
* Skewed Pole Design and Quiet Operation: The non-uniform three-segment skewed pole design effectively reduces cogging torque, electromagnetic vibration, and noise.
* High Torque Density, Compact and Powerful: Featuring a high slot-fill ratio design and high-permeability iron core, combined with strong neodymium-iron-boron magnets, the motor achieves lower power consumption and higher output performance.
* Multi-Slot Multi-Pole and Ultra-Low Torque Ripple: With a design of up to 18 slots and 16 poles, the motor offers significantly reduced torque ripple and superior vibration damping, delivering a more refined and smooth steering feel.
* Wide High-Torque Speed Range: Thanks to its low back-EMF design, the motor maintains high torque even at high speeds, allowing quick directional corrections while avoiding torque dropout.

Carbon Fiber Rotor Technology
* High-performance automotive-grade motor rotor protection technology effectively reduces rotor eddy current loss and heat buildup, ensuring sustained high-performance output of the motor.

NexGen Force 4.0 Force Feedback System
* It delivers richer and more refined force feedback details.
* Curb and road surface bumps are perceived more clearly and vividly.
* Vehicle weight transfer and tire slip responses are quicker and more responsive.
* A brand-new cogging torque compensation algorithm makes steering feel smoother.
* The force feedback interpolation algorithm eliminates peaks and dips during force transitions, resulting in more natural and fluid feedback.
* Game force feedback decoupling breaks down game-supplied forces into independently adjustable components, offering greater personalization and fine-tuning.
* Innovative Road Surface Perception Equalizer — Scenario-Based Immersive Driving: Scenario-specific tuning of road texture vibrations retains helpful driving feedback while filtering out excess vibrations, delivering an extraordinary sense of driving immersion.
* Custom Force Feedback Curve — Confident, Professional Control: It allows for a non-linear relationship between wheel base output and in-game commands. It amplifies dynamic feedback that benefits driving while reducing distracting forces, helping drivers better sense loss of traction and push the limits with greater confidence and control.

Intelligent Motor Temperature Control System
* It monitors motor and electronic component temperatures in real time, ensuring stable performance even during endurance races.

High-Strength Aluminum Alloy Body
* Automotive-grade coating and laser etching deliver a premium metallic finish.

Professional Conductive Slip Ring — Stable and Durable
* It provides solid connection between the base and steering wheel, enabling high-speed rotation with a lifespan of up to 5 million revolutions (data from MOZA laboratory durability tests). It ensures stable performance and long-lasting reliability.

Mobile App & Cloud-Based Control
* Users can adjust the wheel base, steering wheel, pedals, and other devices without pausing or switching windows during a race. Core operations from the Pit House software can be controlled via smartphone or tablet.

MOZA Pit House – Professional Sim Racing Control Center
* MOZA's independently developed PC-based control center allows users to monitor the status of all devices within the MOZA ecosystem. Users can quickly adjust parameters and launch games without repetitive setup.
* Quick Tuning for the MOZA Ecosystem: Pit House enables function checks and personalized quick tuning for all MOZA devices. Users can launch games directly, apply one-click configurations, and access telemetry data. It offers a user-friendly interface and comprehensive functionality.
* Beginner-Friendly: It provides one-click scenario-based presets tailored to different racing car types and game titles, including official presets and exclusive setups from professional sim racers. Beginners can start racing immediately without a steep learning curve.
* 19 Force Feedback Tuning Parameters for a Custom Feel: It offers 19 adjustable parameters such as mechanical friction and road feel sensitivity. The open tuning platform allows players to create their ideal steering feel while learning about tuning and improving their skill level.
* Proprietary Road Surface Perception Equalizer: It enables precise, scenario-based adjustment of road texture vibration. It retains helpful feedback while filtering out excess vibrations, delivering an extraordinary immersive driving experience.
* Proprietary Force Feedback Curve Adjustment: It allows the base's force output to follow a non-linear relationship with in-game commands. It amplifies dynamic feedback beneficial to driving, dampens distracting forces, and helps the driver better detect vehicle instability—enhancing control near the limits.
* Detailed Steering Wheel Control: Through MOZA Pit House, users can finely tune settings such as dual-clutch paddles, knobs, joysticks, and shift indicator lights, significantly improving steering wheel handling.
* Precision Pedal Adjustment: On the pedal setup page, users can finely adjust throttle, brake, and clutch travel, output curves, and pressure response points. This helps players quickly develop proper braking techniques and effectively improve lap times.

Integrated Design Saves Space
* The all-in-one motor is compact and portable.
* It supports installation on professional racing cockpits, integrated stands, and desktop clamp mounts, offering a wide range of mounting options.
* Note: Desktop clamp installation requires an additional clamp (sold separately).

Hands-Off Protection for Enhanced Safety
* When the vehicle loses control and the steering wheel begins to oscillate, the system detects whether hands are off the steering wheel. If so, the steering wheel will automatically stop oscillating and stabilize near the center (zero) position. This helps effectively prevent injury and allows the driver to quickly regain control.

2. Supported Games for PC:
* For Assetto Corsa
* For Assetto Corsa Competizione
* For Forza Horizon 4 (This game is currently not compatible with Steam)
* For Forza Horizon 5 (Win 10)
* For Euro Truck Simulator 2
* For American Truck Simulator
* For RaceRoom Racing Excperience
* For F1 2018
* For F1 2019
* For F1 2020
* For F1 2021
* For F1 22
* For F1 23
* For rFactor 2
* For Project CARS 1
* For Project CARS 2
* For Project CARS 3
* For WRC G
* For WRC 9
* For WRC 10
* For Dirt Rally
* For Dirt Rally 2.0
* For Dirt 4
* For iRacing
* For Wreckfest
* For KartKarft
* For Richard Burns Rally
* For Live For Speed
* For BeamNG.Drive
* For MudRunner
* For CarX Drift Racing Online
* For Automobilista 2

3. Specifications:
* Drive Type: Direct Drive
* Max Wheel Rotation: 90-2700°
* Housing Material: Aluminum Alloy
* Housing Color: Black
* Peak Torque: 12 Nm
* Peak Power: 216W
* Input Voltage: 110V~220V AC —>36V DC
* Encoder Resolution: 21-Bit Magnetic Encoder with 280MHz High-Performance Processor
* USB Refresh Rate: 1000 Hz
* App Functions: Supported
* Quick Release: Supported
* Connection Ports: Power, USB, Pedal, Dash, Shifter, Handbrake, E-stop
* Box Contents: R12 Wheel Base, User Manual, Power Supply, USB Cable, Tool Kit
* Fixing Method: 4-hole bottom mount
* Desk Clamp: Optional
* E-stop: Optional
* Online Firmware Update: Supported
* Dimensions: 225.87 x 156.68 x 123.99 mm

TSW Truck Wheel:
1. Features:
* 400mm/15.8" Standard Diameter, Classic Four-Spoke Design: Tailored for truck simulation, it features the popular 400mm diameter. The classic four-spoke truck-style design is complemented by bold chrome accents, creating a powerful and striking aesthetic.
* Dual-Texture Microfiber Leather with Hand-Stitched Seams: It is wrapped in perforated and textured microfiber leather. The perforated leather at the 3 and 9 o'clock positions provides excellent grip and prevents slipping. The microfiber leather is soft, delicate, and comfortable to the touch.
* High-Strength Aluminum Alloy Frame: The internal frame of the steering wheel is made of 4mm thick high-strength aluminum alloy, offering exceptional rigidity and stability.
* Short-Travel Backlit Buttons with 16.7 Million Colors: It features 14 automotive-style buttons with short travel and crisp, tactile feedback. Each button supports 16.7 million color customization, and is marked with truck-specific icons. It includes DIY stickers for personalized modifications.
* LED Shift Indicator with Customizable Colors: A LED shift indicator composed of 10 bright LEDs delivers a futuristic visual effect. Each LED supports 16.7 million colors for full customization.
* Lightweight Aluminum Alloy Quick Release: A lightweight quick release system ensures secure connection between the steering wheel and base. Fast to attach or detach, and highly reliable.
* Compatible with Third-Party Bases: Designed with an open and inclusive ecosystem, the wheel features built-in expansion ports and can connect directly to a PC via the MOZA universal adapter, enabling compatibility with most third-party wheel bases.
* Wireless and Conductive Slip Ring Connection Modes: The steering wheel supports both wireless communication and conductive slip ring modes, making it compatible with all MOZA racing simulator bases that use either method.
* Aluminum Alloy Thumbwheels and Ultra-Slim Flat Thumbsticks: It is equipped with 2 aluminum alloy knurled thumbwheels, offering a premium feel and clear tactile feedback for easy increment and decrement operations. Additionally, there are 2 ultra-slim flat thumbsticks that function as 4-way directional pads. Their flush design effectively prevents accidental inputs during intense steering.
* MOZA Pit House Multi-Function Control Center: It works with the Pit House steering wheel interface to test button functionality and customize settings such as joystick modes, shift indicator LED colors and brightness, activation timing, and backlight colors.
* Stable and Reliable: From torsion and destructive testing of the wheel's frame to long-term durability tests of individual electronic components, every element has passed rigorous testing. All buttons have endured 300,000 press cycles and still perform with consistent triggering and rebound.

Table Clamp for TSW Truck Wheel:
1. Features:
* High-Strength Steel Support Bracket: Crafted from 4-6mm thick high-strength steel, this bracket offers outstanding load-bearing performance. Its robust construction ensures superior durability and stability.
* Wide 0–75° Angle Adjustment: It features a 0-75° wide adjustment range, allowing easy customization of steering wheel angle and height. Perfectly suited for a variety of driving simulations including truck, farming, and racing simulators—delivering a realistic and comfortable driving experience.
* Compatible with Desktops & Aluminum Profile Mounting: It supports multiple installation setups with a clamping range of 3-70mm. It can be securely mounted to desks or aluminum profile frames. It is ideal for both compact desktop setups and professional cockpit environments.
* Universal for All MOZA Racing Wheel Bases: It is compatible with the entire MOZA racing simulator lineup—from the MOZA R3 to the MOZA R21.

2. Specifications:
* Size: 160 × 155 × 200 mm
* Material: High-strength Steel
* Height Adjustment Range: 5mm-70mm
* Angle Adjustment Range: 0°-75°

SR-P 3-Pedal Set:
1. Features:
* Made with High-strength Steel: The pedals are crafted from high-strength steel, ensuring superior quality and durability.
* Floor Mounted Organ Type Accelerator Pedal: The organ-style accelerator pedal allows the driver's foot and the pedal to move along the same trajectory, making throttle control easier and more precise.
* High-Precision 100KG Load Cell: The MOZA SR-P pedals feature advanced load cell sensors with a 100kg capacity. These sensors accurately detect brake pedal pressure, enabling users to apply the ideal braking force through precise pressure control.
* 16-bit High Precision Magnetic Encoder: The brake, optional clutch, and throttle pedals all use a 16-bit precision magnetic encoder with 65536 PPR resolution — offering much higher accuracy and greater stability than a Hall sensor.
* Dual Sensor Fusion Algorithm: The brake uses both pressure and angle sensors to allow precise braking control. In the initial stage, the angle sensor dominates, enabling racers to modulate the braking angle. In the mid and final stages, the pressure sensor takes over, making the pedal easier to control.
* Braking Spring and Damping Block Combined: By utilizing both a braking spring and a damping block, racers can enjoy greater control during the initial stage of pedal travel, along with a signature stiffness in the final stage that closely simulates real brake pedal feel.
* Direct Connection with PC through USB: The MOZA SR-P Pedals connect effortlessly to your PC via USB and can be easily calibrated using the intuitive MOZA Pit House software. With universal compatibility across all sim racing gear, they ensure a smooth and hassle-free experience for every racing enthusiast.
* Multiple Use Scenarios: The anti-slip mat on the bottom prevents the pedals from sliding during use without professional brackets, while still allowing easy integration into more advanced setups.
* Detachable Pedals: The pedals can be easily detached and mounted onto other professional brackets. For advanced users, they can also be installed in a reversed configuration.
* Pedal Output Curve Adjustment: MOZA Pit House allows easy configuration of pedal output curves to suit different needs.

2. Specifications:
* Material: High-strength steel
* Plate Material: High-strength steel
* Brake Sensor: Load cell + angle sensor
* Max Capacity: 100KG
* Throttle Sensor: Angle sensor
* Clutch Sensor: Angle sensor (Only for the 3-pedal set)
* Angle Sensor Resolution: 16-bit (65536ppr)
* Pedal Spacing: Adjustable
* Pedal Plate Height: Adjustable
* Pedal Connection Port: USB
* Pedal Travel Software Adjustment: Yes
* Pedal Travel Reverse Function: Yes
* Anti-Slipping Pad: Included

Packing List:
* 1 x Set of wheel base + steering wheel + table clamp + pedals

Packaging Details:
* Weight: 17.5kg

Note:
* The SR-P pedals are compatible with other products and can be used via USB alongside any brand. They are not compatible with the SR-P Lite Clutch Pedal and SR-P Lite Brake Pedal Performance Kit.
