Description:
-
The DAC is based on 2Pcs ES9038PRO which is the latest product from
ESS,4 channels are parallel connected at MONO mode,It is under soft
control with MCU to maximize the performanc
- The DAC is under
control of MCU with software, Support coaxial/optical and USB input
source selection , Changeable internal filter, Memory of power-off,
Remote control.
- Coaxial input support DSD64 DOP.
- Gold plated RCA input / output jacks with great signal transmit.
- Upgraded 0.1ppm high percision TCXO with temperature compensation, Didecated power supply, Provide accurate clock for DAC chip
Sepecification
- Input Voltage : AC 15V-0-15V, 0-6V, 0-6V
- Input: coaxial/optical, USB input is optional
- Output: RCA, XLR balanced output
- Frequency response:20hz to 20KhzS/N ratio: <-120DB
- Total harmonic distortion: <0.002%
-
Coaxial/optical: PCM 16-24bit, 44.1K, 48K, 88.2k, 96k, 176.4k, 192k,
DSD64(DOP) Amanero USB: PCM 16-32bit, 44.1K, 48K, 88.2k, 96k, 176.4k,
192k, 352.8k, 384k DSD64(2.8M), DSD128(5.6M), DSD2565(11.28M)
Amanero
USB input compatible with Windows XP/7/8/8.1/10, Mac OS 10.6 or newer,
Support most Android devices with OTG support but NOT ALL
Packing List:

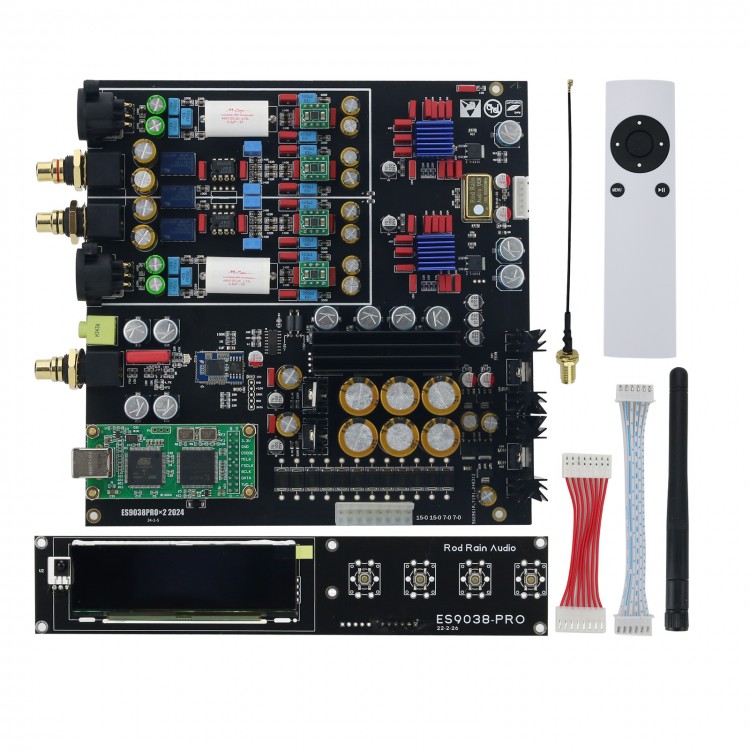

- DAC Board with Amanero USB and Bluetooth 5.0*1
