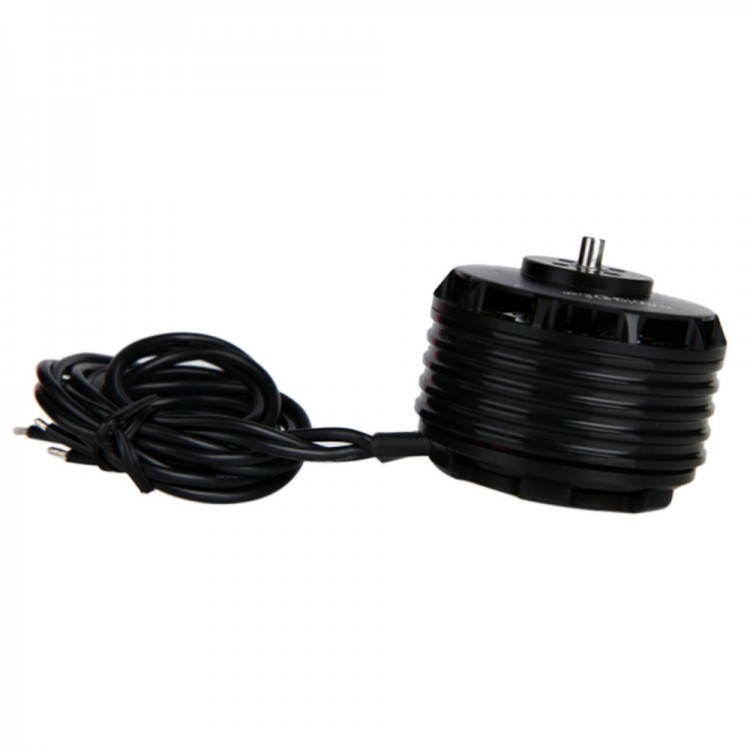

DualSky XM5015HD-6 390KV Heavy-Duty Four-Rotor Brushless Disc Motor V2.0 for FPV Multicopter UAV
Features:
- With propeller adapters
- Centrifugal fan
- Dynamic balanced rotor
- Heavy duty design
- Water & dust proof IP34
Specification:
- Model: XM5015HD-6
- RPM/V (KV): 390 High Voltage
- Weight w/o wires(g) :165
- Diameter(mm): 50
- Length(mm): 36.5
- Diameter of Shaft(mm): IN: 6.0, Out:4.0
- Propeller mounting holes [Pitch, Size] (mm): 12mm, 4-M4;
- Motor mounting holes [Pitch, Size] (mm):(A) 25mm, 4-M4 (B)32mm, 4-M4
- Slots,Poles: 24, 28
- Idle Current(Io) @10V(A): 1.1
- Resistance(Ri)(mOhm): 80
- Nominal Voltage(V): 22.2V, 6S Lipo
- Cruising power(W)[30 mins]: 380
- Bursts current(A)[30s]: 31
- Peak power(W)[30s]: 700
- Input Wire: 18AWG, 600mm
- Recommended ESC: XC-401-MR
- Propeller: MRP 16"
Package included:
- 1* DualSky XM5015HD-6 390KV brushless disc motor
