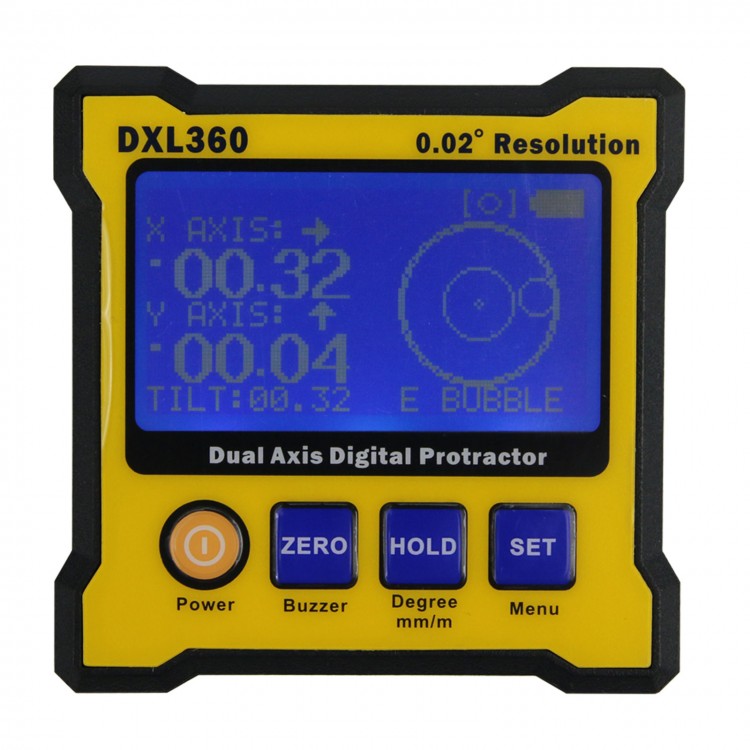

DXL360 Dual Axis Digital Angle Protractor Magnetic Mini Inclinometer Angle Finder 0.02° Resolution

DXL360 Dual Axis Digital Angle Protractor Magnetic Mini Inclinometer Angle Finder 0.02° Resolution

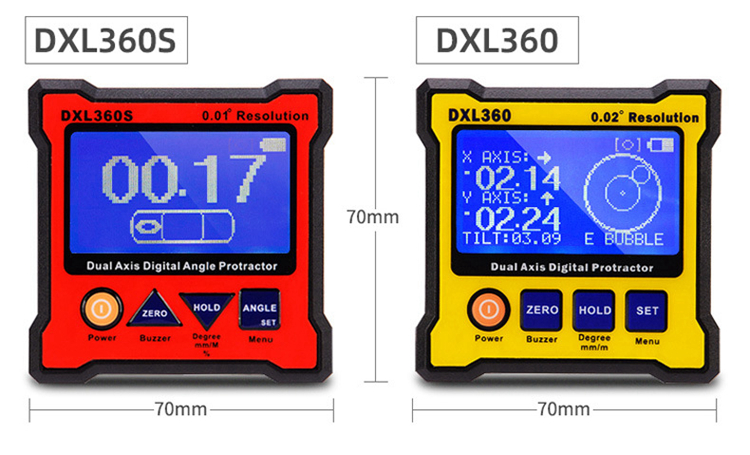

DXL360S VS DXL360:
DXL360S:
- Dual axis accuracy ±0.05°
- Resolution 0.01°
- With gyroscope function

DXL360:
- Dual axis accuracy ±0.1°
- Resolution 0.02°
- Without gyroscope function

Features:
- Dual axis digital protractor
- High-precision testing and large LCD displays accuracy. The accuracy of DXL360S is ±0.05°, and the resolution is 0.01°. The accuracy of DXL360 is ±0.1°, and the resolution is 0.02°
- Built-in lithium battery: 3.7V rechargeable lithium battery can be charged via USB
- 5 sides with magnets, magnetic field at 360°. There are strong magnetism around the inside of the instrument, which can adsorb iron objects for a long time
- Buzzer alarm function: You can set the sound alarm angle range, which is convenient for product inspection or experimental research. Long press Buzzer button to set the buzzer alarm
- Two modes of measurement: standard mode measurement and relative mode measurement. Short press the ZERO button to set the current plane as the zero plane. Press the ZERO button, a triangle icon will appear in the upper right corner of the display
- Automatic reverse display , automatic calibration, simulated bubble, cylindrical measurement
- Data transmission: Users can purchase an additional adapter to transmit the data of the meter. Optional SV-BT Bluetooth adapter is for Android cellphones only, users can view data on the phone. Optional SVRS232 USB adapter can be connected to a computer to transfer data. The stored data can be viewed through computer software and txt files
- Dual-axis test: Dual-axis measurement mode: The instrument is placed flat on the measurement surface, and the dual-axis measurement range is ±40°. Single-axis measurement mode: the instrument is placed on the measurement surface upright, the single-axis measurement range is ±360°, and the display angle: ±0° to 90°
- Applicable fields: Machinery manufacturing, automobile maintenance, medical industry, wood processing, instrument testing, home decoration
- Measure the reference plane, back plane and bottom plane. Note: When measuring, please place the reference surface on the measured plane to measure the reading
- M4 screws can be used to fix the instrument to measure
- Three units, switch to display length/angle/percentage. Can display 1-meter tilt error (sine function), standard horizontal tilt angle and overall plane tilt
- V-groove is convenient for measuring cylindrical products
- Product application areas: professional billiard room, construction measurement, product qualification verification, data collection and analysis, medical industry

Package Included:
- 1 x Set of DXL360 Angle Protractor

Note:
- You need a waist holder for the main unit, please contact us to pay extra money when purchasing. Thank you!
