JINGYAN TTL-90S Dual-Axis Angle Protractor Angle Finder Magnetic Inclinometer 0.001° Resolution

Availability: In stock, usually dispatched in 1 business day

  • Price:$211.27
  • Price in reward points: 2113 Reward Points: 21
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $207.04 $202.82 $196.48 $188.03 Contact US
Quantity:

JINGYAN TTL-90S Dual-Axis Angle Protractor Angle Finder Magnetic Inclinometer 0.001° Resolution

Description:

This angle meter has many features: professional chip, 0.001° resolution, engineering use, research and development, working more stable, with the function of the laser, engineering required. It's very professional and great for engineering research and development personnel.

Features:

- High accuracy ±0.005°, high resolution 0.001°
- High resolution, professional measurement
- Single-axis and dual-axis modes with large LCD to display angle. ±40° measurement range for dual-axis mode. Single-axis measuring range ±360° and displayed angle ±0° to 90°.
- Built-in rechargeable lithium battery with multiple protections, power-saving
- Magnet adsorption makes measurement easier and more convenient to apply
- Audible alarming at settable angle range
- Automatic calibration
- Data connection function: Users can purchase an additional adapter to transmit the data of the meter. Optional SV-BT Bluetooth adapter is for Android cellphones only, users can view data on the phone. Optional SVRS232 USB adapter can be connected to a computer to transfer data. The stored data can be viewed through computer software and txt files
- Applicable fields: aerospace, automobile maintenance, medical industry, exploration engineering, machinery manufacturing, scientific research experiment
- Gyro function: Any angle measurement with gyro
- V shape for easy applications
- Three units, switch to display length/angle/percentage. Can display 1-meter tilt error (sine function), standard horizontal tilt angle and overall plane tilt
- Laser module installed for alignment. Red laser light lasts for long and consumes less electric quantity
- Simulated horizontal bubble: where the bubble is, the side of the plane is high
- The third generation of high-end chips combines revolutionary technology based on MEMS with advanced software technology to achieve accuracy better than ±0.005° and high resolution of 0.001°. Stable operation, fast speed, long life
- Buzzer alarm function: You can set the sound alarm angle range, which is convenient for product inspection or experimental research. Buzzer setting interface: 0-90° full-angle coverage included, except all activities can be set arbitrarily
- Two modes of measurement: standard mode measurement and relative mode measurement. Short press the ZERO button to set the current plane as the zero plane. Press the ZERO button, a triangle icon will appear in the upper right corner of the display
- Multiple connection systems: the module for MODBUS 485 can be used to connect to PLC, and 255pcs TLL-90S can be connected at the same time

Specifications:

- Measuring range: single-axis mode: 0 to 360°; dual-axis mode: ±40°
- Product accuracy: 0 to 20°: ±(0.005°); 20° to 70°: ±(0.01°); 70° to 90°: ±(0.005°)
- Product resolution: 0.001°
- Gyroscope speed: <50°/sec
- Angle resolution: 0.1°
- Angle accuracy: 0.5°
- Response time: 0.7 seconds
- Buzzer volume: 60DB at 30cm
- Angle deviation: 0.002° (normal state)
- Operating temperature: 0 to 50℃
- Storage temperature: -10°C to 60°C
- User interface: Backlit monochrome LCD
- Power supply: 3.7V rechargeable lithium battery
- Charger interface: 5V 500MA MINI B type USB interface
- Product power consumption: when in standby: 10UA; when in use: 20MA
- Standby battery: 4000 hours
- Use battery: 30 hours

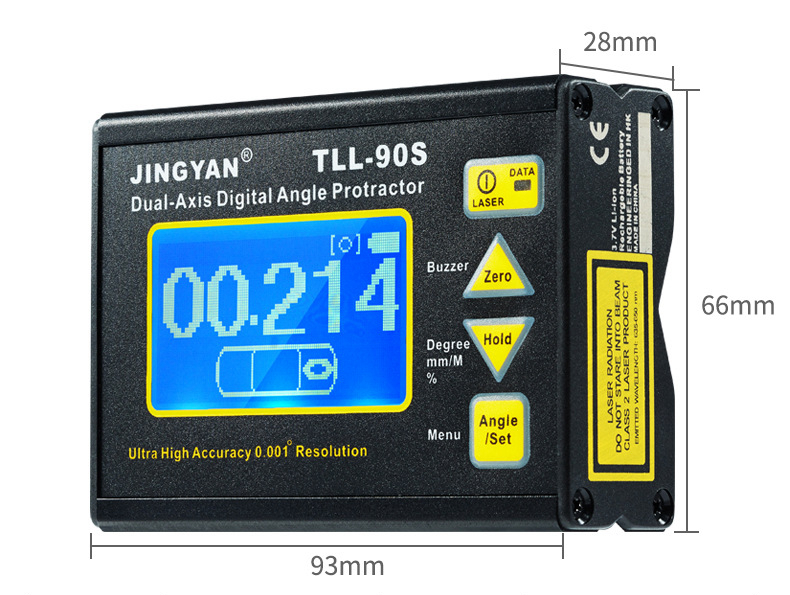

- Product size: 93mm*66mm*28mm
- Magnetic strength: set at the bottom, N35
- Instrument weight: 120g

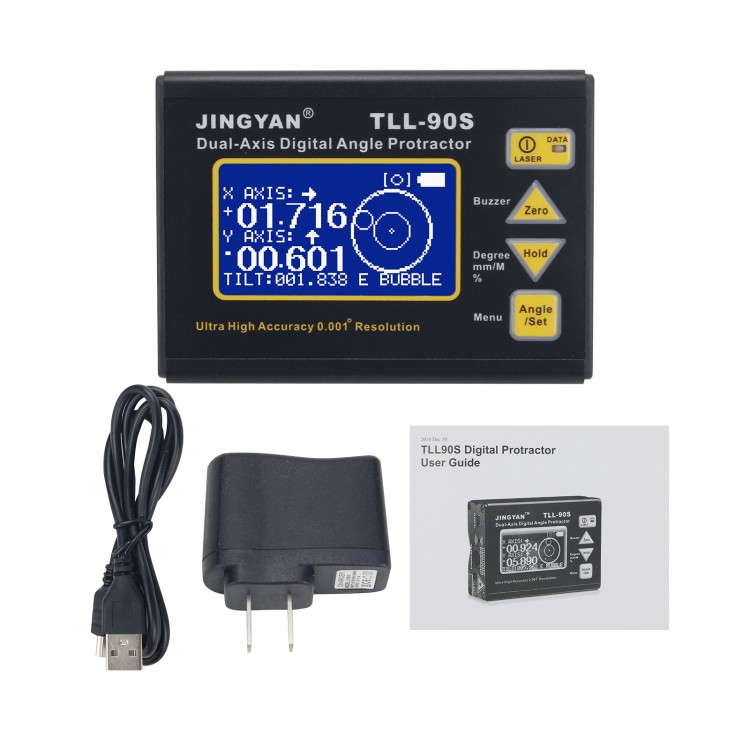

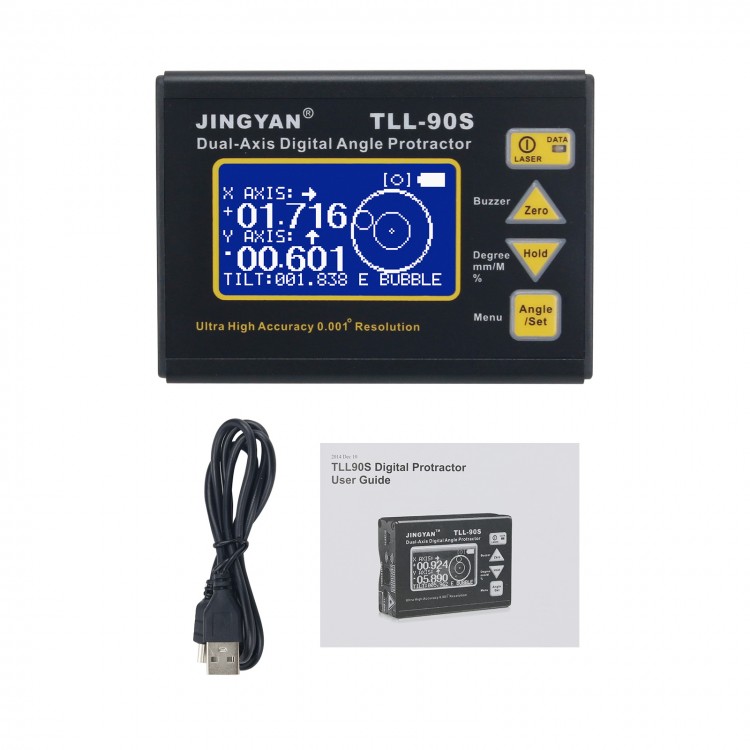

Package Included:
- 1 x Set of Angle Protractor
