DYXZ-02 Non-Contact Phase Sequence Detector Phase Sequence Indicator for Live Voltage Detection

Description:

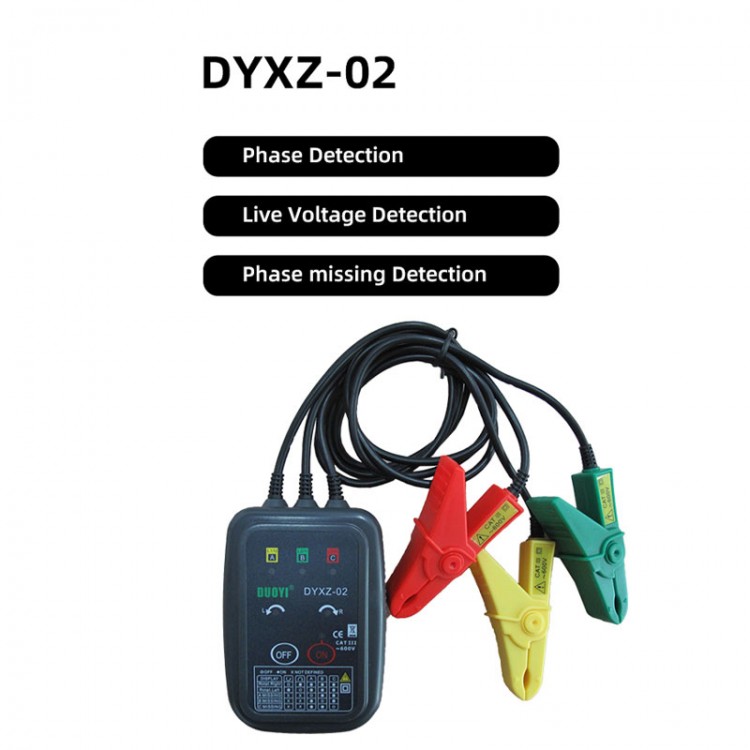

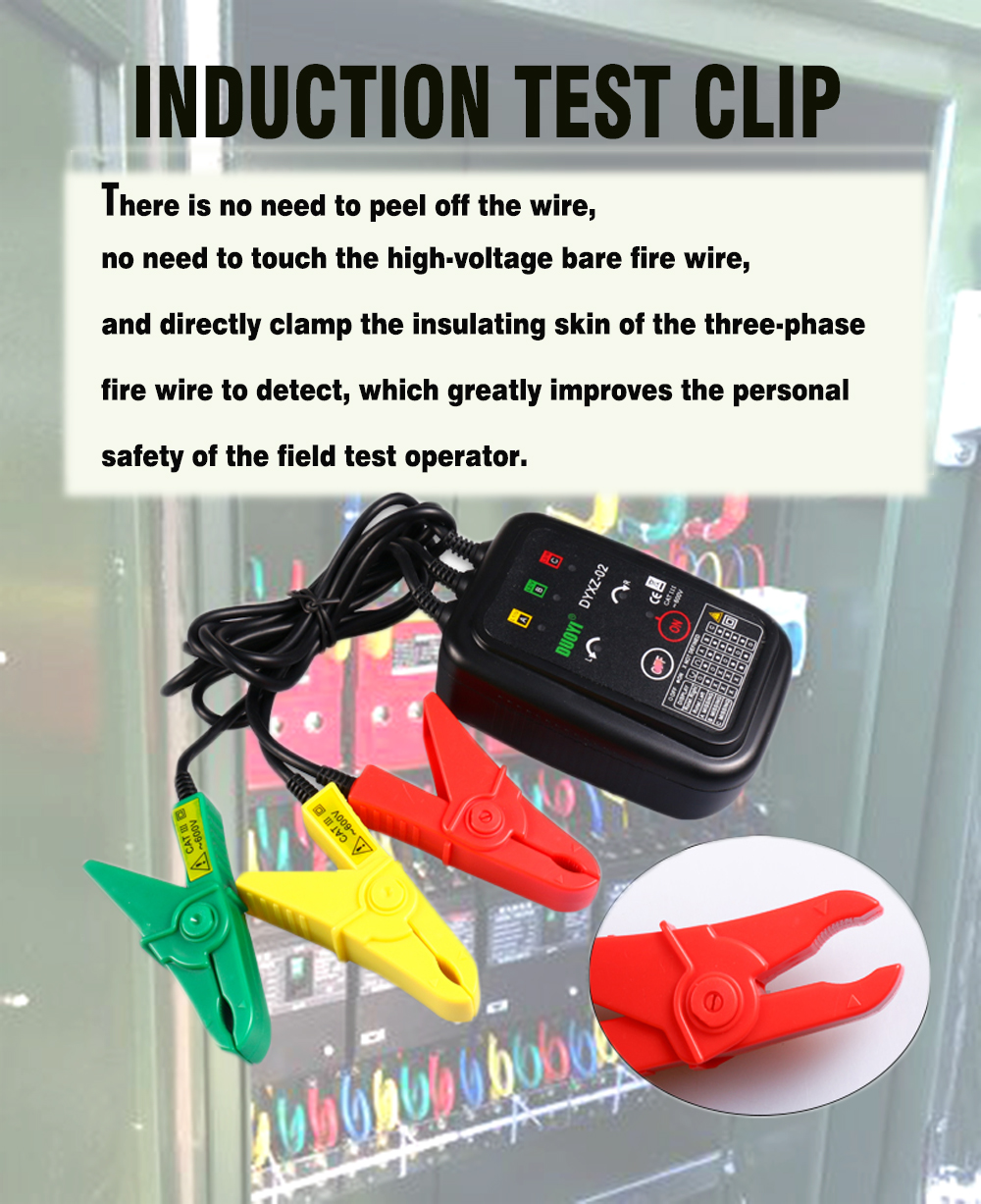

DYXZ-02 non-contact phase rotation tester designs for quick, easy and accurate detection of three phase sequence in motor installation and repair. The non-connection to insulated conductor avoids uncertain and difficult connections to bare high voltage wires.

This is a phase detector, designed to perform phase sequence checks and live line checks of a 3-phase circuit using a static induction voltage clip.

The static induction voltage clips are used to be able to clip on a cladded wire.It is small with a CAT 600V safety rating.

Red LED lamps are used to make the indication visible in dimly lit areas.The direction of phase sequence can be checked easily using the LED lamps, which blink in order.

Technical Parameters:
- Product functions: normal phase, reverse phase, live wire inspection, simple line inspection, and line maintenance
- Voltage range: AC70V~600V, 50~60Hz (sine wave continuous input)
- Frequency range: 50Hz~60Hz
- Clampable conductor: Insulated wire with an outer diameter of 17mm/0.7" (equivalent conductor cross-sectional area of 100 mm²).

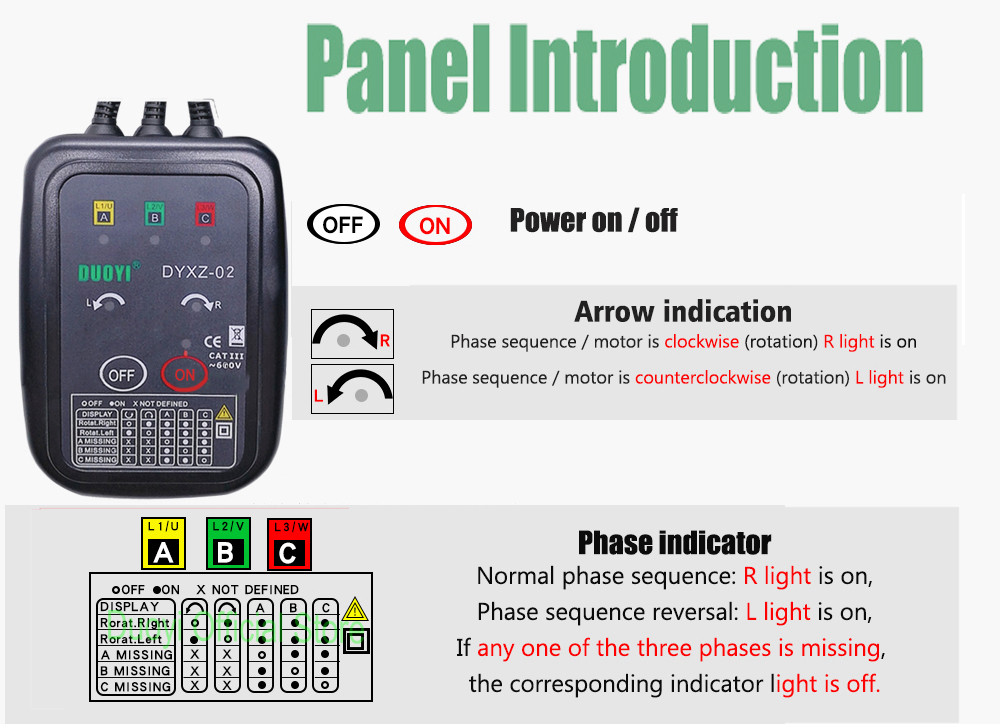

- Operation display: phase sequence and live line, phase loss detection; Normal phase: R lamp is lit; Inverted: L lamp lit; Live: the corresponding ABC phase indicator light within the voltage setting range is lit; Phase loss: The corresponding ABC phase indicator within the voltage setting range is not lit
- Dielectric strength: 5.4kVrms
- Automatic shutdown: Automatic shutdown for about 5 minutes without operation
- Power supply indicator: The power LED lights up when the system is powered on
- Operating wet temperature: -10°C to 55°C, below 80%PH
- Measure high voltage: AC600V
- High power rating: 300mVA
- Weight: 150g/0.3lb

Package Included:
- 1 x Phase Detector
- 1 x User Manual
- 1 x Product Quality Certificate
- 1 x Bag

Note:
- 2pcs 1.5V AA batteries are not included.




Test Operation:
1. Phase Detection
CAUTION! HIGH VOLTAGE!
(1) Connection: Connect the three non-contact alligator clips to the three phase power cables.
(2) The symbol or each clip should be placed at the center of each cables.
(3) Press "ON", light A, B, C flashes once to power on the tester.
(4) In case the A, B, C are lit up, R is on if positive CW is detected. If in negative CCW, L is on. If one or more of light A, B, C does not light up, it means the relevant phase is open. In this case, R or L does not represent the indication.
(5) Press "OFF" to shut down the tester after use.

2. Live Voltage Detection
CAUTION! HIGH VOLTAGE!
(1) Connect any of the alligator clips to the conductor. If the conductor is powered on (Voltage within 70~600V AC), the relevant light A, B, C should light up. This can quickly determine if the conductor is powered on.
(2) Clips and lights reference table.
