EBC-A05+ Electronic Load Battery Tester Battery Testing Power for Mobile Battery Capacity Computer 5V Output

Tags: EBC-A05+, Electronic Battery Tester

Availability: In stock, usually dispatched in 1 business day

  • Price:$56.89
  • Price in reward points: 569 Reward Points: 6
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $55.75 $54.61 $52.91 $50.63 Contact US
Quantity:

EBC-A05+ Electronic Load Battery Tester Battery Testing Power for Mobile Battery Capacity Computer 5V Output


Description:

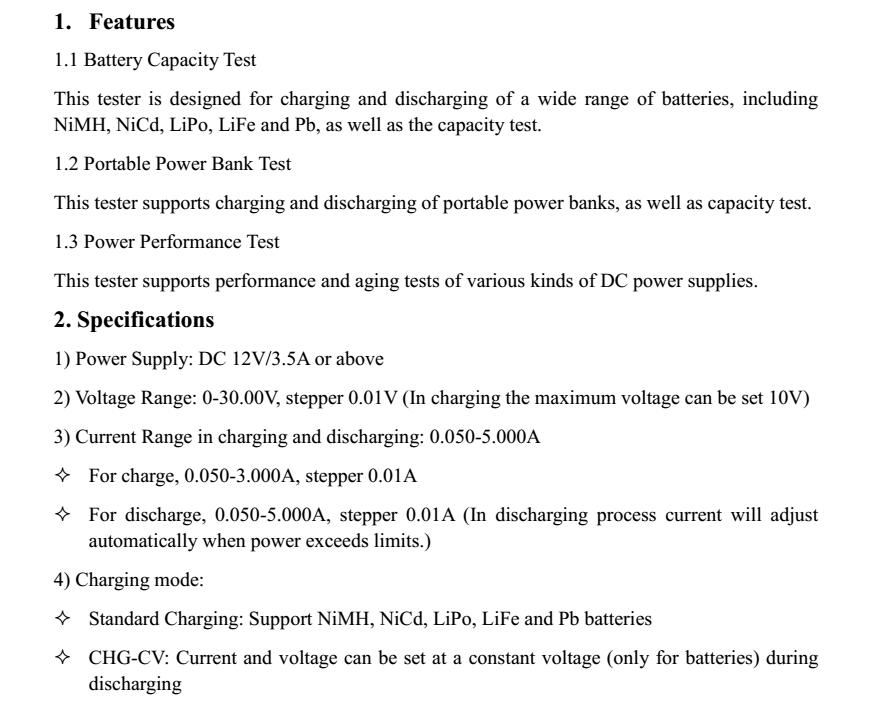

- EBC-A05+ is an electronic load with charging function for all types of batteries and mobile power charge and discharge capacitor testing and power performance testing, support connected to the computer via an online software with more extensions.Pls buy from thanksbuyer to ensure the product is original.
- Power supply: DC 12V/3.5A or more
- Voltage Range: 0.00-30.00V,the minimum stepper 0.01V (The max voltage is 10V when charging.)
4.50V-30.00V (automatic switching gear)
Current set:Discharge:0.050-5.000A,the minimum stepper 0.01A (When the power is over limit,automatically limit the current)
                    Charge:0.050-3.000A,the minimum stepper 0.01A (The max current is power supply 0.5A)

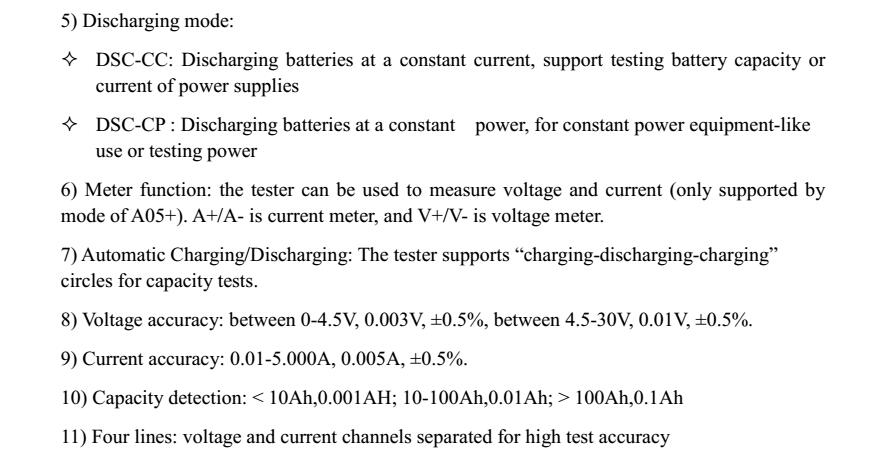

- Discharge mode:DSC-CC (constant current):discharge current constant,used for testing battery capacity or power current.
                               DSC-CP (constant power):discharge power constant,used for analog constant power devices or testing power.
- Charging mode:standard charge:support:Nickel metal hydride, nickel cadmium, lithium iron battery, lead-acid.
                             CHG-CV (Constant pressure charge):user-defined constant current voltage charge (only for battery)
- Testing mode:METER (voltage current meter):test voltage and current function
- Auto charge discharge:support auto"charge-discharge-charge"mode,test battery capacity.
- Voltage test:0.000-4.500V (low voltage level),accurate 0.003V,+-0.5% error.
                        4.50V-30.00V (high voltage level),accurate 0.01V,+-0.5% error.
- Current test:0.01A-5.000A,accurate 0.005A,+-0.5% error.
- Capacity test:within 10Ah,resolution 0.001Ah
                                 10Ah-100Ah,resolution 0.01Ah
                                  >100Ah,resolution 0.1Ah

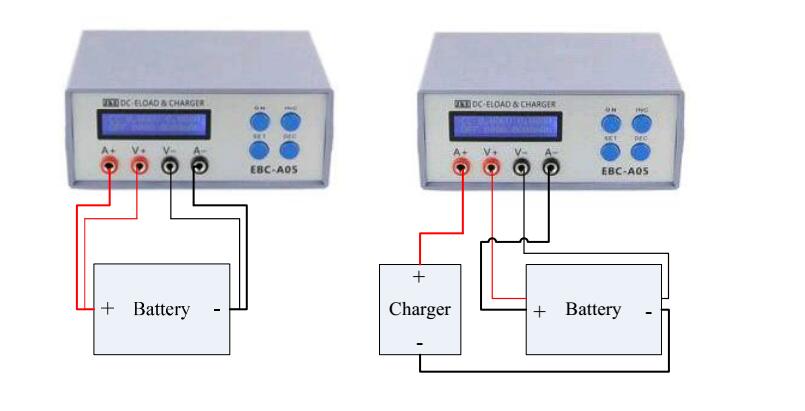

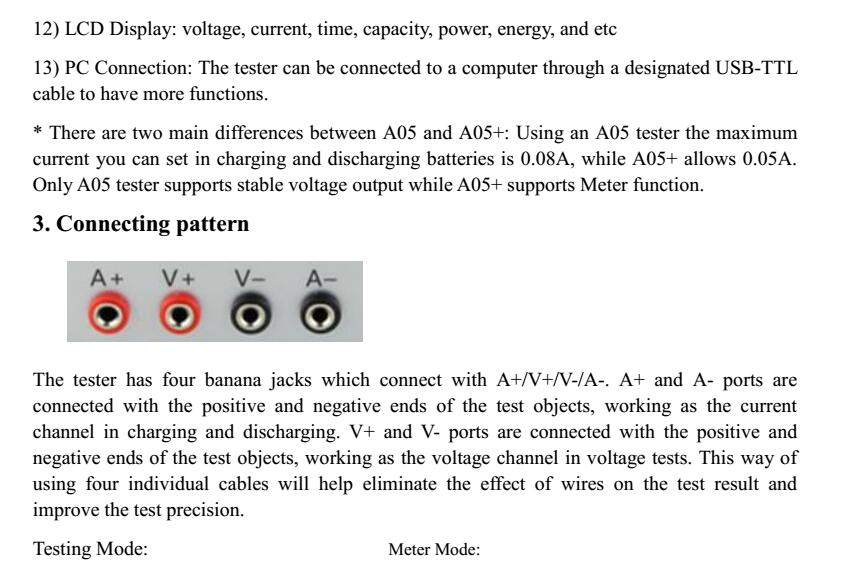

- Cable connecting:4-cable test,voltage testing and current channel separate connection to ensure accuracy.
- LCD display:voltage,current,capacity,time,power,energy......testing data.

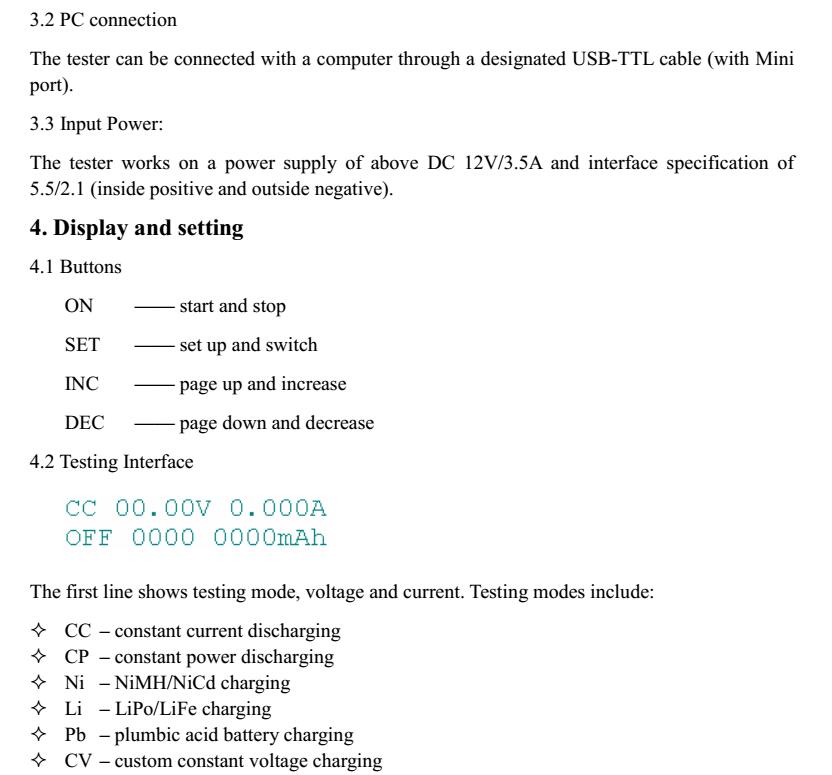

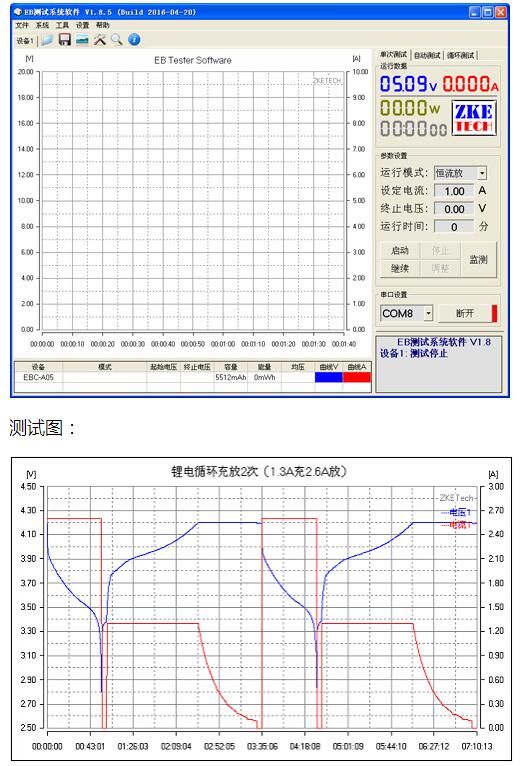

- Computer online:special USB to TTL serial cable (MiniUSB port,not common USB cable)
                                computer control,draw curve,calibration measuring reference,update applicants firmware,cycle charge-discharge.

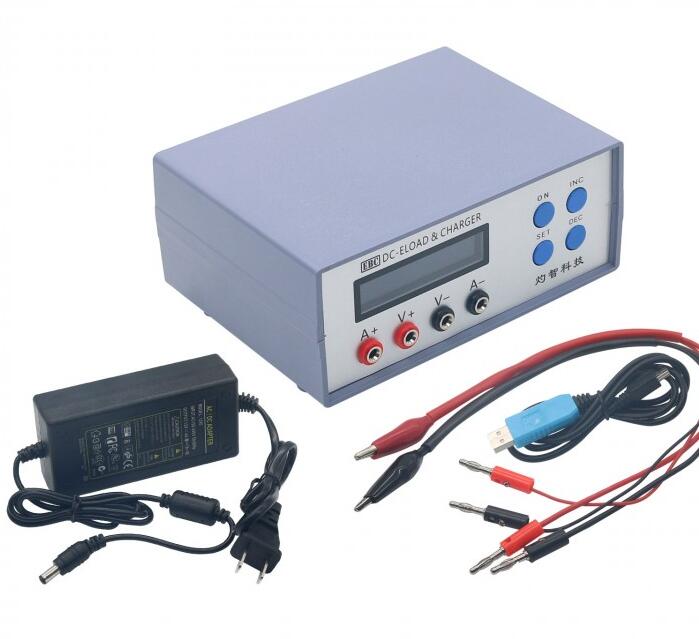

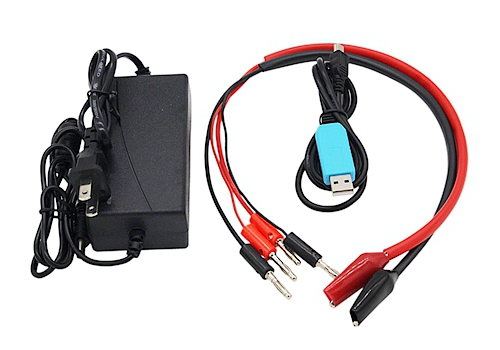

Package List:
- 1 x EBC-A05+ Electronic Load Battery Tester
- 1 x Clamp
- 1 x USB to TTL serial cable
- 1 x 12V 4A Power supply
