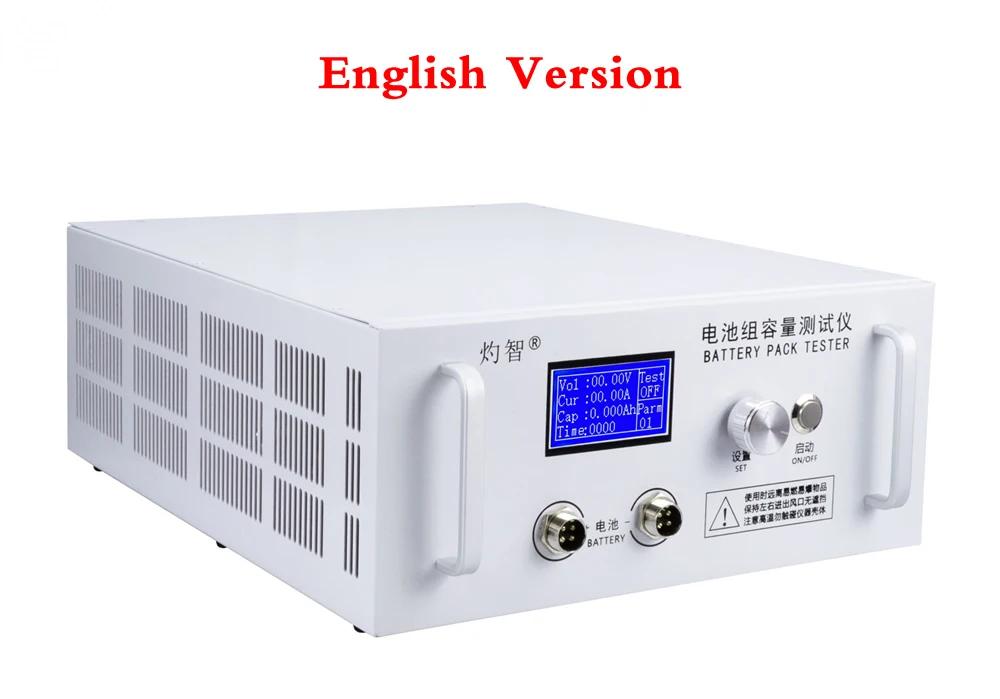

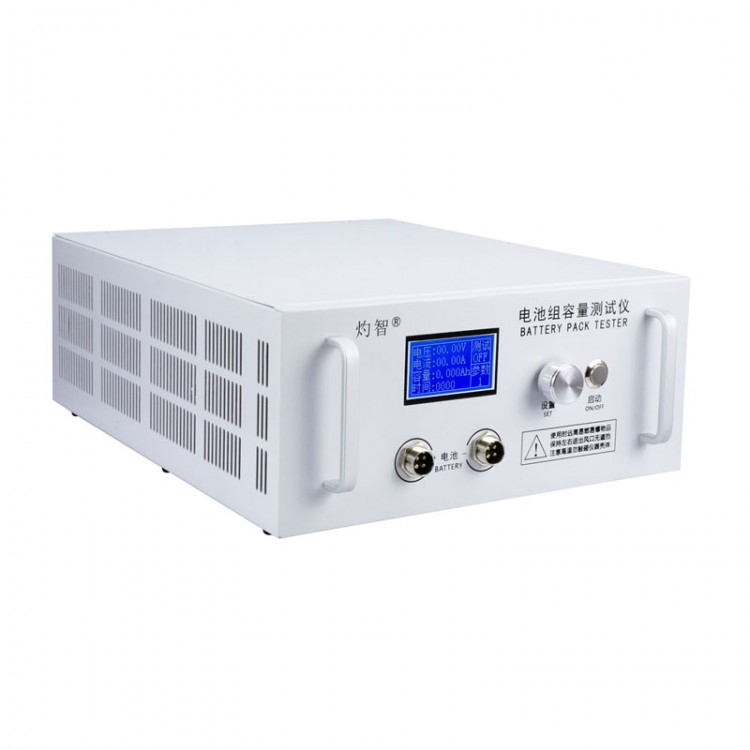

EBD-B30H 12-72V Lead Acid Lithium Battery Pack Capacity Tester Discharge Instrument 30A 220V
Description:
- EBD-B30H is a capacity tester for lead-acid and lithium battery packs. It is suitable for battery pack capacity testing in the 12V-72V range. It has a built-in discharge load resistor and supports computer online curve drawing.

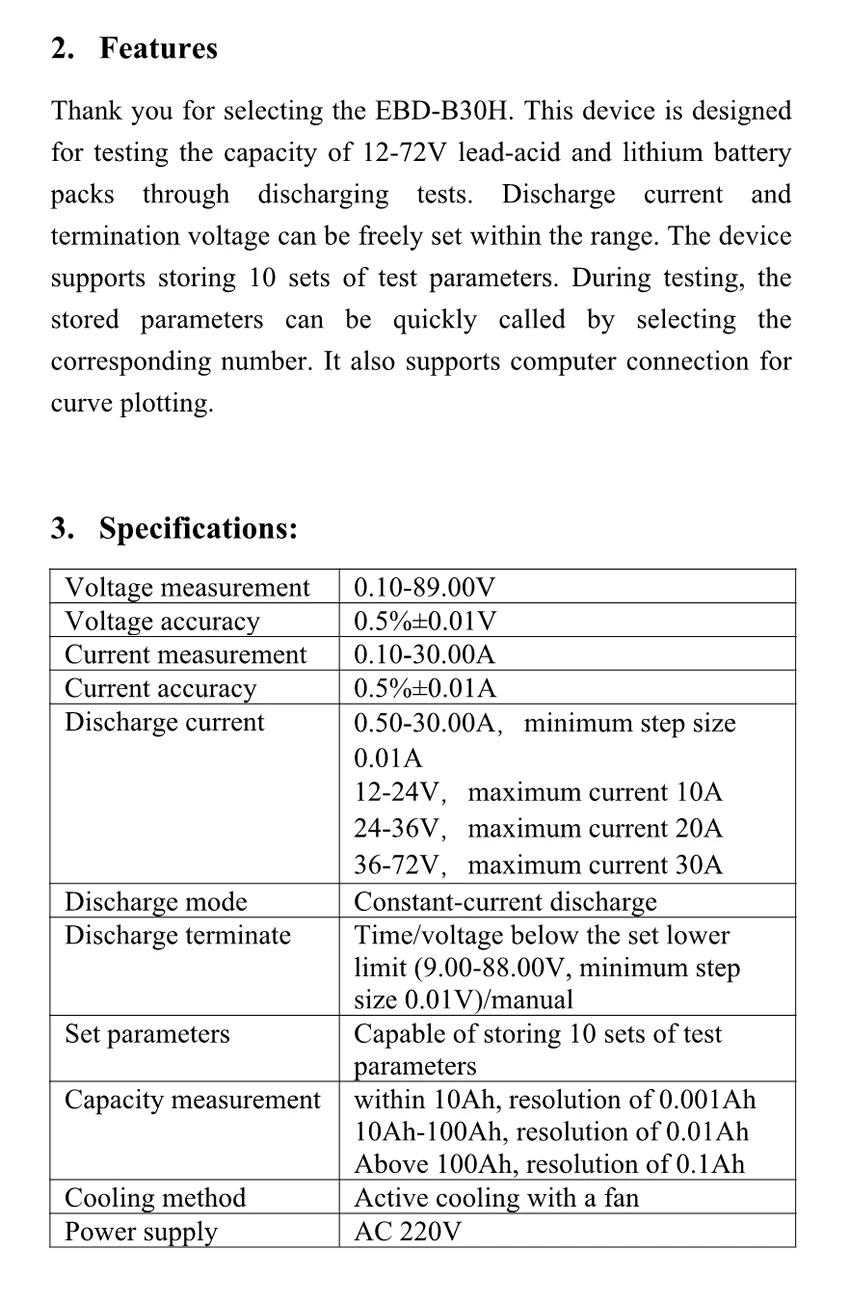

Specification:
- Model: EBD-B30H
- Voltage range: 0.1 - 89V
- Voltage precision: 0.5%±0.01V
- Current range: 0.1 - 30A
- Current precision: 0.5%±0.01A
- Discharge current:
36 - 72V battery pack: 0.5 - 30A, minimum step of 0.01A
24V battery pack: 0.5 - 20A, minimum step of 0.01A
12V battery pack: 0.5 - 10A, minimum step of 0.01A
- Discharge mode: constant current discharging

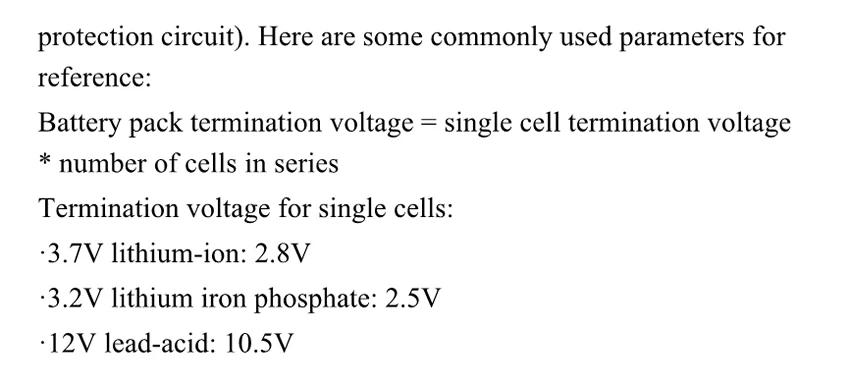

- Discharge termination: time / manual; voltage below the set lower limit (9 - 88V, minimum step of 0.01V)
- Capacity measurement:
Within 10Ah: resolution of 0.001Ah
10Ah - 100Ah: resolution of 0.01Ah
100Ah above: resolution of 0.1Ah
- Hat dissipation method: fan active cooling
- Power supply: AC220V

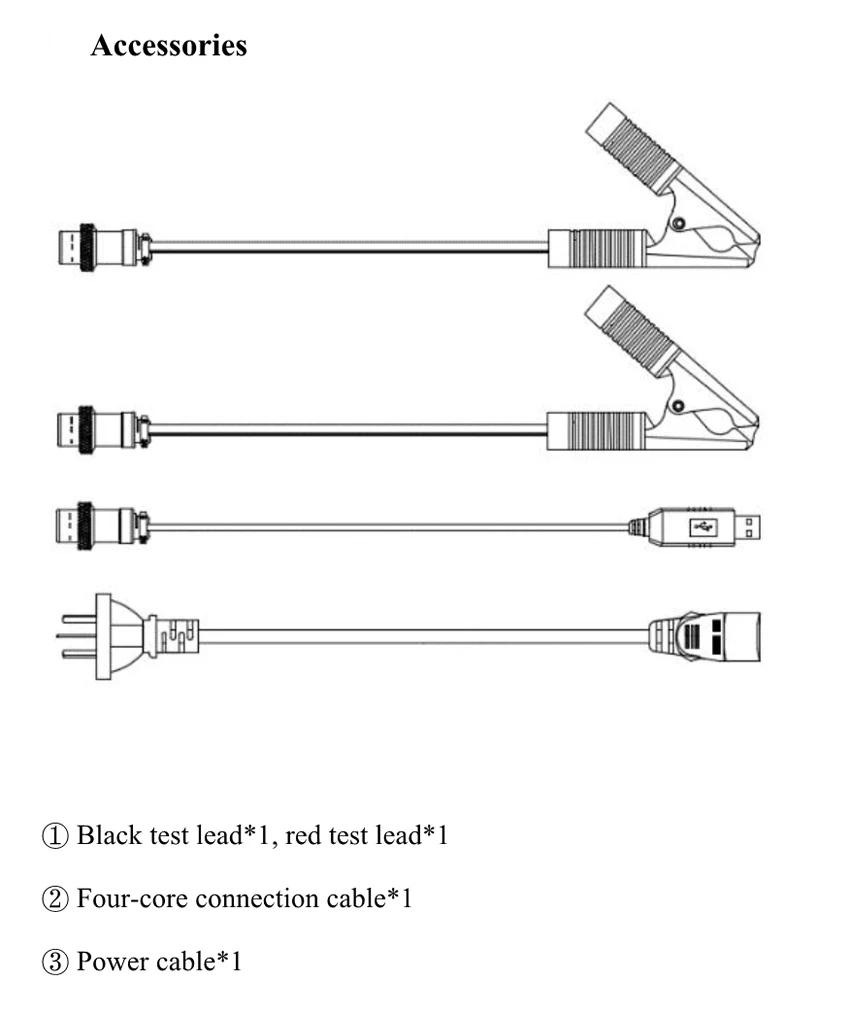

Package Included:
- 1 x Tester
- 1 x Online Cable
- 1 x Power Cable
- 1 x Testing Clip Cable
