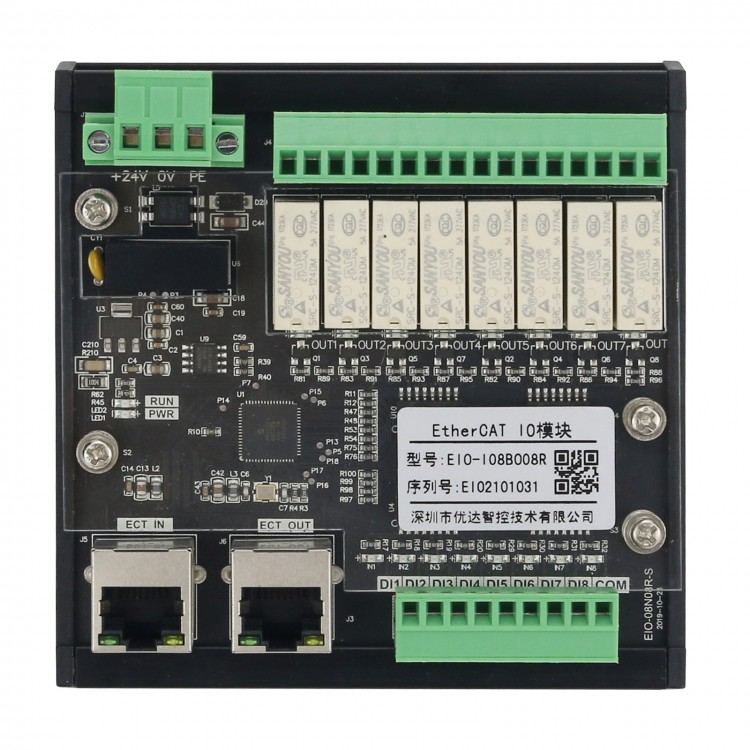

EIO-I8BO8R IO Module PLC Input Output Module 8DI 8DO Supporting For EtherCAT Communication Protocol
Technical Parameters:
Digital Input:
- Number of channels: 8
- Input type: Bidirectional optocoupler (NPN/PNP)
- Filter time: 0.5ms
- Rated level: 24VDC (-15%/+20%)
- Port protection: None
- Isolation withstand voltage: 3750Vrms (MIN)
Digital Output:
- Number of channels: 8
- Output type: Relay
- Rated level: 30VDC/250VAC
- "1" signal level: the relay dry contact is closed
- "0" signal level: the relay dry contact is disconnected
- Maximum output current (single channel): 1.0A
- Maximum impulse current (single channel): 2.0A
- Maximum total output current: 8.0A
- Port protection: None
- Isolation withstand voltage: 3750Vrms (MIN)
Physical Characteristics:
- Power supply voltage: 24VDC (-15%/+20%)
- Communication protocol: For EtherCAT
- Communication rate: 100Mbps
- Address configuration: automatic scanning
- Product size: 103 x 103 x 46.7mm/4.1 x 4.1 x 1.8" (WxDxH)
- Installation method: DIN rail installation
Package Included:
- 1 x PLC IO Module
