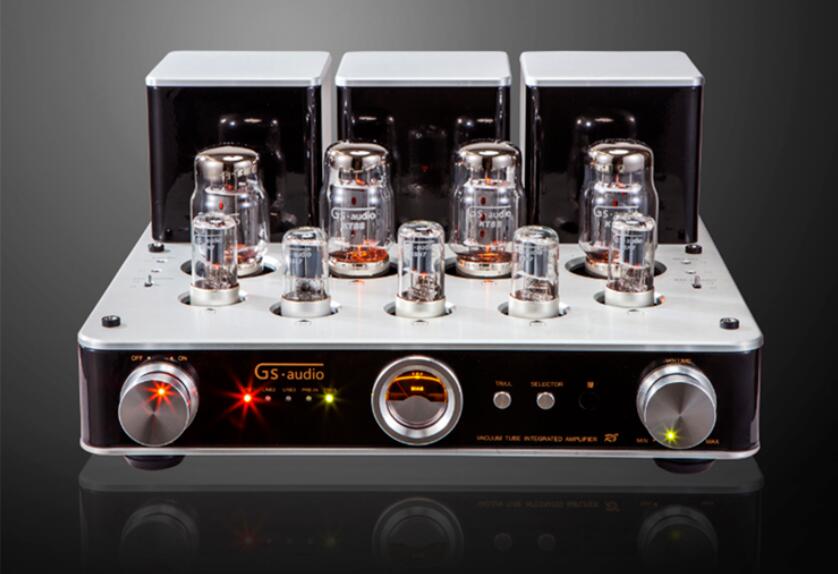

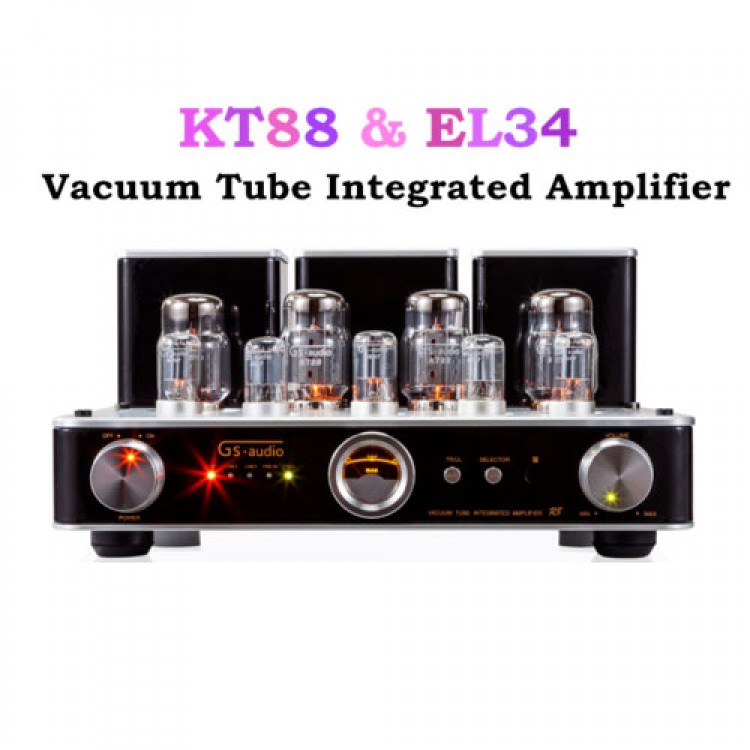

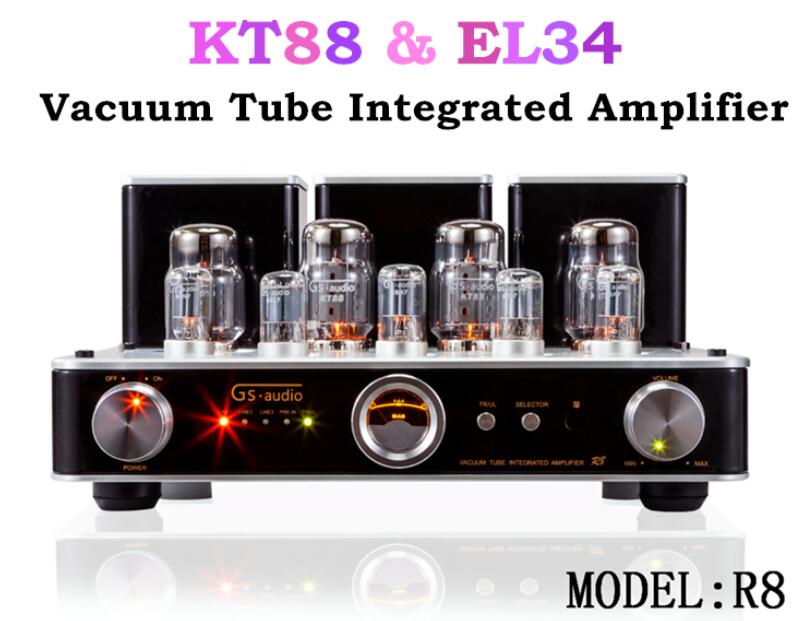

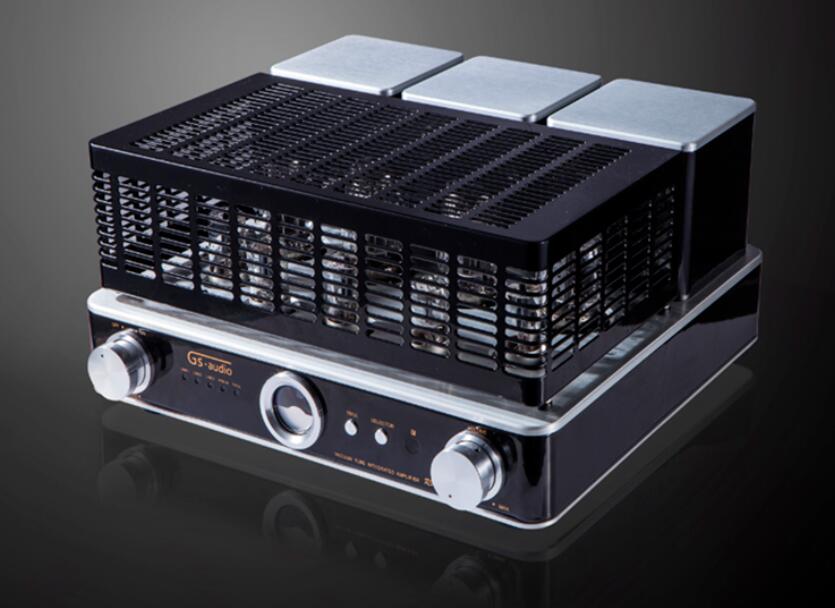

EL34 R8 Vacuum Tube Integrated Amplifier Stereo HiFi 2.0 Headphone Power Amp

EL34 R8 Vacuum Tube Integrated Amplifier Stereo HiFi 2.0 Headphone Power Amp


Main features:
- This is a Hi-end Tube Integrated Amplifier
- External EL34/KT88 tube selection function
- Triode and superlinear selection function

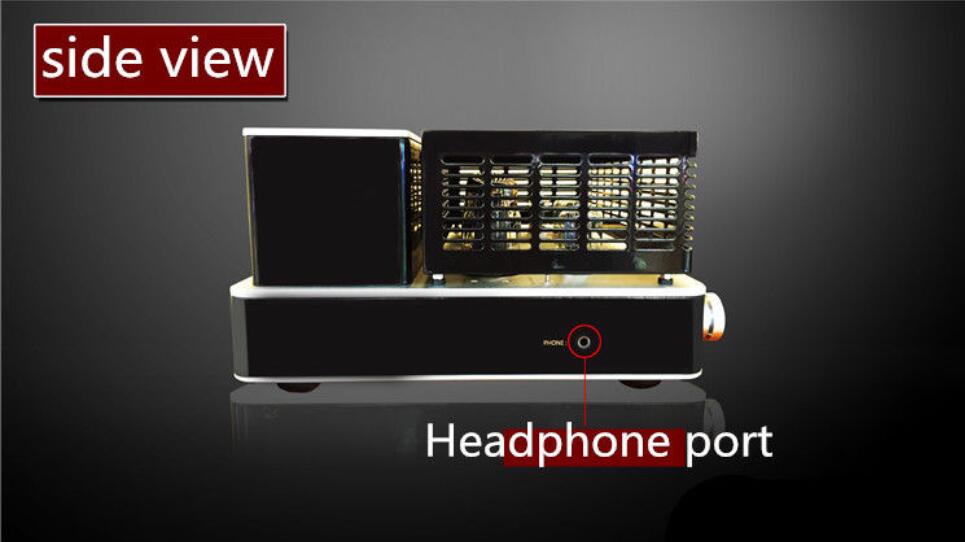

- With Headphone Amplifier function
- With pure power amp function,can the independent connect pre-amp signal input
- With remote control

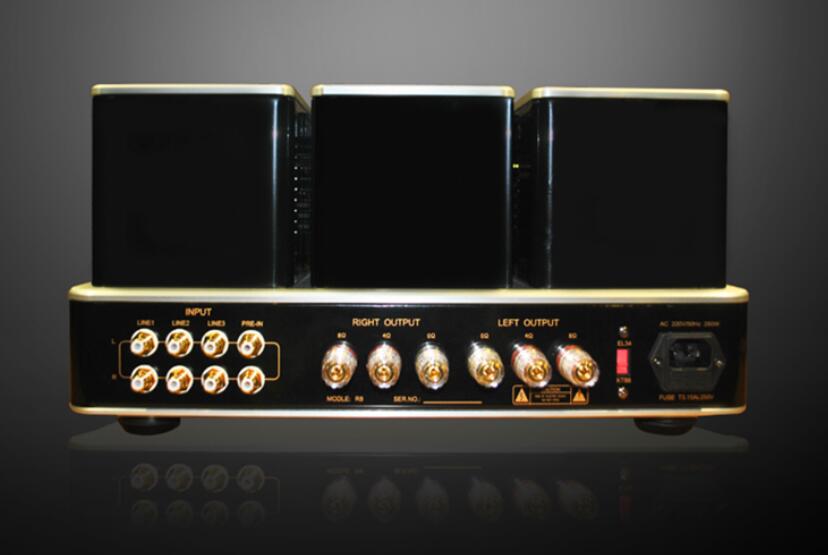

- With three-ways input

Parameters:
- Rated output power:
  25W + 25W (RMS triode working condition) & 45W + 45W (RMS Superlinear working condition) -- (KT88)
  25W + 25W (RMS triode working condition) & 40W + 40W (RMS Superlinear working condition) -- (EL34)
- Frequency Response: 10Hz ~ 40kHz (+/- 0.5db)
- Total harmonic distortion: 1% (1kHz)
- SNR: 91dB
- Input Sensitivity:380mv (integrated input);820mv (pure power amp input)
- Input impedance: 100KΩ
- Output impedance: 4Ω,8Ω
- Power supply voltage: ~ 230V ± 5% (50Hz)~115V ± 5% (50Hz)
- Whole volume: 400x250x410 (WxHxD) mm

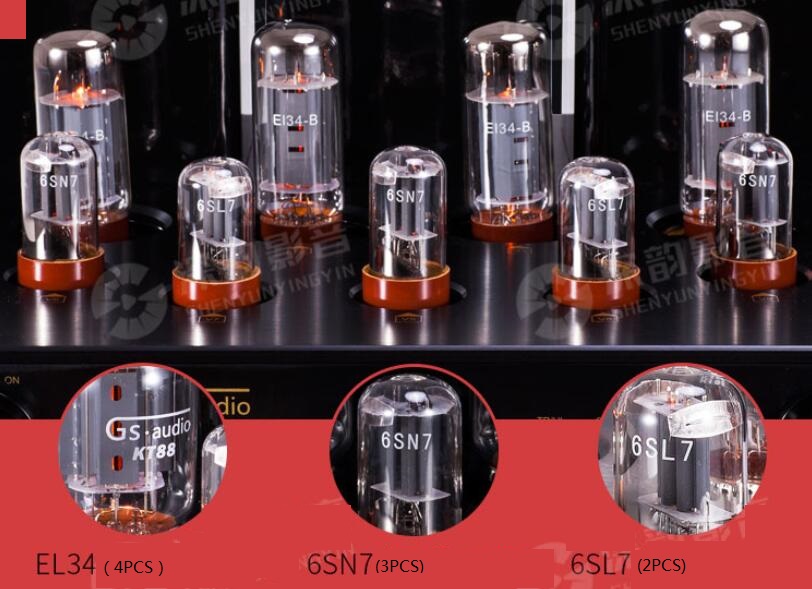

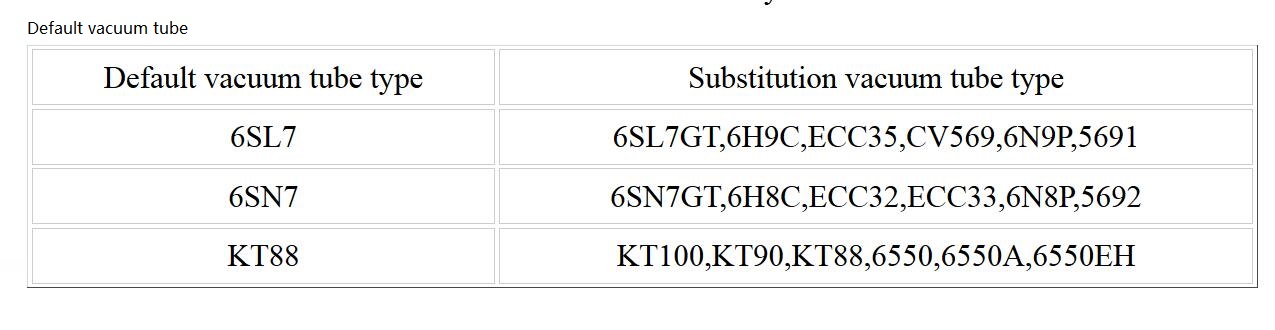

- Vacuum tubes: 6SL7x2,6SN7x3,KT88x 4
- Power consumption: 310W
- Working conditions: Temperature: 0 ℃ ~ 40 ℃ Humidity: 20% to 80%
- Storage conditions: Temperature: -20 ℃ ~ 70 ℃ Humidity: 20% to 90%
- Net Weight: 26kg

Package:
- 1 x Tube amp
- 1 x KT88/EL34
- 1 x 6SL7
- 1 x 6SN7
- 1 x Remote
- 1 x Power cord
