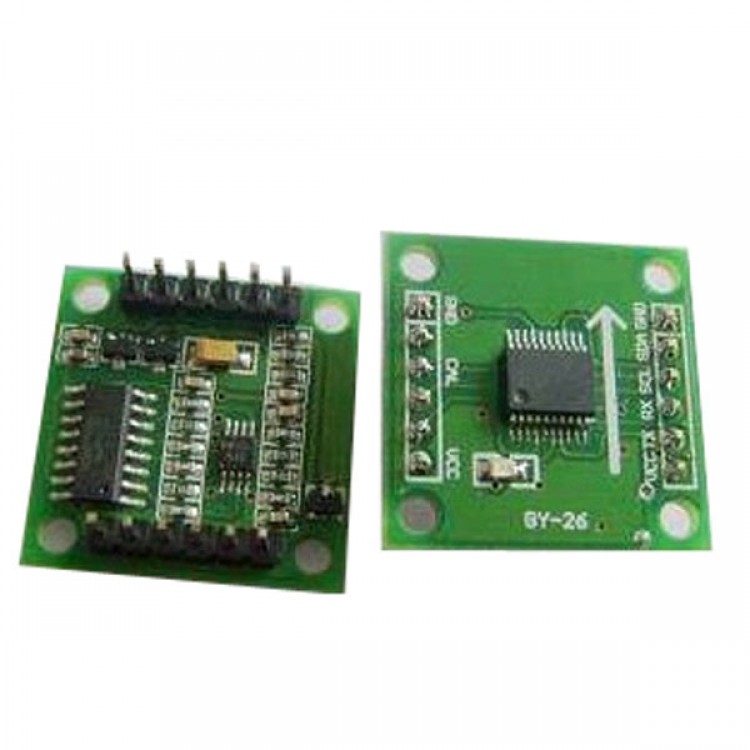

Electronic Guide Module Electronic Compass Module Robot Module
Description:
- A low cost digital compass module. Low input voltage, small consumption and size. By two Perpendicular axis in magnetic sensor, it senses magnetic component, to concluded the azimuth angle
Features:
- Small size
- High cost performance
- Serial port and IIC output layout
Product application:
- Hand hold instruments
- Robot navigation position
- Navigation system
- Autopilot used on boat
- Hexa antenna positioning
- Car GPS wire
Parameters:
- Measurement range: 0°~ 360°
- Definition rate: 0. 1°
- Measurement precision: 1°
- Repeat precision: 1°
- Response frequency: 25 HZ
- Working voltage: 3~5 V
- Working current: 5 V--15mA 3V--8 mA
- Working temperature: -20°~ 85°
- Storage temperature: -40°~ 125°
- Size: 25.6mm×25.6mm
