EleksMaker EleksDraw XY Plotter Pen Drawing Robot Laser Drawing Machine 1600mW

|


Notice:

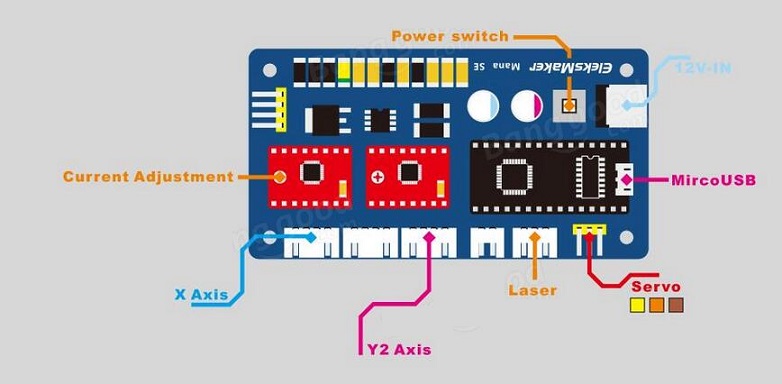

1.Please refer to the Wire Connection Diagram and connect the servo wire order as the picture shown.
2.Please select the eleksdraw machine in software.
3.Please Set the ON/OFF number to 25,NOT 1000.
Please note them.Ortherwise they might damage the servo.Please make sure you know before you bid.Thank you!

The assembling,software & operation instruction
Please follow it step by step.Thank you very much.

Description:
- This newest drawing robt will replace of your hands to finish this works just by the fool-style open source software(EleksCAM,Inkscape) controlled.
- It is an extremely versatile machine,designed to serve a wide variety of everyday and specialised drawing and writing needs on almost any flat surface.
- It allows you to use your computer to produce writing that appears to be handmade,complete with the unmistakable appearance of using a real pen (as opposed to an inkjet or laser printer) to address an envelope or sign your name.And it does so with precision approaching that of a skilled artist,and—just as importantly—using an arm that never gets tired.

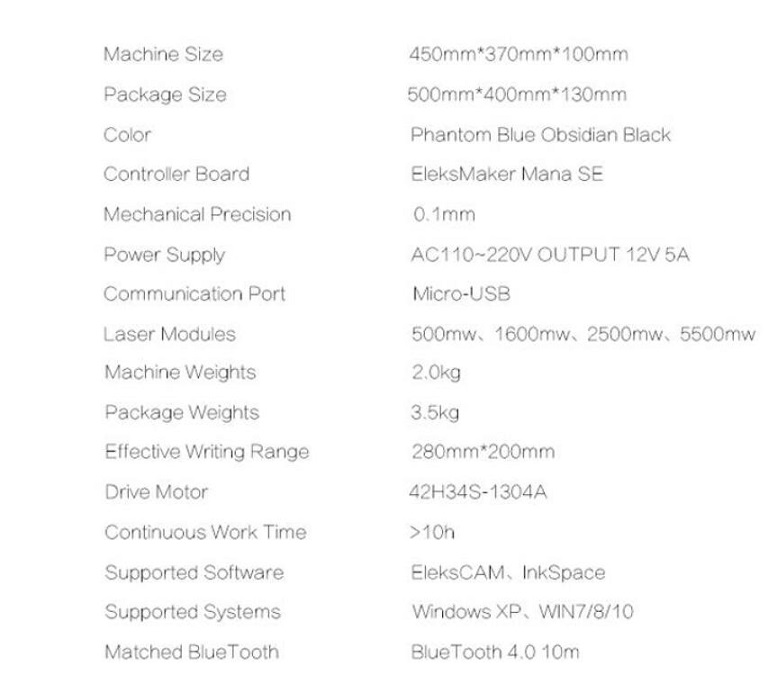

Specifications:

- Type:DIY 2 Axis Smart Drawing Robot
- Brand:EleksMaker
- Model:EleksDraw

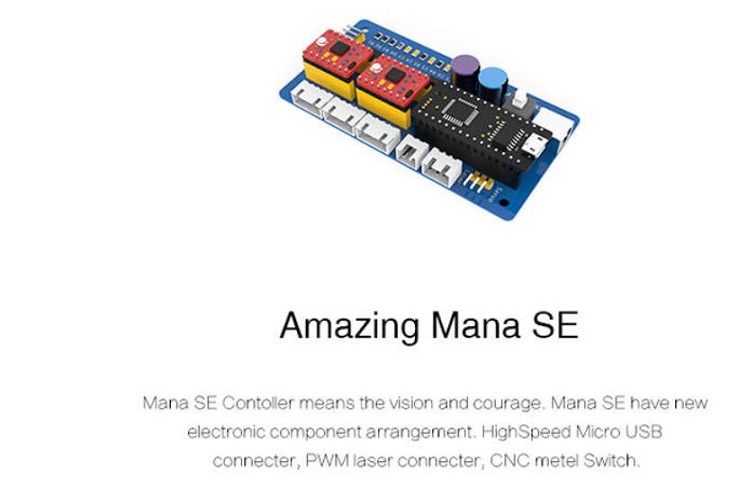

- Laser Drive Board Model:Mana SE
- Stepper Motor Model:42H34S-1304A
- Material:Acrylic Plate,Aluminum Rod
- Color:White,Blue,Dark
- Laser Power:1.6W/1600mW
- Input Power:AC 110-220V
- Output Power:DC 12V
- Current:5A
- Engraving Accuracy:0.1mm
- Continue Working Time:More than 10 hours
- Supported Software:EleksCAM,InkSpace
- Supported System:Window XP,WIN7/8/10
- Machine Connected Port:Micro-USB
- Matched Bluetooth:BlueTooth 4.0 10m
- Engraving Area:Apprex.280x200mm
- Machine Size:Apprex.450x370x100mm
- Package Box Size:Apprex.500x400x130mm
- Machine Net Weight:Apprex.2.0Kg
- Package Weight:Apprex.3.5Kg

Features:

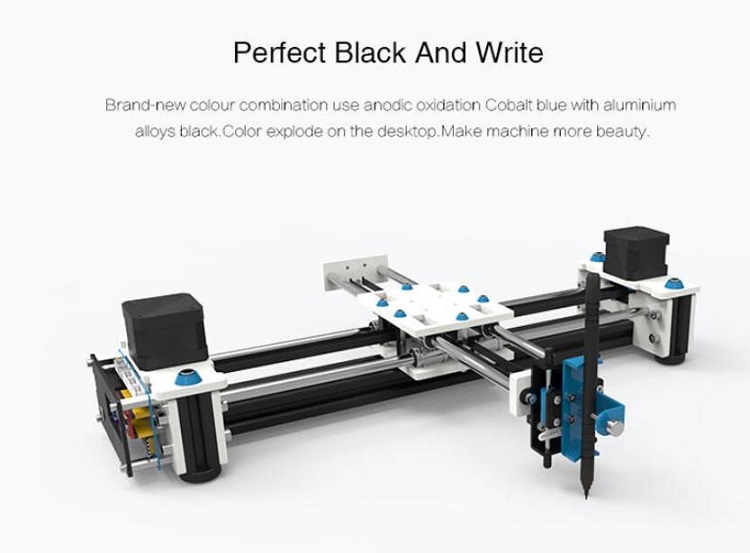

- EleksMaker EleksDraw DIY mini 2 axis drawing robot machine
- XY structure with stepper motor driving,high accuracy up to 0.1mm
- Large working stroke up to 28 x 20cm
- Comes tested,but without assembled

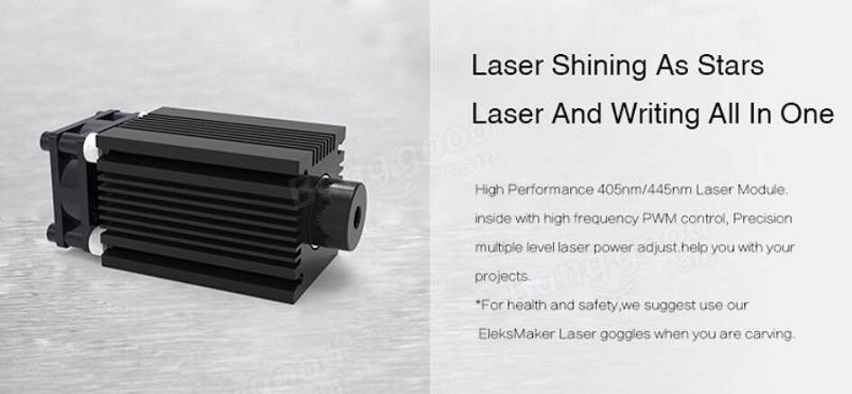

- With 1600mW powerful laser module

Applications:
- Formal invitations
- Place cards for formal dining
- Signing diplomas and other certificates
- Addressing envelopes and boxes
- Decorating lunch bags
- Computer generated artwork
- Technical drawing
- Writing signatures

Package List:
- 1 x EleksDraw Drawing Machine (Unassembled)
- 1 x 1600mW Laser Module
- 1 x Power Adapter
- 1 x USB Cable
- 1 x Plug Adapter
