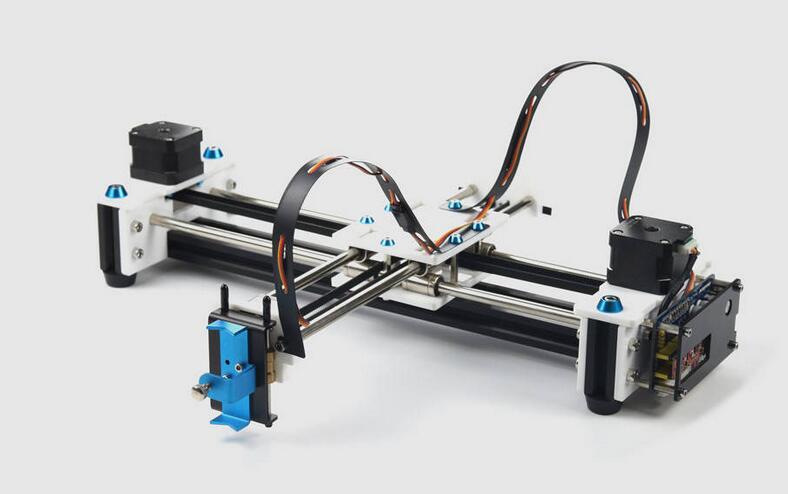

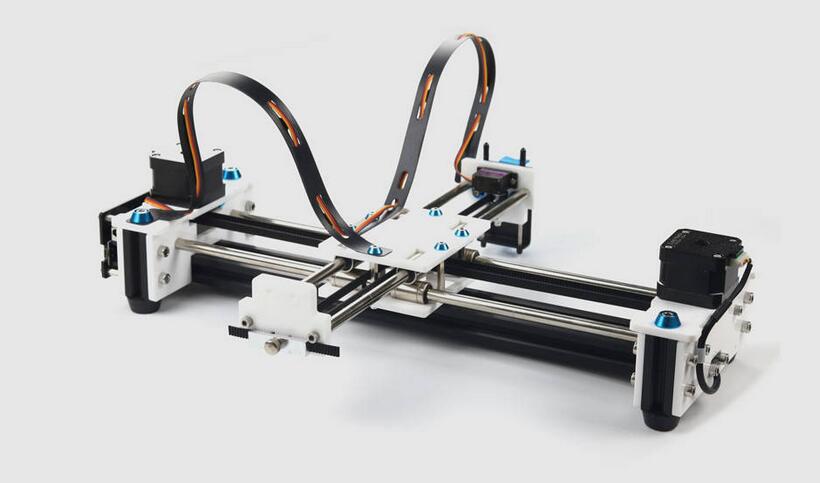

EleksMaker EleksDraw XY Plotter Pen Drawing Robot Laser Drawing Machine 2500mW

Tags: Drawing Machine

Availability: Out Of Stock

  • Price:$307.37
  • Price in reward points: 3074 Reward Points: 31
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $301.22 $295.08 $285.85 $273.56 Contact US
Quantity:

EleksMaker EleksDraw XY Plotter Pen Drawing Robot Laser Drawing Machine 2500mW





Notice:

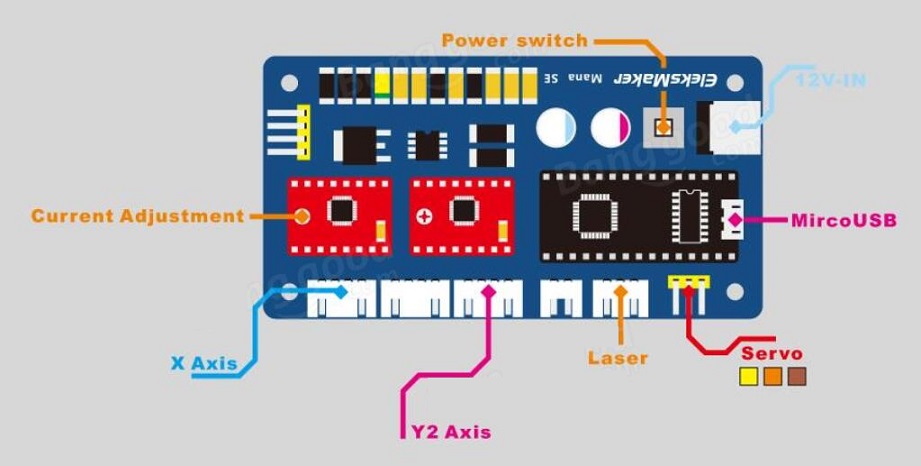

1.Please refer to the Wire Connection Diagram and connect the servo wire order as the picture shown.
2.Please select the eleksdraw machine in software.
3.Please Set the ON/OFF number to 25,NOT 1000.
Please note them.Ortherwise they might damage the servo.Please make sure you know before you bid.Thank you!

The assembling,software & operation instruction
Please follow it step by step.Thank you very much.

Description:

- This newest drawing robt will replace of your hands to finish this works just by the fool-style open source software(EleksCAM,Inkscape) controlled.
- It is an extremely versatile machine,designed to serve a wide variety of everyday and specialised drawing and writing needs on almost any flat surface.
- It allows you to use your computer to produce writing that appears to be handmade,complete with the unmistakable appearance of using a real pen (as opposed to an inkjet or laser printer) to address an envelope or sign your name.And it does so with precision approaching that of a skilled artist,and—just as importantly—using an arm that never gets tired.

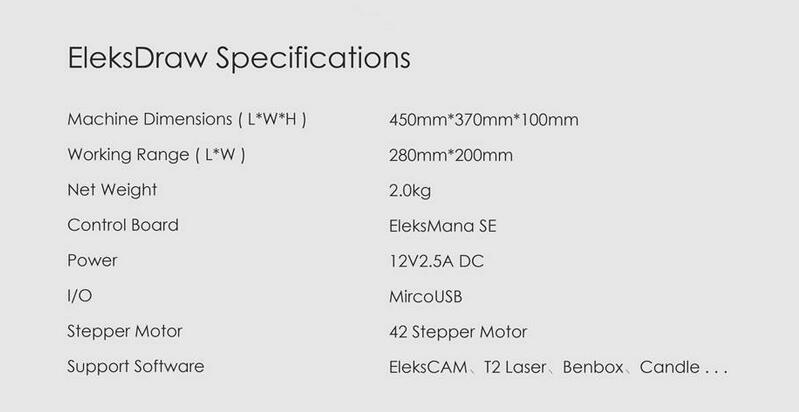

Specifications:

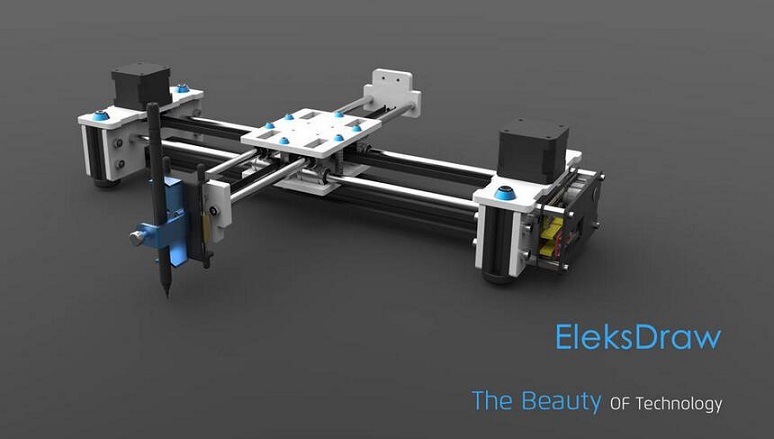

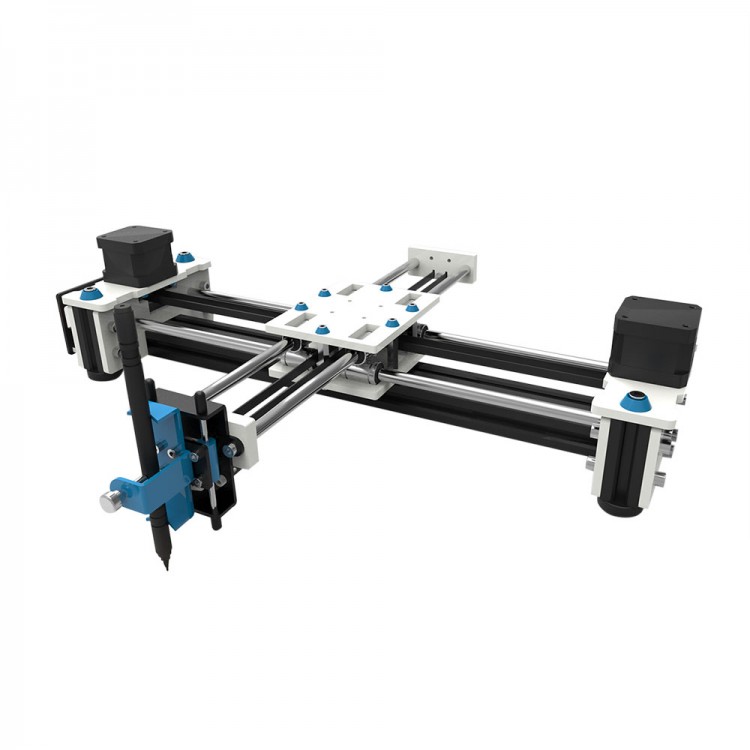

- Type:DIY 2 Axis Smart Drawing Robot
- Brand:EleksMaker
- Model:EleksDraw

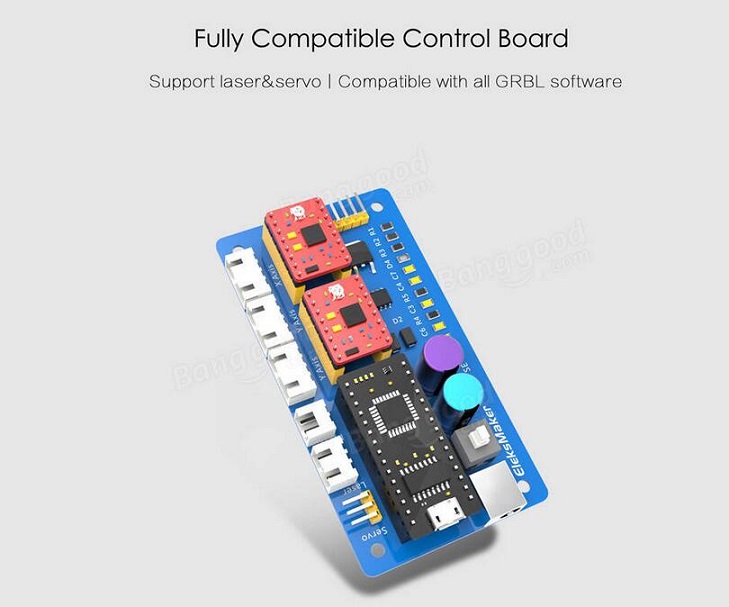

- Laser Drive Board Model:Mana SE
- Stepper Motor Model:42H34S-1304A
- Material:Acrylic Plate,Aluminum Rod
- Color:White,Blue,Dark
- Laser Power:2.5W/2500mW
- Input Power:AC 110-220V
- Output Power:DC 12V
- Current:5A
- Engraving Accuracy:0.1mm
- Continue Working Time:More than 10 hours
- Supported Software:EleksCAM,InkSpace
- Supported System:Window XP,WIN7/8/10
- Machine Connected Port:Micro-USB
- Matched Bluetooth:BlueTooth 4.0 10m
- Engraving Area:Apprex.280x200mm
- Machine Size:Apprex.450x370x100mm
- Package Box Size:Apprex.500x400x130mm
- Machine Net Weight:Apprex.2.0Kg
- Package Weight:Apprex.3.5Kg

Features:
- EleksMaker EleksDraw DIY mini 2 axis drawing robot machine
- XY structure with stepper motor driving,high accuracy up to 0.1mm
- Large working stroke up to 28 x 20cm
- Comes tested,but without assembled

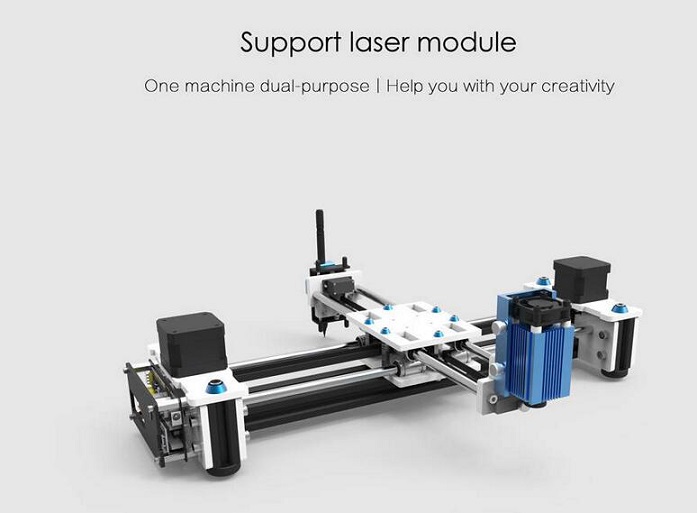

- With 2500mW powerful laser module

Applications:
- Formal invitations
- Place cards for formal dining
- Signing diplomas and other certificates
- Addressing envelopes and boxes
- Decorating lunch bags
- Computer generated artwork
- Technical drawing
- Writing signatures

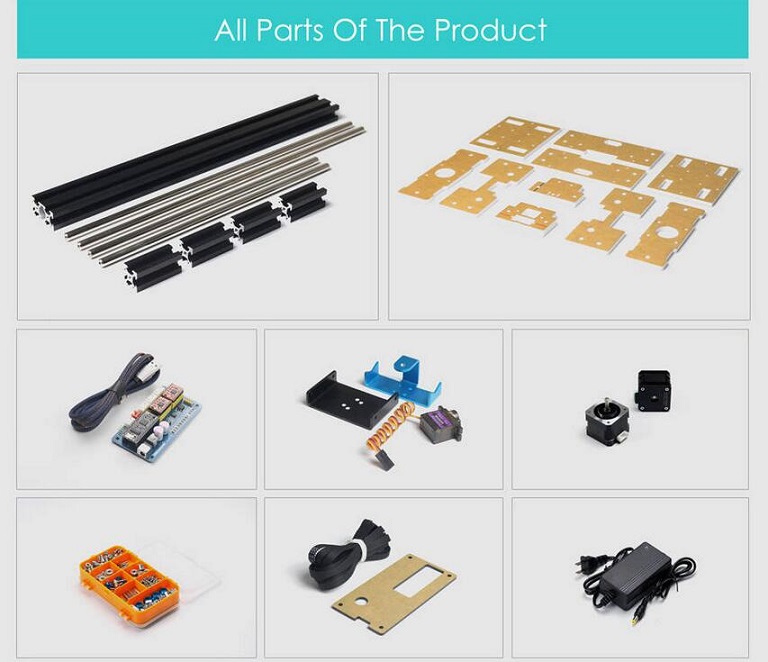

Package List:

- 1 x EleksDraw Drawing Machine (Unassembled)
- 1 x 2500mW Laser Module
- 1 x Power Adapter
- 1 x USB Cable
- 1 x Plug Adapter
