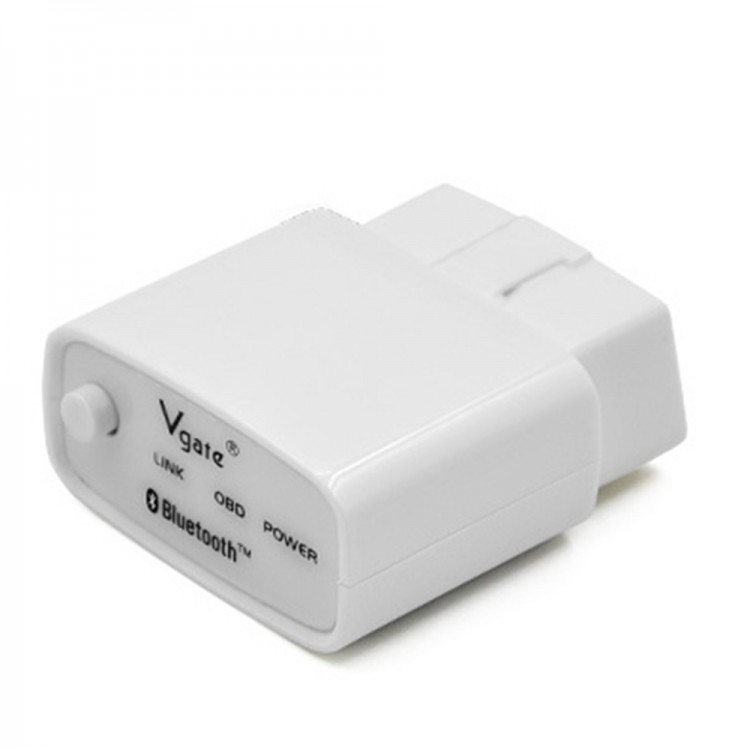

ELM327 Vgate iCar Bluetooth OBD2 Scanner Auto Car Diagnostic Tool Support DOS Windows

Availability: In stock, usually dispatched in 1 business day

  • Price:$16.68
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $0.00 $0.00 $0.00 $0.00 Contact US
Quantity:

ELM327 Vgate iCar Bluetooth OBD2 Scanner Auto Car Diagnostic Tool Support DOS Windows

GATE Icar Elm327 bluetooth:

- Vgate ELM327 is the latest PC-based scan tool. It supports all OBD-II protocols and is dispatched with a number of compatible programs. The processor is an ELM327.
- OBD-II Software for ELM327 is a free program that allows you to use your PC and a hardware interface to get the information from your car's computer.
- The program is very user-friendly, and easy to learn. It is also very easy to install:
simply extract the files into a folder on your computer's hard drive, and you're ready to go. To uninstall the program, simply delete the entire contents of the folder where the program resides.
- iCar obdII ELM327 Bluetooth scan tool is a high-quality automotive scanning tool,
contact bluetooth 2.0 supports all OBD-II protocols :
- Automatic
- SAE J1850 PWM(41.6Kbaud)
- SAE J1850 VPW(10.4Kbaud)
- ISO9141-2(5 baud init,10.4Kbaud)
- ISO14230-4 KWP(5 baud init,10.4 Kbaud)
- ISO14230-4 KWP(fast init,10.4 Kbaud)
- ISO15765-4 CAN(11bit ID,500 Kbaud)
- ISO15765-4 CAN(29bit ID,500 Kbaud)
- ISO15765-4 CAN(11bit ID,250 Kbaud)
- ISO15765-4 CAN(29bit ID,250 Kbaud)
  A.SAE J1939 CAN(29bit ID,250*Kbaud)
  B.USER1 CAN(11*bit ID,125*Kbaud)
  C.USER2 CAN(11*bit ID,50*kbaud)

Default settings(user adjustable)
- Works with all OBD-II compliant vehicles
- Wireless (Bluetooth) 5~10 meter
- Software included for Palm, PDA,Mobile(Andrews,java,blackmerry,etc)
- Software included for Windows PC
- Software included for Windows Smartphone

Functions:
- Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
- Clear trouble codes and turn off the MIL ("Check Engine" light)
- Display current sensor data, including:
- Engine RPM
- Calculated Load Value
- Coolant Temperature
- Fuel System Status
- Vehicle Speed
- Short Term Fuel Trim
- Long Term Fuel Trim
- Intake Manifold Pressure
- Timing Advance
- Intake Air Temperature
- Air Flow Rate
- Absolute Throttle Position
- Oxygen sensor voltages/associated short term fuel trims
- Fuel System status
- Fuel Pressure
- Many others...

The software supports two platforms - DOS and Windows.
OBD-II Protocols:
- ISO15765-4 (CAN)
- ISO14230-4 (KWP2000)
- ISO9141-2
- J1850 VPW
- J1850 PWM
- Output protocol: RS232
- Baud rate: 9600 or 38400
- Indicator LEDs: OBD Tx/Rx, RS232 Tx/Rx, Power
- Operating voltage: 12V, internal protection from short circuits/overvoltages
- Nominal idle current: 45 mA

Features:
- The program lets you perform the following operations:
- Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
- Clear trouble codes and turn off the MIL ("Check Engine" light)

Display current sensor data, including:
- Engine RPM
- Calculated Load Value
- Coolant Temperature
- Fuel System Status
- Vehicle Speed
- Short Term Fuel Trim
- Long Term Fuel Trim
- Intake Manifold Pressure
- Timing Advance
- Intake Air Temperature
- Air Flow Rate
- Absolute Throttle Position
- Oxygen sensor voltages/associated short term fuel trims
- Fuel System status
- Fuel Pressure
- Many others...

Upcoming Features:
- Data graphing and logging
- Freeze Frame data
- Continuous and Non-Continuous Oxygen Sensor test results

Free software:
Scantool.net
- GM Mode 22 Scan Tool by Terry
- OBD Gauge for PalmOS and Pocket PC by Dana Peters
- OBD Logger by Jonathan Senkerik
- OBD-II ScanMaster by Wladimir Gurskij (ScanMaster 3.52 - local copy)
- obd2crazy.com
- OBD2 Scantool by Ivan Andrewjeski
- OBDII for ELM322 by David Huffman
- pyOBD by Donour Sizemore for MacOSX and Linux
- RDDTC by Pete Calinski
- Real Scan by Brent Harris
- ScanTest for Pocket PC by Ivan Ganev aka a-ser
- wOBD by WDT

Aavailable cars:
- Benz ST12001/02/03W203 C200K (ISO)
- BMW X5 2002 (ISO) Chevrolet Aveo (ISO)
- Citroen C3 2004 (ISO) ? Daihatsu YRV 2005 (ISO)
- Daihatsu YRV Turbo 2006 (ISO)
- Fiat Tipo 2002 (ISO)
- Ford New?ocus 2006(CAN)
- Honda Accord 2006 JDM (ISO)
- Honda Accord Euro R 2004 JDM (ISO)
- Honda City GD8 (ISO)
- Honda Civic ES 1.6A (ISO)
- Honda Integra Type R DC5 JDM (ISO)
- Honda Jazz 1.4M (ISO)
- Hyundai Accent 2004 (ISO)
- Hyundai Getz 1.3A 2004 (ISO)
- Hyundai Getz 1.6M 2004 (ISO)
- Hyundai Matrix 2004 (ISO)
- HyundaiSanta Fe2.4A (ISO)
- Hyundai Sonata GLS (ISO)
- Hyundai Sonata 2005 (ISO)
- Hyundai Tuscani FX (ISO)
- Kia Carens 2005 (ISO)
- Kia Magentis 2005 (ISO)
- KiaRioLS (ISO)
- Kia Sorento SUV 2005 (ISO)
- Lexus es300 Mazda 2 (CAN)
- Mazda 5 (CAN)
- Mazda 6 (CAN)
- Mazda Premacy 2001 (ISO)
- Mazda RX8 (CAN)
- Mitsubishi Colt 2003 (ISO)
- Mitsubishi Colt Plus 2005 (ISO)
- Mitsubishi Eclipse(GST-----Turbo Car can be tested for the year 1995-2000;RS/GS----1994-1996 GS all can do;Turbo Car for the year 1996-2000,only have speed and TPS,can clear the DTCS)
- Mitsubishi Lancer Evolution IX 2006 (ISO)
- Mitsubishi Pajero 3.5 V6 2006 (ISO)
- Nissan Sunny B14 (ISO)
- Nissan Sunny VIP FB15 (ISO)
- Nissan X-Trail 2.0L 2004 (ISO)
- Nissan X-Trail 2.5L 2004 (ISO)
- Peugeot 206 2001 ?Only can show RPM
- Peugeot 206 (ISO)
- Peugeot 307 (ISO)
- Peugeot 407 (ISO)
- Renault Megane II 2005 (ISO)
- Renault Kangoo 2006 (ISO)
- Subaru Impreza 1.6TS 2002 (ISO)
- Subaru Impreza WRX 2005 (ISO)
- ToyotaCamry 2.0A 2004 (ISO)
- ToyotaCamry 2.4A 2005 (ISO)
- ToyotaCorolla Altis 1.6A 2005 (ISO)
- ToyotaCorolla GLXi G8 1999 (ISO)
- ToyotaCorolla G9 2002 (ISO)
- ToyotaVios 2004 (ISO)

Not available veichles:
- Mazda 323 Protege 2003 (OBD-I)
- Mitsubishi Lancer 1.6M 2006
- Nissan Sunny (N16)
- Nissan Cefiro (Teana) 2005
- Nissan sentra 1.8 2000/2005
- Nissan Cefiro (Teana) 2005
- Proton Perdana V6
- Subaru Legacy GT 2005
- Toyotacamry 2002
- ToyotaWish JDM (Missing Pin 5 in DLC)
- ToyotaIST JDM (Missing Pin 5 in DLC)
- Toyotaaltis 1.8 2004
- Peugeot 206 2000
- Suzuki Jimny 1.3 2000
- Diesel engine

Package includes:
- 1 x Elm327
- 1 x CD software
