| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $70.14 | $68.71 | $66.56 | $63.70 | Contact US |

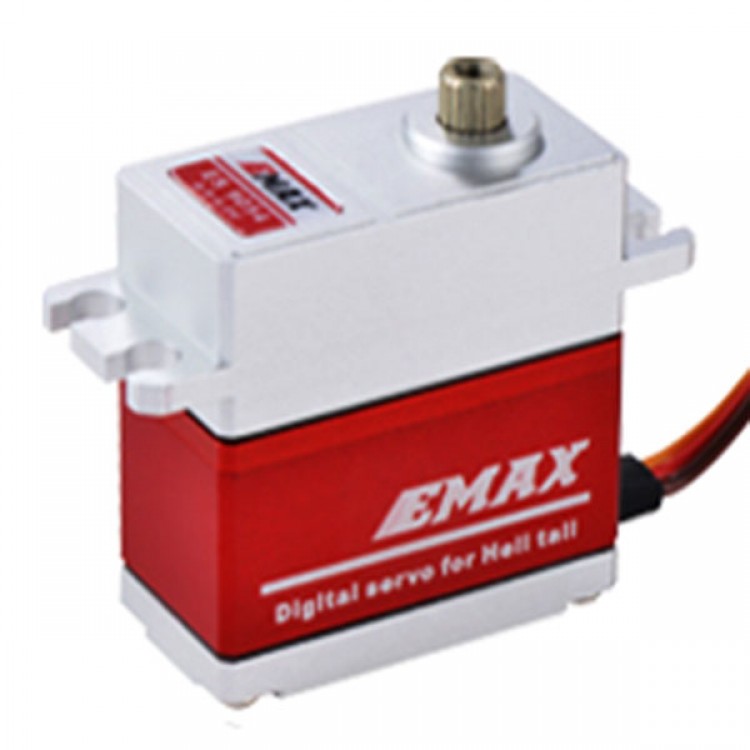

EMax ES9054 High Voltage Metal Gear Brushless Digital Servo for RC Models
Features:
- Motor: Brushless sensored motor, no heat generation, and longer life span
- Potentiometer: NOBLE potentiometer, assuring high accuracy and coherence
- Gear set: Helical gear set operate much more smoothly and quietly than spur gear set. Made of 7075 hard anodized aluminum which is widely used in aviation industry, enhancing servo hardness and smoothness
- Special inner structure: enhanced stainless structure, making the servo stronger and tougher
- Created brushless drvie PCB, high sensitivity, dead band less than 1us, overcomes the abrupt movement of the gears
Specifications:
- Operating voltage: 4.8-6.0V
- STD Direction: Counter clockwise/Pulse traveling 1500 to 1900usec
- Stall torque: 14.5kg.cm/4.8V, 20kg.cm/6.0V
- Operating speed: 0.16sec/60degree at no load/4.8V; 0.13sec/60degree at no load/6.0V
- Dimension: 40*20*38.4mm
- Weight: 72g
- Plug available: FUT, JR
