EN_HHN03 Dual Input 1080P Multifunctional Video Encoder 2xHDMI-compatible Input Encoder for Live Streaming/NVR

EN_HHN03 Dual Input 1080P Multifunctional Video Encoder 2xHDMI-compatible Input Encoder for Live Streaming/NVR

Description:
- Pull out network cameras/computer network streams/live streaming room addresses, live streaming rooms, and outdoor monitoring cameras for synchronous input into the device. After secondary editing, the image is integrated into a picture in picture or stacked form and output through HDMI-compatible to the capture card as a USB camera connected to a direct insertion partner.
- The MP4 file on the USB drive can be used as the signal source, and the MP4 file source can be set and OSD effects can be added. It can be output to the capture card through HDMI-compatible and used as a USB camera to connect to the live streaming companion.
- Support OSD graphic and text settings: Time, image, logo text, scrolling text can be added to multiple areas of the video, and color, background, and transparency can be set.
- A wider range of application scenarios, whether indoors or outdoors, without environmental restrictions, to meet the needs of more usage scenarios.

Specification:
Video input:

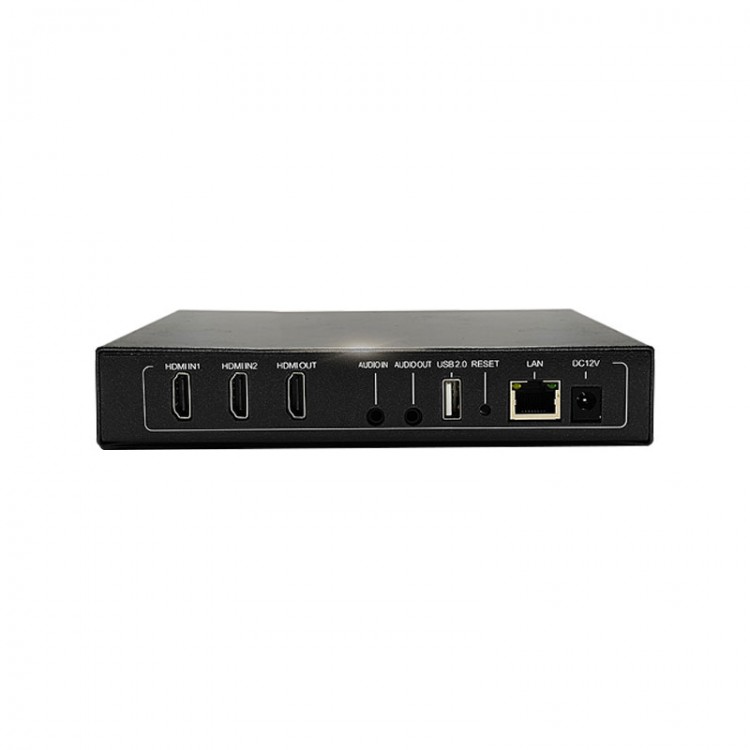

- Port input: HDMI-compatible, USB
- Network input: RTMP, RTSP, support for HIKVISION and other cameras access
- Input resolution: up to 1080P60

Video output:
- Loop output: HDMI-compatible
- Network output: RTMP, RTSP, FLV, HLS, SRT, TS, RTC, multicast, H5, etc.
- WEB preview: support

Audio input:
- Port input: 3.5mm, multi-channel audio

Audio output:
- Port output: 3.5mm
- Network output: support

Video Encoding:
- Encoding resolution: up to 1080P, same as the input source, customized
- Encoding type: H.264 Baseline, H.264 Main, H.264 High, H.265 Main, off
- Bit rate control: CBR, VBR, AVBR, FIXQP
- Bit rate: 2 - 6144kbps
- Frame rate: 5 - 30
- Key frame interval: 5 - 300
- Intelligent encoding: Normal, SmartP
- Image processing: rotation, mirror, flip, mirror flip, image cutting
- OSD special effects: text, scrolling text, image, time, mosaic, rectangle, frame, drag and drop layout

Audio Encoding:
- Encoding format: AAC, G711A, G711U, off
- Audio source: 3.5mm analog audio, each channel audio
- Sampling rate: automatic, 16K, 32K, 44.1K, 48K
- Bit rate: arbitrary setting, recommended 64kbps - 256kbps
- Channel: stereo, left channel, right channel
- Gain: support

Advanced Function:
- ONVIF: support
- Video preview: support
- Video overlay: 9-frame, 4-frame, 1+2, picture-in-picture, single frame, up and down, customized, drag and drop layout
- Push stream live: support
- Recording playback: support
- Access NVR: support
- Video carousel: support play USB flash drive or SATA SSD
- Proxy referral: support pull stream transfer push and receive stream transfer push
- Console: WEB management, mini program management, module parameter

System Functions:
- Basic functions: network service, WiFi, firmware upgrade, passwords management, restart, timing restart, reset, NTP
- Device searching: support

General Parameters:

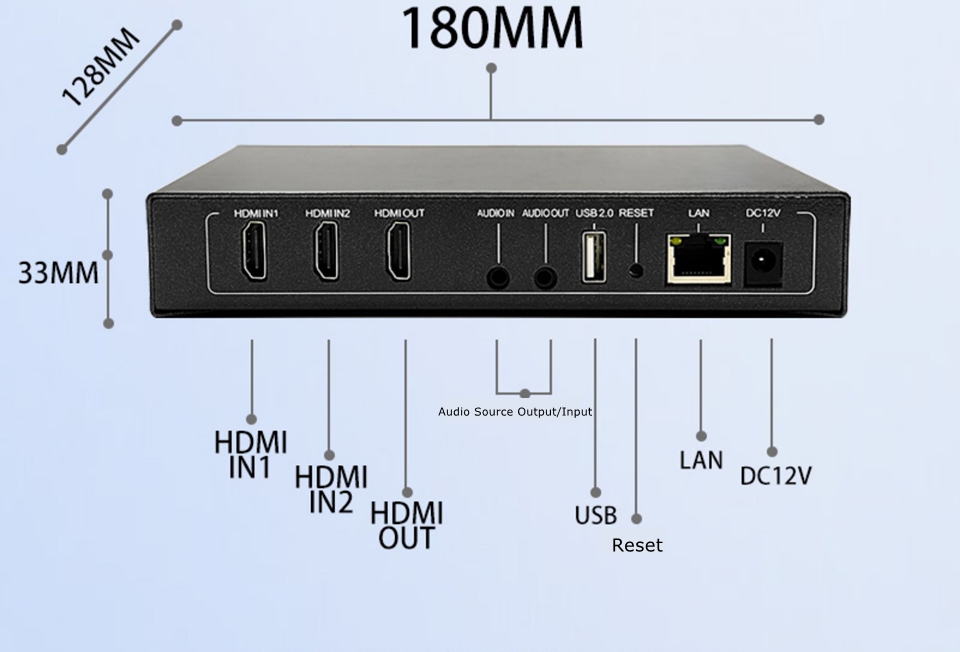

- Product size: 180 x 128 x 33mm
- Net weight: 701g
- OLED screen: support
- Power supply: DC12V 2A
- Environmental temperature: 0 - 45℃

Package Included:
- 1 x Video Encoder
- 1 x Power Adapter
- 1 x User Manual
