Engraving Laser Module Blue-Violet Light Cutting Laser Module Output Power 40W Fixed Focus 450NM

Availability: In stock, usually dispatched in 1 business day

  • Price:$120.23
  • Price in reward points: 1202 Reward Points: 12
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $117.83 $115.42 $111.81 $107.00 Contact US
Quantity:

Engraving Laser Module Blue-Violet Light Cutting Laser Module Output Power 40W Fixed Focus 450NM

Features:

- High-quality laser module

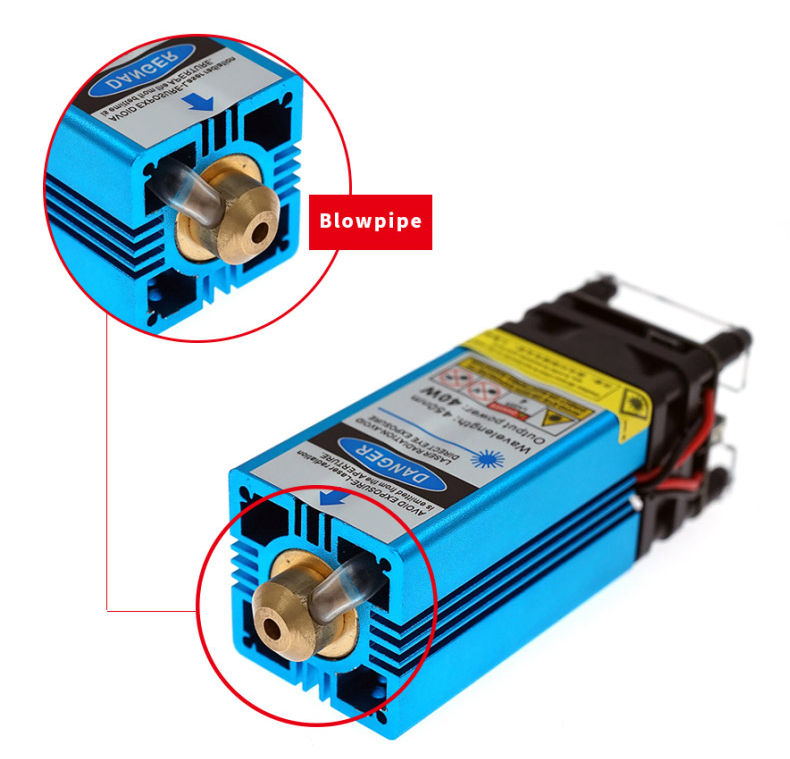

- The blower pipe can blow away the smoke and dust on the lens and objects, so that the engraving has no brushstrokes and burrs, ensuring a better engraving effect, preventing dust from corroding the lens, and effectively extending the life of the laser head
- Low noise, good heat dissipation
- Widely used in many industries
- High precision
- Adjustable power

Specifications:
- Laser wavelength: 450NM (blue-violet light)
- Power supply voltage: 12V
- Light source scheme: LD + FAC + C + LENS
- Laser type: semiconductor blue
- Actual output power: 5500MW-6000MW
- Shell material: aviation aluminum
- Laser wavelength: 450NM

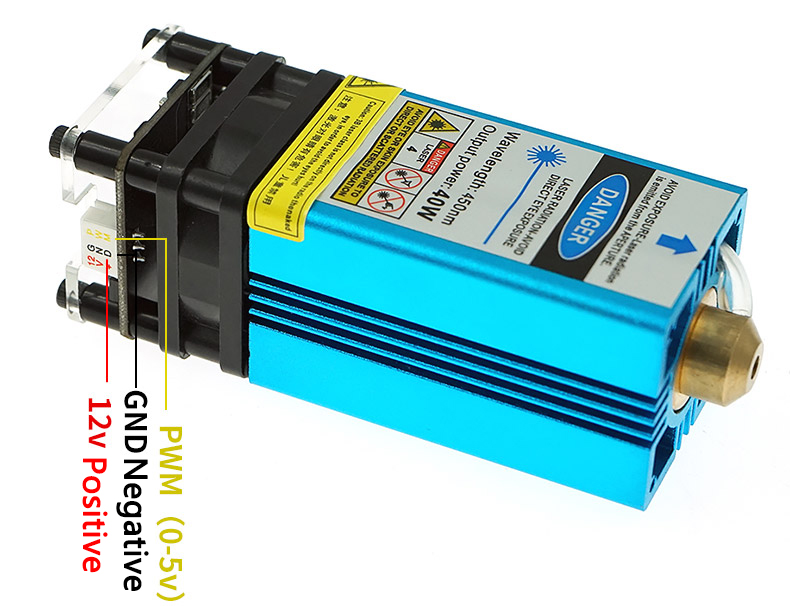

- Control interface: PWM/TTL (voltage 0-5V)
- Laser life: 16800 hours
- Beam shape: spot (fixed focal length 12.5MM)

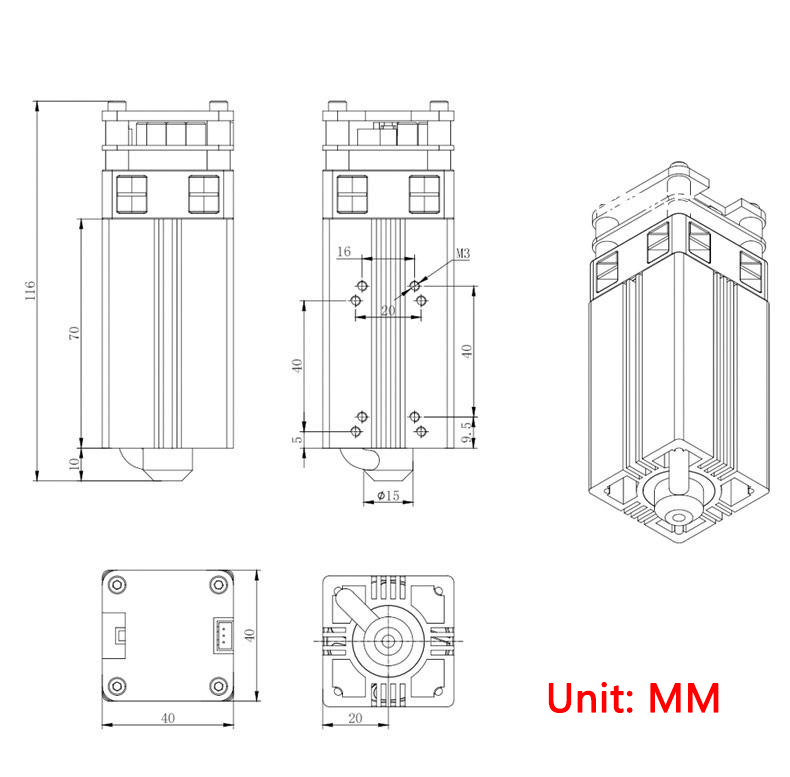

- Product size: 116*40*40MM

Package Included:
- 1 x Set of Laser Module

Attention:
1. It is forbidden to irradiate human body or eyes!
2. Please not use in flammable and gaseous environments to avoid fire and explosion.
3. Forbid children to come into contact with this laser product.
4. Please not open the module to prevent damage.
5. If you need to directly connect to a power supply, please prepare a 12V5A power cord by yourself, cut off the DC plug of the power cord, and then cut off the 3PIN line, and connect the red wire to the red wire, and the black wire to the black wire. No special treatment to yellow wire. Then do the insulation treatment, you can plug it into the socket and use it directly.
6. The laser width is 40MM, suitable for CNC3018PLUS engraving machine and DIY 2-axis desktop laser engraving machine, etc. Materials that can be engraved: wood, leather, bamboo, plastic, rubber, alumina, stone, ceramic, stainless steel, etc.
