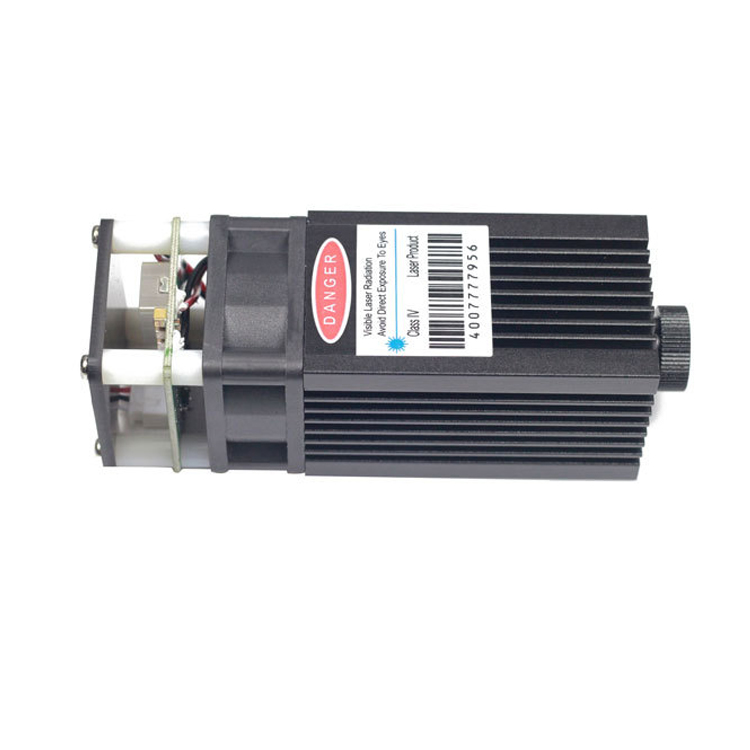

20W Engraving Laser Module 450NM Blue Light Laser Module DIY 12V Adjustable Focus Laser Head
Product Features:
- The size of the laser module is 40*40*114.3mm.
- Stable performance, good consistency and long service life.
- Connect the special plug line at the end of the product.
- Heat sink has strong heat dissipation performance, which can effectively ensure the stability and service life of the product. The product is assembled with pure copper inside, which can quickly cool down the laser diode.
- Cooling DC fan, industrial exhaust fan. Low power consumption, fast heat dissipation, low noise, energy saving and environmental protection.
- Adjustable focal length.
- Imported high-quality glass focusing lens
- Using imported diodes, small size and clear spot.
- Laser structure: The laser adopts original imported diodes, which are small in size, clear in light, large in light angle and high in straightness. The focal length can be fixed and the thickness of the light can be adjusted at the same time. Customers can adjust the focal length.
Specifications:
- Core device: For Nichia
- Wavelength: 450nm
- Electric power: 20W
- Supply voltage: 12V
- Working current: 700mA
- Spot mode: dot
- Optical part: focusing lens
- Product material: aviation aluminum
- Working temperature: ±50℃
- Lens material: imported lens
- Focal length: adjustable focus
- Laser color: blue light
- Output band: visible light
- Working life: 8,000 hours
Structural Features:
- Aluminum alloy shell + imported laser diode + K9 glass lens + constant current drive board
- Our products use imported laser diodes as core components, and apply the latest communication laser production equipment technology and technology to the production of industrial lasers. The high-performance industrial lasers produced have incomparable advantages to other equivalent products.
● Constant current intelligent feedback control circuit;
● High efficiency and high transmittance optical system;
● Low power consumption, high efficiency optical power output;
● Stable performance, good consistency and long service life.
Package Included:
- 1 x Laser Module
