450NM Engraving Laser Module Blue Laser Module Compressed Spot Laser Head Output Minimum Power 4.5W
Parameters:

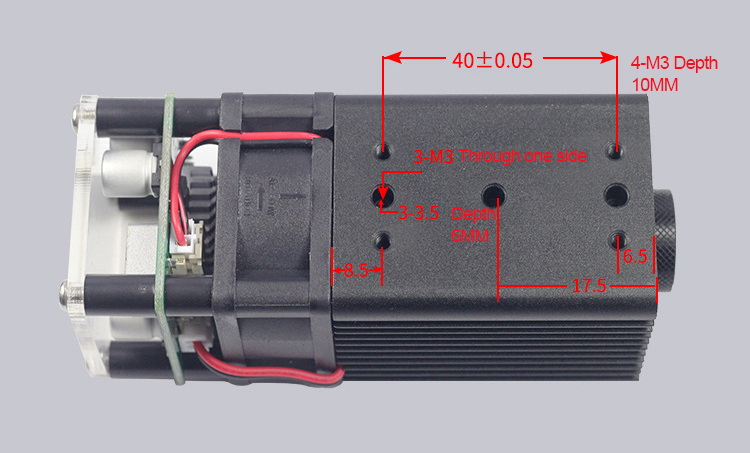

- Housing size: 40*40*95mm
- Circuit board size: 40*40mm
- Circuit board: 12V/PWM modulation board
- Wire rod: 22# 2P2.54 terminal reverse wire 80mm
- Optical lens: Diameter 6/glass telephoto
- Fan: 12V
- Product material: Aluminum 6061/Copper H59
- Product net weight: 193g
Optical Parameters (TC=25℃):
- Optical output power (Symbol: Po): Min. 4.5W; Max. 5W (at 12V power supply)
- Working current (Symbol: Iop): Typical 1.6A; Max. 1.9A
- Operating voltage (Symbol: Vop): Typical 12V
- Laser wavelength (Symbol: λp): Min. 450nm; Typical 455nm; Max. 460nm
- Electric Power (Symbol: W1): Typical 19.2W; Max. 22.8W
- Laser beam mode: dot
- Light spot size: Min. 15mm (adjustable)
- Divergence angle: None
- Working time: 10,000H
- Working mode: Pulse work
- Working temperature: 0℃ to 70℃
- Storage temperature: -40℃ to 85℃
- Enclosure polarity: empty
Features:
- Adjustable focus, minimum 15mm
- High efficiency: The engraving laser can continuously engrave, with high efficiency, high stability and trustworthy
- High definition: Engraving laser module, diverse engraving, fast/precise engraving, high definition
- High quality: Aging test will be carried out before shipment, and product quality is strictly controlled
- High precision: high engraving efficiency, good engraving precision, capable of engraving a variety of materials
- Using brand new imported glass lens and laser diode, long service life and good stability.
- The output power is up to 5W. Electric power 19.2W~22.8W.
- Good heat dissipation slot, 12V/PWM modulation board. 12V cooling DC fan, industrial exhaust fan, low power consumption, fast heat dissipation, low noise, energy saving and environmental protection.

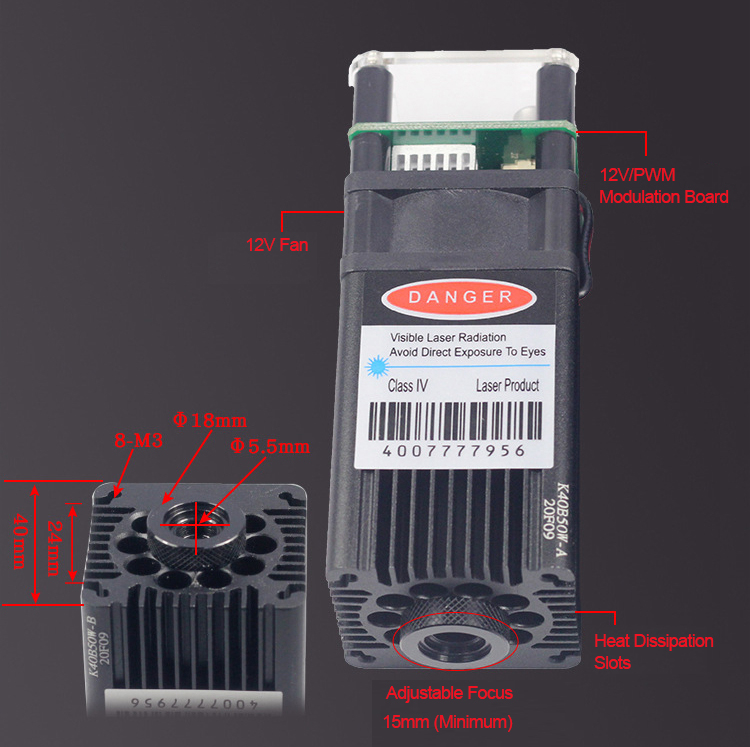

- 450nm 4.5W blue laser module TTL modulation. Adjustable focal length, rotating the head of the laser left and right, you can adjust the focal length according to the distance of the working distance to a suitable spot.
- The high-power micro-engraving laser can engrave the following materials: wood, stone, paper, bamboo, horns, thin leather (wallet), rubber stamp, photosensitive stamp, printing paper, card board.
Package Included:
- 1 x Set of Laser Module
Note:
- The color, structure size, and spot of the engraving laser module can be customized. If necessary, please contact customer service staff.
