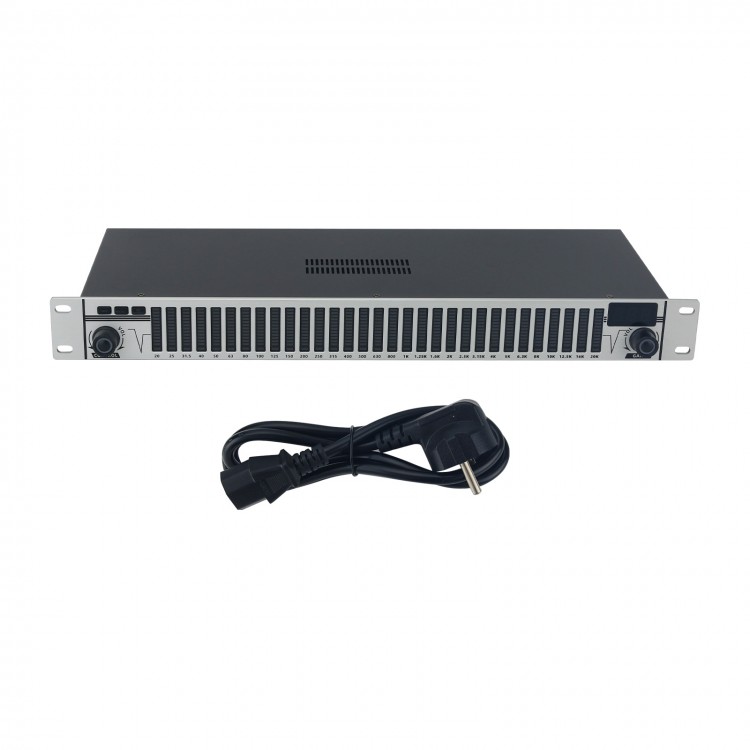

EQ-A31 Professional 31 Band Equalizer Digital Equalizer (Silver) for Stage Home Karaoke Studio Uses

EQ-A31 Professional 31 Band Equalizer Digital Equalizer (Silver) for Stage Home Karaoke Studio Uses

Features:
- It adopts a new DSP digital processor technology. It is used for digital and analog integration, combined with high-quality processing of audio input and output, so that the functional parameters are improved. It helps to improve the overall metrics of the sound system. It is superior to traditional hand-tuned equalizers.
- Audio outputs adopt traditional DOP in-line components to restore all standard music tones.
- Suitable for: radio stations, multimedia conference rooms, recording studios, multi-functional entertainment halls, live event performance systems, home theaters, HIFI audio and venues with strict requirements for system specifications.
- Standard 1U thin and light rack.
- Two-channel synchronous control of 31-band EQ equalizer, DSP digital and analog integration combined.
- Each EQ segment has an LED spectrum indication to help users clearly see the pitch during use.
- Real-time 31-band frequency point hopping, with spectral accuracy of 99%.
- State-of-the-art noise gate noise reduction: It eliminates noise in the system. The threshold adjustment range is fixed.
- Multiple types of input and output interfaces: TRS6.35/RCA/XLR balanced interfaces.
- EQ Bypass: Bypasses the graphic equalizer in the signal path.
- With save and recall function: 10 modes can be saved for calling.

Technical Parameters:
- Power supply type: 220V
- Sound transmission gain: -1dB or 11dB
- Line input impedance: 15KΩ
- Line output impedance: 20Hz-20kHz
- SNR: 82dB
- Power consumption: 30W

Package Included:
- 1 x Digital Equalizer

Packaging Details:
- G.W.: 3kg
