ICON UPOD PRO USB Sound Card + PC-K320 Condenser Microphone + Mic Boom Arm + Tripod Stand + Cables

ICON UPOD PRO USB Sound Card + PC-K320 Condenser Microphone + Mic Boom Arm + Tripod Stand + Cables

Attention:
* The microphone is available in red, silver, and black. Color will be shipped at random. Installation and setup are not included.

ICON UPOD PRO USB Sound Card:
1. Features:

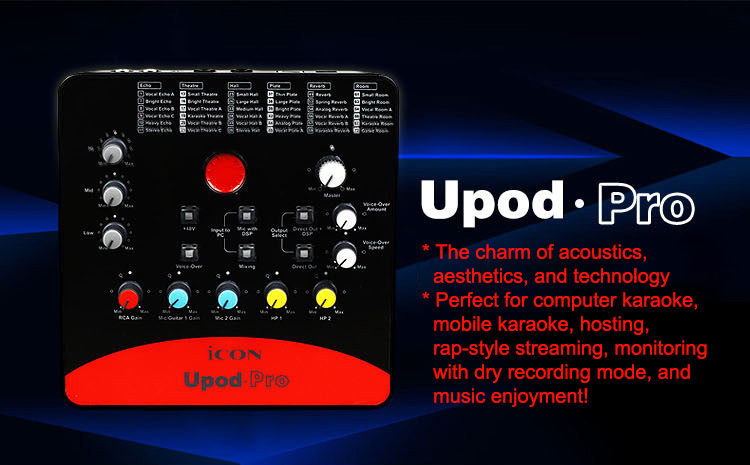

ICON UPOD PRO External Sound Card
* The charm of acoustics, aesthetics, and technology
* Perfect for computer karaoke, mobile karaoke, hosting, rap streaming, monitor wet & record dry mode, and music enjoyment!
* With a beautifully stylish mirror finish design
* It features an ergonomic and thoughtful layout that captures musicians' emotional expression!
* The computer-independent USB sound card is perfect for mobile karaoke, Changba app, and recording.
* Driver-free installation. Plug and play

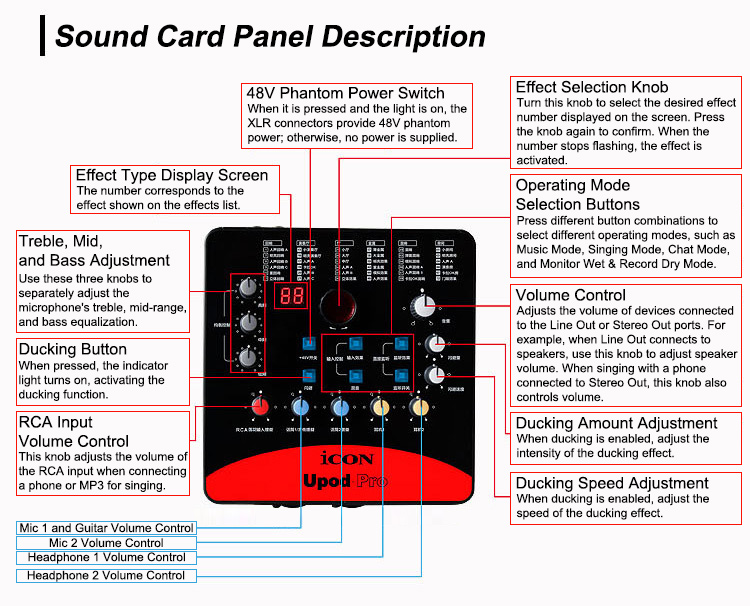

* Equipped with DSP parameter adjustment knobs for setting multiple effects

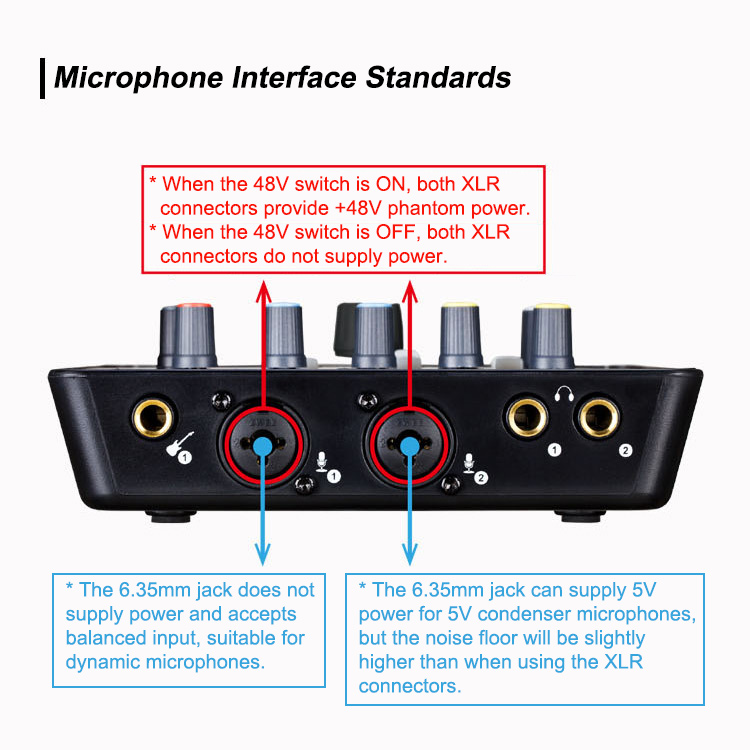

* 48V phantom power supports use with condenser microphones
* Simply connect the power and speakers — you can sing without a computer

Supported Effects
* Reverb, ducking, telephone voice, explosion sound, echo, and monitor wet & record dry mode

Unsupported Effects
* Voice changing, surround sound and electronic voice effects

USB Interface
* Supports USB 2.0 high-speed connection

Built-in Bass, Mid, and Treble Equalizer

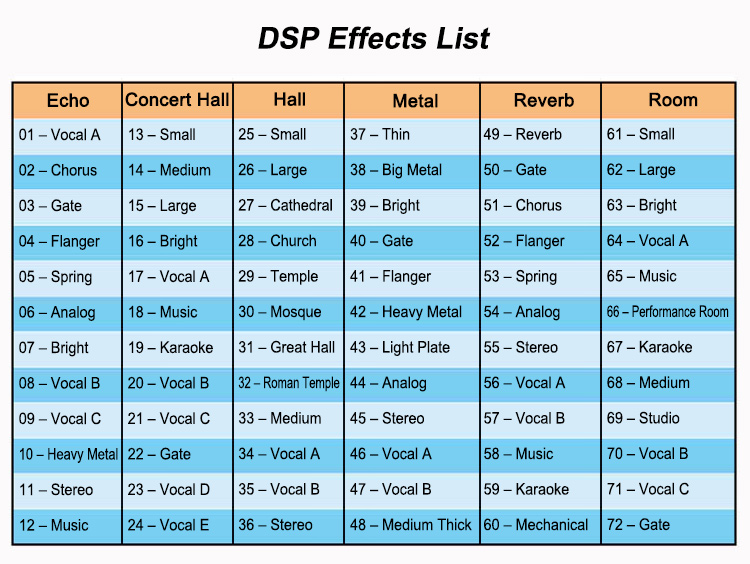

* Equipped with 72 hardware effects, it is a must-have tool for karaoke singing, recording, rap streaming, and hosting.

6 Working Modes
1. Music Mode: Used for listening to music and watching movies. In this mode, voice karaoke is not available. Please note that the microphone sound is not audible in your headphones, but the signal is still sent to the computer. So don't worry—this is not a problem with the sound card or microphone.
2. Chat Mode: For voice calls and communication. The sound is presented without any added effects, so the other party hears your clean and clear original voice.
3. Monitor Wet & Record Dry Mode: In this mode, you hear the mixed (effected) sound yourself, while the person on the other end of the network (or local recording) hears the unprocessed dry voice.
4. Singing Mode: In singing mode, both your monitoring sound and the sound heard by online listeners or local recordings have strong reverb effects. Vocal effects are finely processed and perfectly blend with the accompaniment.
5. Rap Streaming Mode: This mode is for energetic rap streaming. It features vocal mixing and detailed bass, mid, and treble adjustments, along with a unique and refined ducking function, making it easy for you to act as a DJ.
6. Hosting Mode: Compared to rap streaming mode, hosting mode delivers unprocessed, magnetic original vocals without any added effects. It is suitable for radio hosts, YY channel hosts, and similar roles.

Application Scenarios
* Professional recording studios, music appreciation, mobile karaoke, hosting and rap streaming, parties, banquets, and online karaoke.

2. Specifications:
Mic Input:
* Frequency Response: 22Hz–20kHz (±0.2dB)
* Dynamic Range: 90dB, A-weighted
* SNR: -90dB, A-weighted
* THD+N: < 0.0061% (−86dB)
* Crosstalk: −85dB at 1kHz
* Input Impedance (Mic In): 1.8kΩ (typical)
* Adjustable Gain: +39dB

Inst (Instrument) Input:
* Frequency Response: 22Hz–20kHz (±0.2dB)
* Dynamic Range: 90dB, A-weighted
* SNR: -90dB, A-weighted
* THD+N: < 0.0061% (−86dB)
* Crosstalk: −75dB at 1kHz
* Input Impedance (Instrument In): 500kΩ (typical)
* Total Gain Range: +38dB

Line Inputs (RCA IN, Unbalanced):
* Frequency Response: 22Hz–20kHz (±0.2dB)
* Dynamic Range: 90dB, A-weighted
* SNR: -90dB, A-weighted
* THD+N: < 0.003% (−86dB)
* Crosstalk: -90dB at 1kHz
* Input Impedance: 10kΩ (typical)
* Adjustable Gain: +8dB

Line Outputs 1/2 (Stereo, Unbalanced):
* Frequency Response: 22Hz–20kHz (±0.2dB)
* Dynamic Range: 90dB, A-weighted
* SNR: -90dB, A-weighted
* THD+N: < 0.003% (−86dB)
* Crosstalk: -90dB at 1kHz
* Nominal Output Level: +2dBV (typical)

Headphone Outputs (at Maximum Volume, into 100Ω load):
* Frequency Response: 22Hz–20kHz (±0.2dB)
* Output Power: 20mW into 100Ω
* THD+N: < 0.06% (−66dB)
* SNR: -90dB, A-weighted
* Max Output Level (into 100Ω): +2.0dBV (typical)
* Load Impedance: 32Ω–600Ω

Physical Specifications:
* Weight: 0.509 kg (1.12 lb)
* Dimensions: 160mm × 160mm × 50mm (6.3" L × 6.3" W × 1.97" H)

3. Kind Reminder:
* To protect the sound card from wear and tear, we have applied a protective film to the front panel. As a result, the panel may appear to have wrinkles or scratch-like marks — this is normal and nothing to worry about.
* It is recommended not to remove the protective film.

PC-K320 Condenser Microphone:
1. Features:
PC-K320 Condenser Microphone
* Ideal for vocal recording, musical instruments, podcasting, and online karaoke

High-Performance Condenser Capsule for Superior Sound Quality
* Equipped with a high-performance condenser capsule, the PC-K320 delivers greater sensitivity and a wider frequency response compared to standard condenser mics. It produces clear, natural audio with excellent detail and clarity.
* The microphone features a side-address cardioid pickup pattern. For optimal results, aim the rear side of the mic toward the sound source. Recommended recording distance: 30–50cm.

Ultra-Low Noise & Stable Performance
* Built with optimized circuitry and an internal transistor circuit, the PC-K320 effectively suppresses unwanted noise from computers and other electronic sources. Enjoy ultra-low self-noise and stable performance, perfect for clean and effortless vocal recording.

High Sensitivity Captures Rich Audio Detail
* With a sensitivity of -32dB ±3dB, the mic easily picks up subtle and detailed sounds, making it ideal for high-quality online karaoke and professional vocal work.

Stylish and Durable Design
* Featuring a sleek alloy body, the PC-K320 combines durability with modern aesthetics. The polished finish is both elegant and resistant to fading, adding a touch of style to your setup.

Powered by Phantom Power
* The PC-K320 operates via phantom power, offering exceptional advantages such as wide frequency response, flat response curves, stable output, and excellent transient response.

Wide Range of Applications
* Suitable for use in broadcasting stations, personal vocal recording, and musical instrument recording. Whether you're a home studio artist or a professional broadcaster, the PC-K320 delivers reliable, high-quality results.

High Value with Complete Accessories
* This microphone comes with a full set of essential accessories, offering great value, ease of use, and dependable performance out of the box.

SH-600 Shock Mount
* The SH-600 shock mount features a foldable and rotatable design, built with an all-metal structure and anti-slip stand feet. Included with a mounting nut, it's ideal for desktop setups requiring stable microphone support and vibration isolation.

ST-105 Tripod Stand
* The ST-105 tripod is a dedicated shock-resistant stand for microphones. Its high-tension elastic suspension and aluminum alloy frame effectively reduce vibrations and unwanted noise, resulting in cleaner, more realistic recordings. The tripod is sturdy, durable, and easy to set up.

2. Specifications:
* Transducer Type: Back Electret Condenser
* Polar Pattern: Cardioid
* Frequency Response: 20Hz–20kHz
* Sensitivity: -32dB ±3dB (0dB = 1V/Pa at 1kHz)
* Equivalent Noise Level: ≤13dB A
* Maximum SPL: 145dB (THD ≤1.0% at 1kHz)
* Output Impedance: ≤200Ω
* Power Requirement: 12V–52V Phantom Power

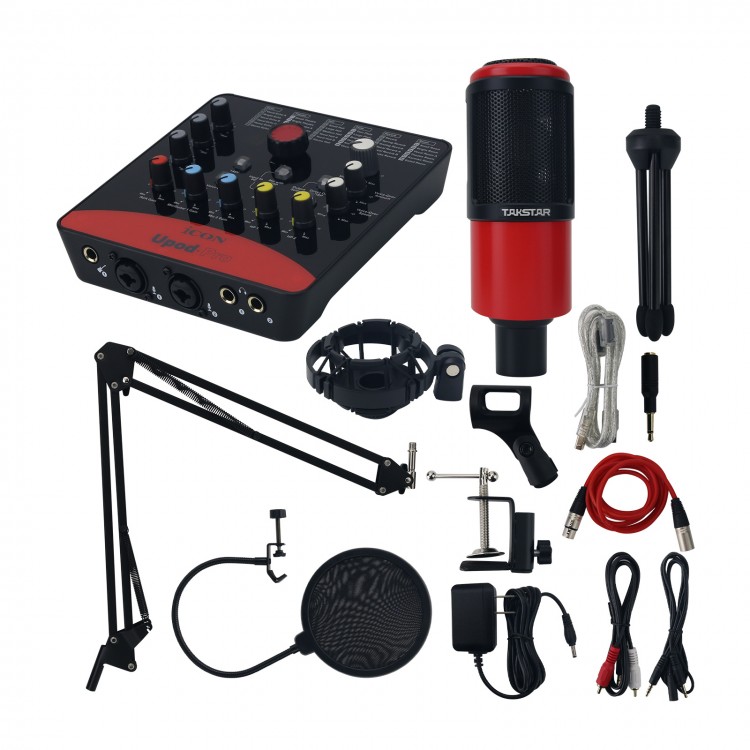

Packing List:
ICON UPOD PRO Sound Card:
* 1 × ICON UPOD PRO Sound Card
* 1 × User Manual
* 1 × Warranty Certificate
* 1 × Quick Start Guide
* 1 × Chinese Panel Label
* 1 × USB Data Cable
* 1 × Power Adapter

PC-K320 Microphone:
* 1 × PC-K320 Microphone
* 1 × SH-600 Shock Mount
* 1 × ST-105 Tripod
* 1 × User Manual
* 1 × Warranty Card
* 1 × Certificate of Quality

Other Accessories:
* 1 × KGperson NB-35 Microphone Boom Arm
* 1 × Clamp for NB-35 Boom Arm
* 1 × KGperson S1 Audio Cable with Dual XLR Connectors
* 1 × KGperson P1 Pop Filter

Packaging Details:
* Weight: 5.5kg
