ICON UPOD PRO USB Sound Card Audio Interface with 72 DSP Effects for Computers and Cellphones

ICON UPOD PRO USB Sound Card Audio Interface with 72 DSP Effects for Computers and Cellphones

Features:

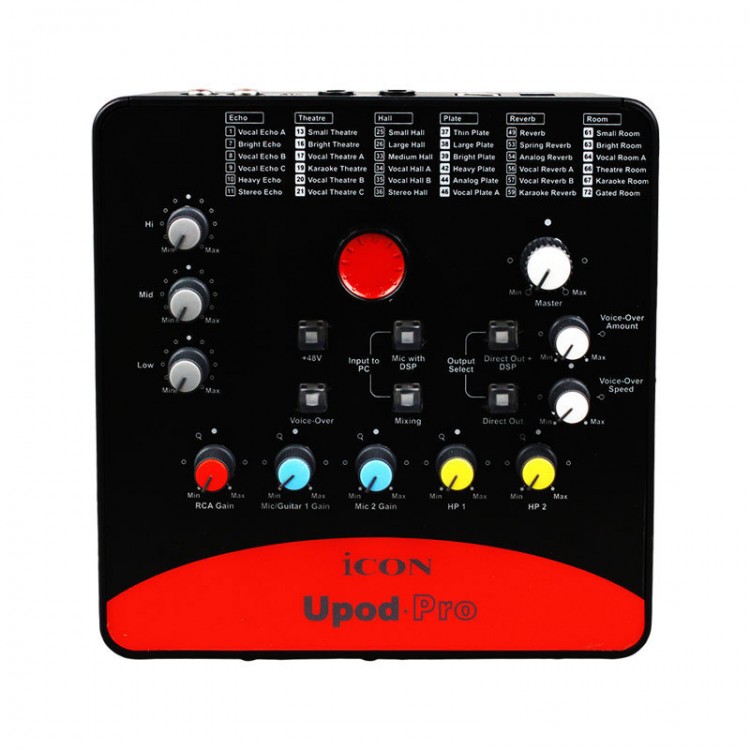

ICON UPOD PRO External Sound Card
* The charm of acoustics, aesthetics, and technology
* Perfect for computer karaoke, mobile karaoke, hosting, rap streaming, monitor wet & record dry mode, and music enjoyment!
* With a beautifully stylish mirror finish design
* It features an ergonomic and thoughtful layout that captures musicians' emotional expression!
* The computer-independent USB sound card is perfect for mobile karaoke, Changba app, and recording.
* Driver-free installation. Plug and play
* Equipped with DSP parameter adjustment knobs for setting multiple effects
* 48V phantom power supports use with condenser microphones
* Simply connect the power and speakers — you can sing without a computer

Supported Effects
* Reverb, ducking, telephone voice, explosion sound, echo, and monitor wet & record dry mode

Unsupported Effects
* Voice changing, surround sound and electronic voice effects

USB Interface
* Supports USB 2.0 high-speed connection

Built-in Bass, Mid, and Treble Equalizer

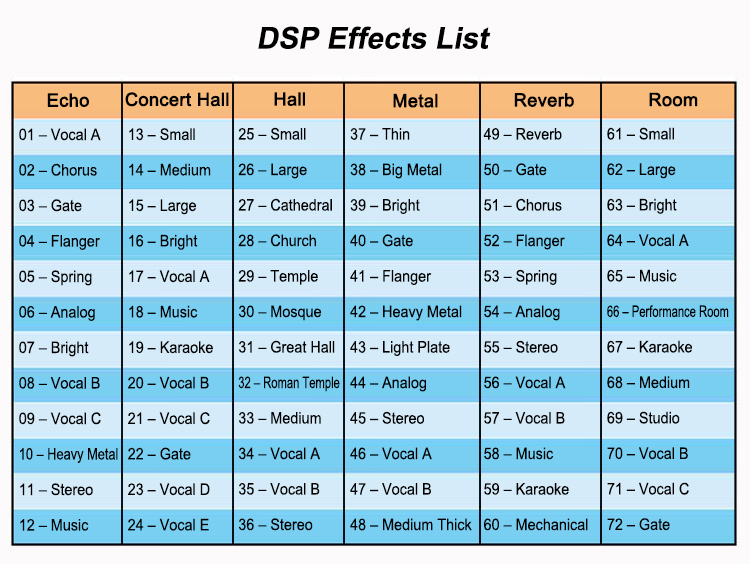

* Equipped with 72 hardware effects, it is a must-have tool for karaoke singing, recording, rap streaming, and hosting.

6 Working Modes
1. Music Mode: Used for listening to music and watching movies. In this mode, voice karaoke is not available. Please note that the microphone sound is not audible in your headphones, but the signal is still sent to the computer. So don't worry—this is not a problem with the sound card or microphone.
2. Chat Mode: For voice calls and communication. The sound is presented without any added effects, so the other party hears your clean and clear original voice.
3. Monitor Wet & Record Dry Mode: In this mode, you hear the mixed (effected) sound yourself, while the person on the other end of the network (or local recording) hears the unprocessed dry voice.
4. Singing Mode: In singing mode, both your monitoring sound and the sound heard by online listeners or local recordings have strong reverb effects. Vocal effects are finely processed and perfectly blend with the accompaniment.
5. Rap Streaming Mode: This mode is for energetic rap streaming. It features vocal mixing and detailed bass, mid, and treble adjustments, along with a unique and refined ducking function, making it easy for you to act as a DJ.
6. Hosting Mode: Compared to rap streaming mode, hosting mode delivers unprocessed, magnetic original vocals without any added effects. It is suitable for radio hosts, YY channel hosts, and similar roles.

Application Scenarios
* Professional recording studios, music appreciation, mobile karaoke, hosting and rap streaming, parties, banquets, and online karaoke.

Specifications:
Mic Input:
* Frequency Response: 22Hz–20kHz (±0.2dB)
* Dynamic Range: 90dB, A-weighted
* SNR: -90dB, A-weighted
* THD+N: < 0.0061% (−86dB)
* Crosstalk: −85dB at 1kHz
* Input Impedance (Mic In): 1.8kΩ (typical)
* Adjustable Gain: +39dB

Inst (Instrument) Input:
* Frequency Response: 22Hz–20kHz (±0.2dB)
* Dynamic Range: 90dB, A-weighted
* SNR: -90dB, A-weighted
* THD+N: < 0.0061% (−86dB)
* Crosstalk: −75dB at 1kHz
* Input Impedance (Instrument In): 500kΩ (typical)
* Total Gain Range: +38dB

Line Inputs (RCA IN, Unbalanced):
* Frequency Response: 22Hz–20kHz (±0.2dB)
* Dynamic Range: 90dB, A-weighted
* SNR: -90dB, A-weighted
* THD+N: < 0.003% (−86dB)
* Crosstalk: -90dB at 1kHz
* Input Impedance: 10kΩ (typical)
* Adjustable Gain: +8dB

Line Outputs 1/2 (Stereo, Unbalanced):
* Frequency Response: 22Hz–20kHz (±0.2dB)
* Dynamic Range: 90dB, A-weighted
* SNR: -90dB, A-weighted
* THD+N: < 0.003% (−86dB)
* Crosstalk: -90dB at 1kHz
* Nominal Output Level: +2dBV (typical)

Headphone Outputs (at Maximum Volume, into 100Ω load):
* Frequency Response: 22Hz–20kHz (±0.2dB)
* Output Power: 20mW into 100Ω
* THD+N: < 0.06% (−66dB)
* SNR: -90dB, A-weighted
* Max Output Level (into 100Ω): +2.0dBV (typical)
* Load Impedance: 32Ω–600Ω

Physical Specifications:
* Weight: 0.509 kg (1.12 lb)
* Dimensions: 160mm × 160mm × 50mm (6.3" L × 6.3" W × 1.97" H)

Kind Reminder:
* To protect the sound card from wear and tear, we have applied a protective film to the front panel. As a result, the panel may appear to have wrinkles or scratch-like marks — this is normal and nothing to worry about.
* It is recommended not to remove the protective film.

Packing List:
* 1 × ICON UPOD PRO Sound Card
* 1 × User Manual
* 1 × Warranty Certificate
* 1 × Quick Start Guide
* 1 × Chinese Panel Label
* 1 × USB Data Cable
* 1 × Power Adapter

Packaging Details:
* Weight: 1.1kg
