Por Thanksbuyer
TZT 256X192 6.8MM Lens Thermal Imaging Camera Module for FPV Drones Thermal Imager with CVBS Interface
Precio habitual
$187.77
Precio habitual
Precio de oferta
$187.77
Precio unitario
por
Impuesto incluido.
Los gastos de envío se calculan en la pantalla de pago.
No se pudo cargar la disponibilidad de retiro
Precio habitual
$187.77
Precio habitual
Precio de oferta
$187.77
TZT 256X192 6.8MM Lens Thermal Imaging Camera Module for FPV Drones Thermal Imager with CVBS Interface

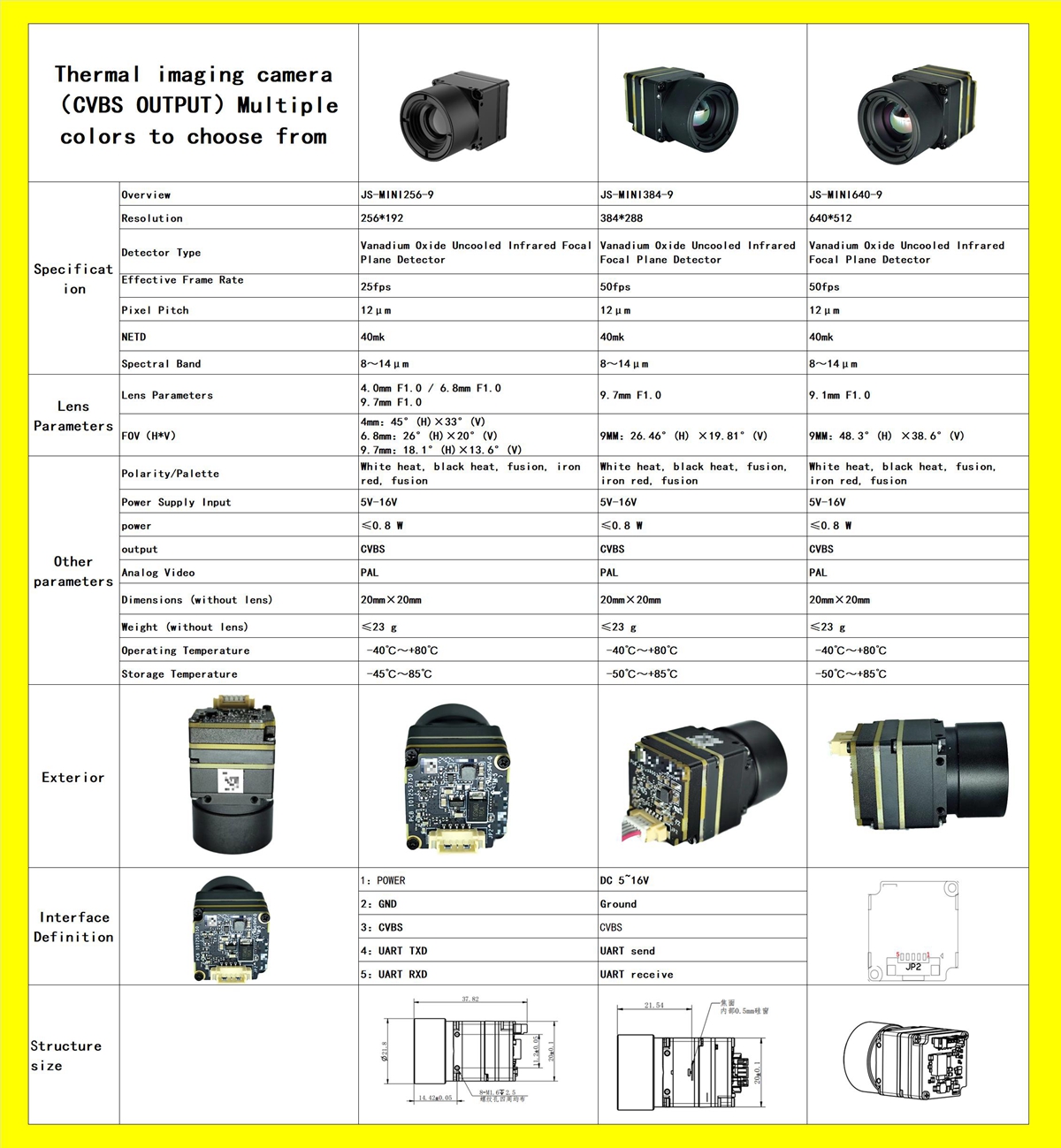

Specification:
- Resolution: 256 x 192
- Detector type: vanadium oxide uncooled infrared focal plane detector
- Effective frame rate: 25fps
- Pixel pitch: 12um
- NETD: 40mk
- Spectral band: 8 - 14um
- Lens parameters: 6.8mm F1.0
- FOV (HxV):
6.8mm lens: 26°(H) x 20°(V)
- Polarity/palette: white heat, black heat, fusion, iron red, fusion
- Power supply input: 5V - 16V
- Power: ≤0.8W
- Output: CVBS
- Analog video: PAL
- Product size (without lens): 20mm x 20m
- Weight (without lens): ≤23g
- Operating temperature: -40℃ ~ 80℃
- Storage temperature: -45℃ ~ 85℃
Package Included:
- 1 x Thermal Imager
