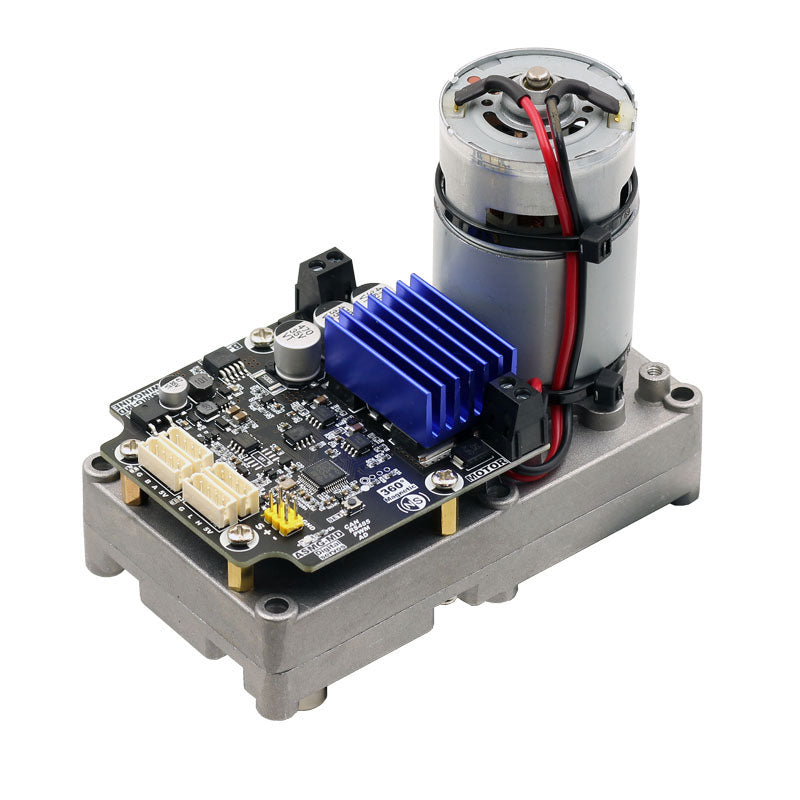

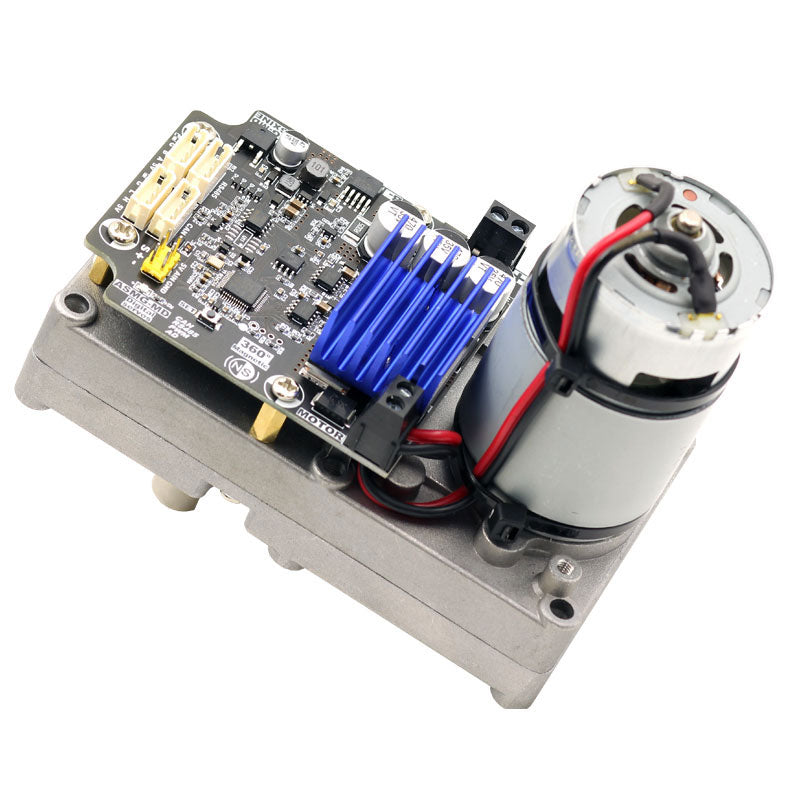

WINGXINE 350Kg.cm 0.12s/60° Bus Servo High Torque Servo ASMG-MDA with Modbus Communication Control Ports

WINGXINE 350Kg.cm 0.12s/60° Bus Servo High Torque Servo ASMG-MDA with Modbus Communication Control Ports

Features:
- Suitable for servo controller, model aircraft wireless remote control and analog voltage control.
- Alloy gear high-power motor with high-torque output.
- Super light weight reduction box body made of aluminum alloy.
- Easy to install and durable to use.

Applications:
- Robot, robotic arm, manipulator, PTZ control, valve control, production line robot, camera PTZ control, etc.
- Heavy-duty motion control of arm joints and leg joints of large robots.
- Industrial automation production line robot control.
- Precise control of valve angle.
- Large camera PTZ remote control.
- Various occasions requiring large torque angle control.

Rated Parameters:
- Rated speed (24V power supply): 0.12s/60°
- Rated voltage: 8V~24V/DC (8V/MIN~30V/MAX, limit voltage)
- No-load current: <500mA (current limit value: 10A; it is recommended to use a switching power supply greater than 20A or battery)
- Limit angle: ±180° or 0°~360° (MAX); the servo has electronic limit adjustment
- Control mode: RS485 communication (level voltage 5V), CAN, pulse or analog voltage (communication mode can be customized)
- Control resolution: 360° corresponds to 15Bit resolution (32768), 32-bit MCU for ARM, real digital port to read magnetic encoded data
- Material: Gear and Shaft: Alloy Steel; Gear Box: Cast Aluminum
- Weight: 900g
- Mechanical life: >1,000,000 times/full load (conservative value)

Limit Parameters:
- Limit voltage: 7V~30V/DC (MAX)
- Current limit: 10A±0.2A (MAX)
- Working angle: ±180° or 0°~360° (MAX)
- Weight: 900g~1000g

Package Included:
- 1 x Servo
- 2 x 4Pin Bus Cable

Note:
- Servo horn and battery are not included.
- Protocols and functions can be customized.
