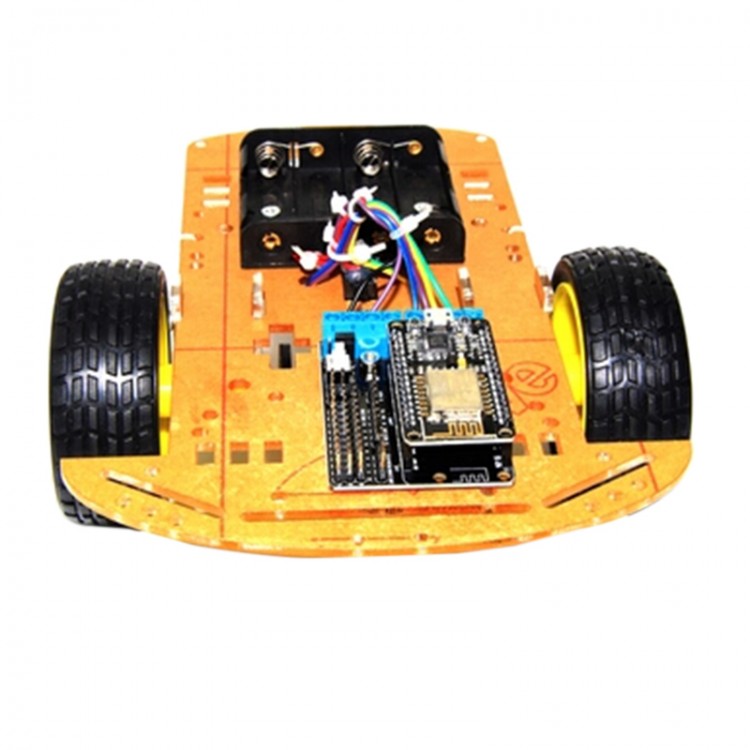

ESP8266 WiFi Smart Car Wireless Remote Control NodeMCU Lua 2WD ESP Car Kits Not Assembled

ESP8266 WiFi Smart Car Wireless Remote Control NodeMCU Lua 2WD ESP Car Kits Not Assembled

Description:
- Power input:
1, motor power supply (VM): 4.5V ~ 36V, can be a separate power supply;
2, control power supply (VIN): 4.5V ~ 9V (10VMAX), can be a separate power supply;
3, the module provides a short road (short circuit VIN and VM), can be easily used in a power supply (must be 4.5V ~ 9V) at the same time to complete the motor drive and control;
- Logic working current: ≤60mA（Vi=L), ≤22mA（Vi=H）
- Driving part working current: ≤1.2A
- Maximum consumption power: 4W（T=90℃）
- Control signal input level: high level: 2.3V = VIH = VIN; low level: -0.3V≤VIL≤1.5V
- Working temperature: -25 degrees C ~ 125
- Drive type: dual power H bridge driver
- Supports wireless 802.11 b/g/n standard;
- Support STA/AP/STA+AP three kinds of work mode;
- Built in TCP/IP protocol stack, supports multiple Client TCP connection (5 MAX)
- D0 ~ SD1, D8 ~ SD3: used as GPIO, PWM, IIC, etc., port driver 15mA;
- AD0:1 ADC;
- Power input: 4.5V ~ 9V (10VMAX), support USB power supply, provide USB debug interface;
- Working current:: = 70mA (200mA continued to send MAX, standby: < 200uA);
- Transmission rate: 110-460800bps;
- UART/GPIO data communication interface;
- Support for remote firmware upgrade (OTA);
- Support Link Smart smart networking capabilities;
- Working temperature: -40 degrees C ~ 125;
- Drive type: dual power H bridge driver
- Product weight: about 310G (excluding battery)

Package includes:
- Mini car chassis x 1
- NodeMCU x 1
- NodeMCU motor driving board x 1
- Conencting cable x 1 set
