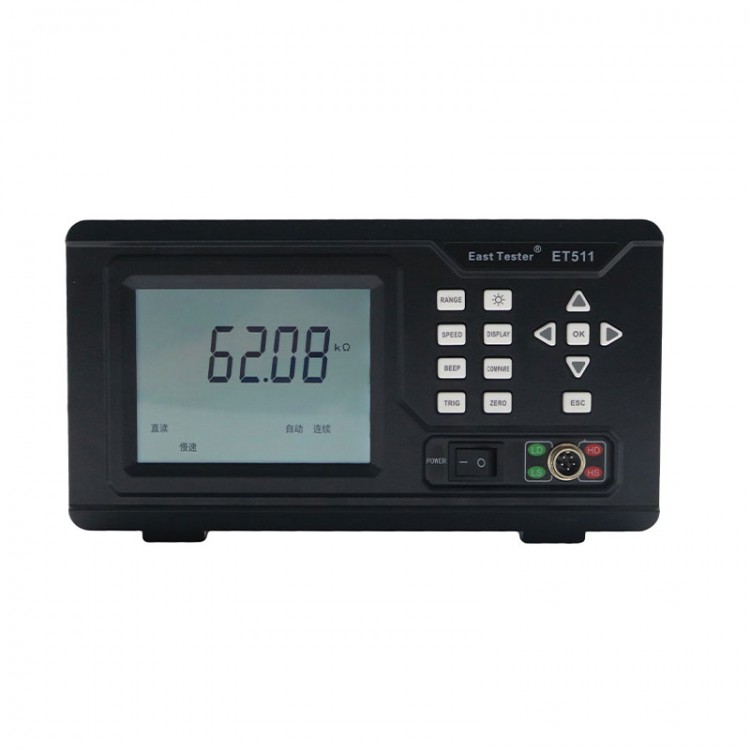

ET511 10uohm-20kohm Portable DC Low Resistance Tester with 5-inch LCD Screen for Automated Testing
Description:
- ET51X series DC low resistance tester is suitable for measuring all kinds of DC medium and low value resistance, including transformer and other wound resistance, relay and other contact resistance, cable and other conductor resistance, connection resistance between metal components, fuse, conductive rubber and other types of DC resistance. Large-screen LCD display, clear display, measuring range of 20mΩ ~ 20kΩ (2MΩ optional), seven (nine optional) range can be adjusted, this product also comes with sorting function and sorting result output function, can be used for pipeline testing. At the same time, it also supports interface communication and control, and standard HANDLER and RS232 interface can be used for PC, PLC and other upper computer communication.
Characteristics:
- LCD screen with backlight display
- The maximum test resistance range of ET51X is up to 2MΩ
- Has the function of sorting and comparison
- Has two display modes: direct reading and percentage
- With internal trigger, manual trigger and external trigger function
- Standard RS232, Handler rich communication interface
Package Included:
- 1 x Tester
- 1 x 5A Output Line
- 1 x Power Cord
- 1 x User Manual
