ETH-NAT Network Coupler Ethernet Module for PLC and CNC Ethernet Communication and Data Acquisition

ETH-NAT Network Coupler Ethernet Module for PLC and CNC Ethernet Communication and Data Acquisition

Description:
- ETH-NAT is suitable for Ethernet communication and data acquisition of all network interface PLCs or CNC machine tools (TCP/UDP protocol), used for IP address conversion, and has the function of cross network segment and transparent transmission.
- If the IP address of a PLC or CNC machine tool's network port cannot or is inconvenient to modify, it needs to be accessed through another network segment. ETH-NAT can solve the problem of cross network segment access.
- If multiple devices in the workshop have the same IP address, they can be unified into different IP addresses in the same network segment for data acquisition.
- If multiple devices in the workshop have different IP addresses, they can also be unified into different IP addresses in the same network segment for data acquisition.

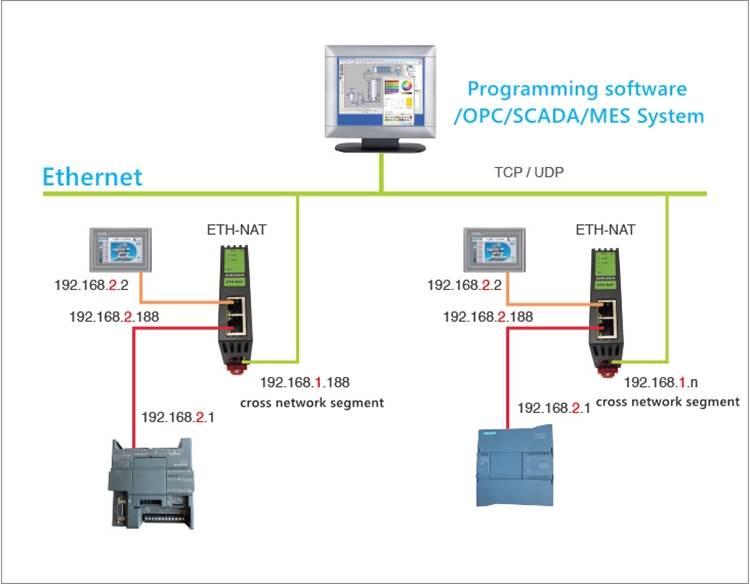

- ETH-NAT can simultaneously achieve the address translation function of NAT, which maps PLC devices connected to LAN1 to any IP address of LAN2 port, solving the problem of on-site devices being unable to modify IP addresses.

Features:

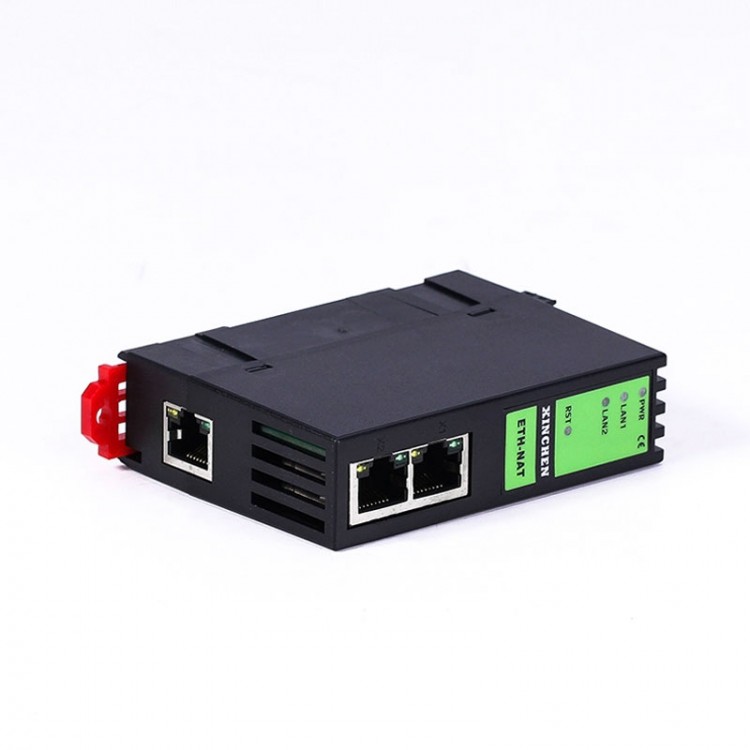

- Installed on a 35mm rail, LAN1 is a dual port RJ45 with switch function, which is connected to the PLC; LAN2 is a single port RJ45 that can be connected to the upper computer; ETH-NAT requires an external 24VDC power supply.
- Integrated WEB server can set device parameters and running diagnostics through web pages; It can also be configured through the BCDevice tool; It can be configured from LAN1 or LAN2 port.
- Implement NAT function, mapping the IP address and port number of the PLC connected to the LAN1 port to any IP and port number of the LAN2 port.
- Support a server/client concurrent model with up to 32 LAN2/LAN1 ports, and the LAN2 port can support up to 32 upper computer connections.
- Support firmware updates on the user side through Ethernet.

Specification:
- Status display: Pwr, LAN1, LAN2
- Ethernet interface: IEEE 802.3 compatibility, Link/Active indicator, line sequence adaption, support for Auto-MDIX
- Interface type: RJ45 Female socket
- Transmission speed rate: 10/100Mbps
- Supported protocol: TCP/IP
- TCP connection: 32

LAN1:
- Interface (for PLC): Ethernet
- Interface type: RJ45 x 2
- Transmission speed rate: 10/100M
- Supported protocol: TCP/IP

LAN2:
- Interface (for upper computer): Ethernet
- Interface type: RJ45 x 1
- Transmission speed rate: 10/100M
- Supported protocol: TCP/IP

General:
- Diagnostic and parameter setting: IE browser, 192.168.2.188 (LAN1) by default, 192.168.1.188 (LAN2) by default, BCDevice search configuration tool
- Power supply: 24V DC
- Voltage type: 24V DC/100mA
- Working temperature: 0 ~ 60℃
- Working humidity: 90% non-condensing
- Installation method: 35mm rail installation
- EMC: 2014/30/EU
- RoSH production: YES
- Anti-vibration: 4.5mm/30Hz/10Min
- ESD: 6KV
- Factory aging: 60 degree aging chamber operates for 168 hours, with power on and off for 500 million times
- Communication stability: Continuous communication with PLC for 30 days, 130 million times communication with 0 errors
- Size (L x W x H): 90 x 24 x 65mm
- Weight: 120g

Package Included:
- 1 x Ethernet Module
