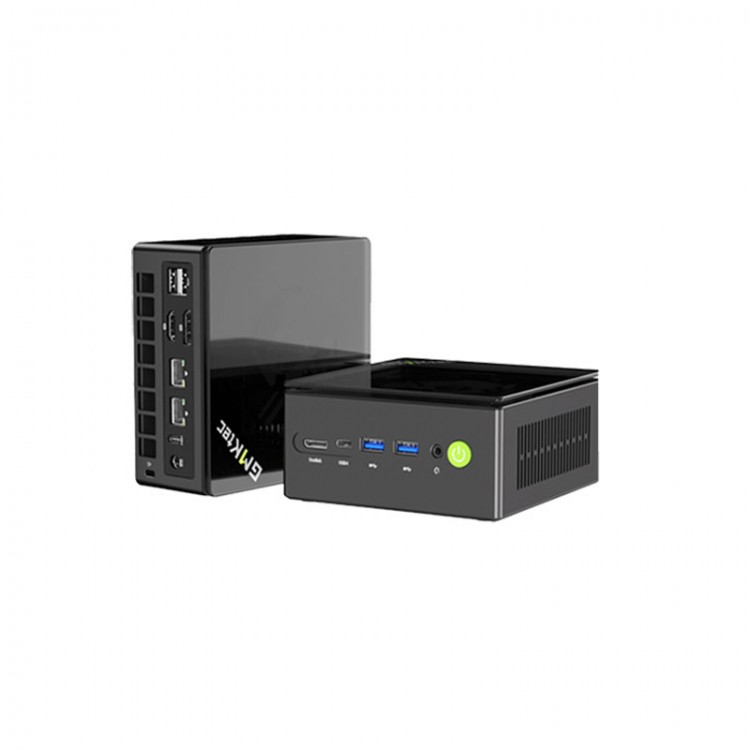

GMKtec K8 PLUS GMK-K8 Mini PC Mini Gaming Computer (32G + 1TB) with AMD Ryzen 7 8845HS Processor
Attention:
* If you choose the version without RAM or storage, the product will be shipped without a memory module or hard drive. Additionally, the barebone version does not include an activation key. You will need to supply and install your own memory and storage, as well as install the operating system manually.
* Versions that include RAM and storage come with Windows 11 Pro pre-installed and activated.
Features:
K8 Plus Ushers in a New Era of "Desktop-level Discrete Graphics"
* It supports four-screen independent display.
* AMD Ryzen™ 7 8845HS affordable alternative to discrete graphics
Processor: AMD Ryzen™ 7 8845HS
* A high-performance mobile processor based on the advanced Zen4+ architecture and manufactured with a 4nm process.
* 5.1GHz: Maximum boost clock frequency
* Peak TDP: 65W
* 8 Cores: CPU core count using Zen4+ architecture
* 16 Threads: Built with TSMC's 4nm FinFET technology and features a 16MB L3 smart cache
* Power consumption can be manually adjusted up to 65W. Please contact customer service for details.
Performance Modes: Customizable in Three Levels
* Silent Mode: 35W
* Balanced Mode: 45W
* Peak Mode: 65W
Oculink Interface Supports External GPU Dock
* The Oculink interface can connect to an external GPU dock, allowing you to smoothly play AAA games without performance loss.
* When paired with the Oculink GPU expansion dock, it enables high-performance desktop graphics card expansion, providing more powerful computing support for professional creation.
* The GPU expansion dock is sold separately.
* The Oculink port does not support hot-plugging; please connect or disconnect only when the power is off. Plugging or unplugging while powered on may damage the motherboard.
Supports Four Screens with Independent Display
* Ports: HDMI-compatible 2.1 × 1 + DP 2.0 × 1 + USB 4.0 × 2
* It delivers an impressive matrix-screen experience.
* The mini computer supports Type-C.
Dual M.2 and Dual SO-DIMM Memory Slots
* Memory supports dual-channel 96GB DDR5 5600MHz, with up to 48GB per module.
* Storage supports dual M.2 2280 PCIe 4.0 SSDs, expandable up to 4TB per slot.
Silent Turbo Fan + Cooling System Fan
* The mini PC uses a new vapor chamber (VC) heat spreader with advanced thermal conductivity design and dual stereo surround air inlets.
* It operates quieter and stays cooler.
* ICPU new thermal management system: The system cooling fan plus surround convection airflow design makes SSD/DDR run more efficiently.
* MAX 2.0 new airflow design: Dual stereo surround air intakes plus dual fan design ensure heat has nowhere to hide. Peak power release up to 70W.
* VC vapor chamber heat spreader advanced cooling design: The vapor chamber heat spreader provides all-around coverage of the CPU for heat dissipation. Quiet surround, cool-to-touch, and deep noise reduction.
* 30dB whisper-quiet operation, peaceful and serene.
Gaming Network Transmission Configuration
* WiFi 6 wireless card + Bluetooth 5.2
* WiFi 6 AX200 wireless card for Intel and I226 V*2 wired network cards for Intel
* Compared with ordinary WiFi 5, WiFi 6 performance is increased by 5.5 times. Test results are for reference only; actual performance may vary depending on environment.
* Dual 2.5G Ethernet ports and dual USB 4.0 ports
Compact Size
* Dimensions: 132mm × 125mm × 58mm
* Its volume is 1/20th that of a standard desktop PC.
Applications
* Suitable for video editing, 3D modeling and rendering, graphic design, and gaming.
* Easily handles over 80 design software programs.
Specifications:
Main Unit:
* Dimensions: 132mm × 125mm × 58mm
CPU:
* Processor: AMD Ryzen™ 7 8845HS
* Boost Clock: Up to 5.1GHz (8 cores and 16 threads), with 16MB L3 Smart Cache
Graphics:
* AMD Radeon™ 780M, 12-core GPU, 2700MHz
Optional Storage:
* Supports PCIe 4.0 M.2 2280
* Dual M.2 2280 SSD slots
* Options: 512G and 1TB
Optional Memory:
* SO-DIMM ×2, DDR5 5600MHz
* Options: 16G, 32G and 64G
Ports:
* Type-C (USB 4.0) ×2
* DisplayPort 2.1 (8K at 60Hz) ×1
* HDMI-compatible 2.1 (8K at 60Hz) ×1
* Onboard DMIC Digital Microphone Chip
* USB 2.0 ×2
* Oculink (PCIe Gen4 ×4) *Hot-swapping not supported
* 3.5mm Headphone Jack (CTIA Standard)
* 2.5G Gigabit LAN Ports (RJ45) ×2
Network:
* AX200 Module For Intel
* Supports WiFi 6
* Supports Bluetooth 5.2
Power Supplies:
* Built-in Button Battery
* Charger: DC IN 19V 6.32A, 120W
Operating Environment:
* Temperature: -10°C to 45°C
* Humidity: 30% to 90%
Storage Environment:
* Temperature: -20°C to 60°C
* Humidity: 10% to 90%
Packing List:
* 1 x Mini computer
* 1 x Screw kit
* 1 x Power adapter
* 1 x VESA bracket
* 1 x HDMI-compatible cable
* 1 x User manual
Packaging Details:
* Weight: 2.5kg
