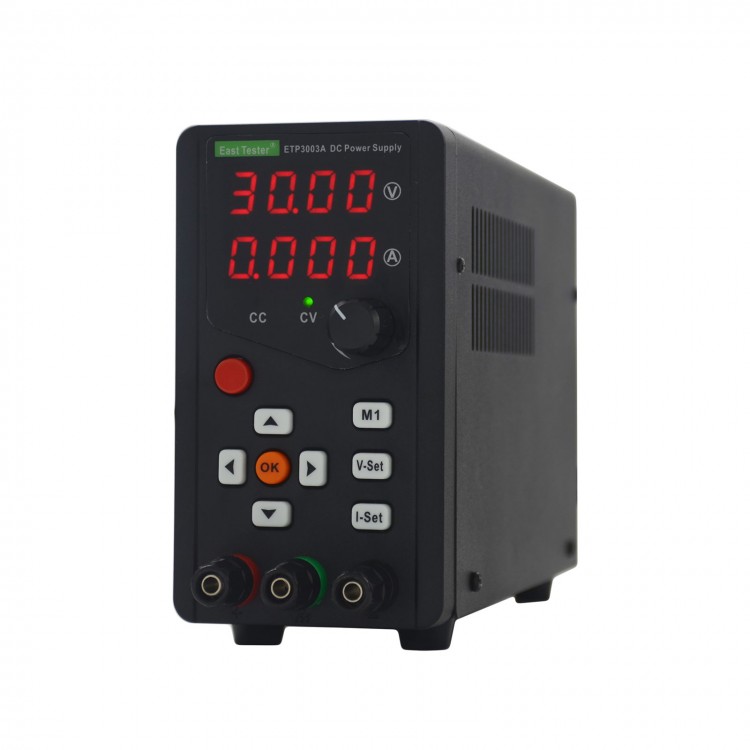

ETP3005A 0-30V 150W Single Channel Adjustable DC Regulated Power Supply LED Digital Display for CC/CV Automatic Test

Availability: In stock, usually dispatched in 1 business day

  • Price:$62.35
  • Price in reward points: 624 Reward Points: 6
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $61.10 $59.86 $57.99 $55.49 Contact US
Quantity:

ETP3005A 0-30V 150W Single Channel Adjustable DC Regulated Power Supply LED Digital Display for CC/CV Automatic Test

Description:

- This series of adjustable DC regulated power supply is a single output DC regulated power supply, four LED digital display, can display voltage and current at the same time; Voltage (CV) and current (CC) modes are automatically switched, and voltage and current are continuously adjustable. Using advanced switching power control technology and components, high efficiency, light weight, energy saving and environmental protection.

Characteristics:
- The maximum power of this series is 300W, the voltage is 60V, the current is 10A
- The highest resolution is 10mV, 1mA
- LED digital display, 4-digit digital voltage, current display
- CV and CC modes switch automatically, and the status indicator prompts
- Over voltage, over current, over power, over temperature protection
- Quick parameter storage and call function
- Communication interface: RS232 communication, remote control
- Intelligent temperature control fan, energy saving
- Encoder adjustment, the specified number of accurate adjustable

Specification:
- Model: ETP3005A
- Output voltage: 0 ~ 30V
- Output current: 0 ~ 5A
- Output power: 150W
- Stabilized state:
  Voltage stability: <= 0.1% +/-3mV
  Load stability: <= 0.1% +/-3mA
- Steady state:
  Current stability: <= 0.1% +/-3mV
  Load stability: <= 0.1% +/-3mA
- Display accuracy:
  Voltage: 0.5% +/- 3 words
  Current: 0.5% +/- 3 words
- Ripple noise: Vpp <= 1%
- Display resolution:
  Voltage: up to 10mV
  Current: up to 1mA
  Power: up to 10mW
- Display mode: 4 digital LED digital tube display
- Power input: AC220V +/- 10%/50Hz or AC110V +/- 10%/60Hz (please specify when purchasing)
- Product size: 220 x 70 x 135mm (L x W x H)
- Product weight: 1.1kg

Package Included:
- 1 x Host
- 1 x Power Cord
- 1 x 5A Output Line
- 1 x User Manual
