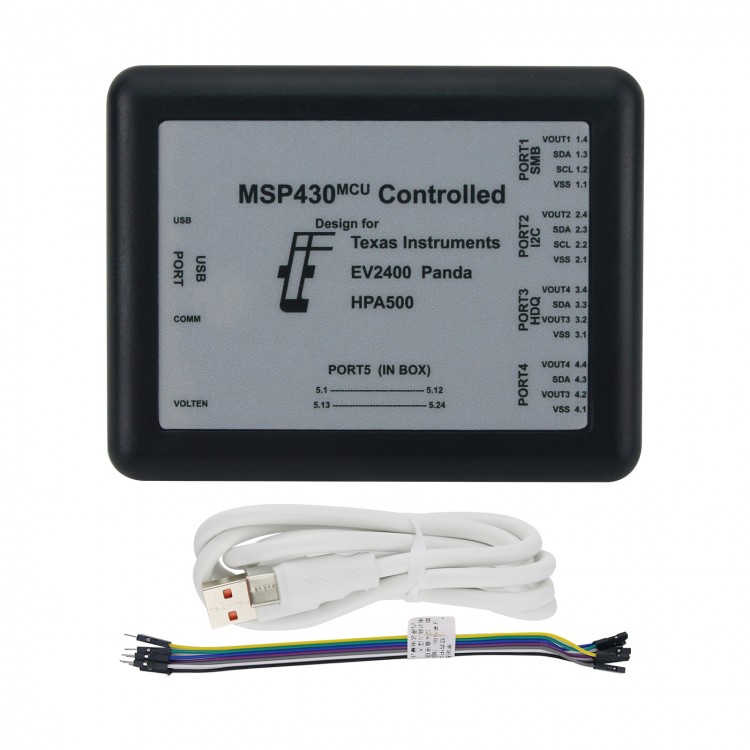

EV2400 Panda HPA500 China-Made EVM Interface Board Bqstudio Debugger for Drone Battery Maintenance

EV2400 Panda HPA500 China-Made EVM Interface Board Bqstudio Debugger for Drone Battery Maintenance

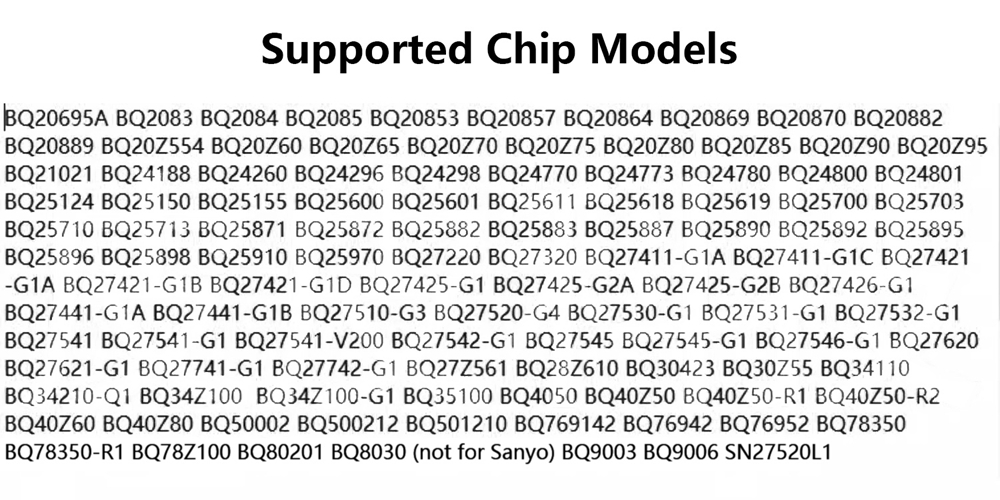

Version Introduction:
The EV2400 Panda version allows fixed voltage output. It retains a single communication capability of 4 protocols and can be used to manually read and write battery parameters.

Features:
- Dual over-current protection
- Double over-temperature protection
- 6-way isolation
- 11-way anti-static
- 4 types of communication
- Power supply anti-backfilling
- USB powered
- Built-in pull-up resistor
- IO withstand voltage 100V
- It has 4 ports and supports 4 protocols

Functions:
- Input interface: USB B
- Output interface: KF2510*4
- PORT1 (SMB): Supported
- PORT2 (I2C): Supported
- PORT3 (HDQ): Yes
- PORT4 (SW): Supported
- Tri-status LED: Yes
- CPU independent power supply: Yes
- Output independent power supply: 1-way
- IO port isolation: multi-chip
- CPU power supply capacity: 150mA
- Maximum source current: 200uA
- Isolation bandwidth: 1Mhz
- IO port over-voltage strategy: 100V withstand voltage

Protection:
- Output anti-backfilling: Yes
- Over-current protection: chip
- IO port anti-negative voltage: support
- IO port current limiting: Yes
- VOUT current limit: Yes
- VOUT over-temperature protection: 1-way
- Power supply over-temperature protection: Yes
- USB anti-backfilling: Yes
- Number of ESD protection: 11 ways

Note:
- Output independent power supply: It allows different ports to connect different system chips, so that there is no series connection.
- Maximum source current: It allows more devices to be hung on the communication bus.
- Isolated bandwidth: It improves communication accuracy, which is conducive to reducing communication interference and bit errors.
- IO port over-voltage strategy: burn your devices or other devices if wrong wire is connected.

Package Included:
- 1 x EV2400 Panda
- 1 x USB data cable with shielding
- 1 x KF2510 connection cable

Attention:
- Battery is not included in the package.
- It can solve most battery software problems, but it cannot solve battery hardware failures.
- During normal debugging, only VSS, SDA and SCL cables need to be connected, and Vout is disconnected. Vout is a function pin, not a power pin. Please not connect Vout when connecting the battery. When debugging the battery, do not turn on the battery to prevent short circuits.
- Connected to a computer for the first time, the EV2400 Panda will automatically detect and activate for about 1 second, without user operation. After activation, install and open the bqstudio software to recognize the device and firmware version.
