EV2400 Mini HPA500 Bqstudio Debugger For 2300 DJI UAV Battery Repair SMB Communication Box T16 T20
Attention:
When debugging batteries normally, only VSS, SDA and SCL need to be connected, and Vout is disconnected. Vout is used when there is no battery. Do not connect VOUT when connecting a battery. Do not turn on the battery when debugging the battery to prevent accidental short circuit.
Features:
1.Support IIC, SMBUS, and HDQ communication. PORT1, PORT2, PORT3, PORT4, and PORT5 can be used
2. Three-color status lights indicate three states (power supply, communication, USB data)
3. Support for subsequent firmware upgrades, and support for unreleased chips
4. Directly use an USB data cable to complete the communication with a computer
5. Small size, easy to carry
6. 3.3v reference power supply can be provided externally
7. The output pin is pulled up, no external pull-up resistor is needed
8. Electrostatic protection
9. USB port prevents backflow
10. 128Flash + 8RAM + 2USB memory, will not overflow
Summary:
Both EV2400 Mini and EV2400 Pro can be used to debug batteries, and the supported battery models are the same. EV2400 Mini provides basic functions and basic protection, but EV2400 Pro is the original imported solution version that provides a complete protection system. Soft combination of EV2400 Pro and battery chip (EV2400 Mini does not have level conversion. When communicating with a battery chip, the voltage of the communication port of EV2400 is fixed, and the voltage of the communication port of the battery motherboard is not fixed. There is a voltage difference between the two, which will cause small leakage current. No problem generated in a short time, but it will reduce the accuracy of the battery chip and even burn the battery for a long time. EV2400 Pro has a 6ch independent adjustable power supply and a level conversion chip. It will automatically adjust the output and communication port voltage to match a battery chip voltage. No leakage current is generated). EV2400 Pro can protect battery boards and battery to the greatest extent.

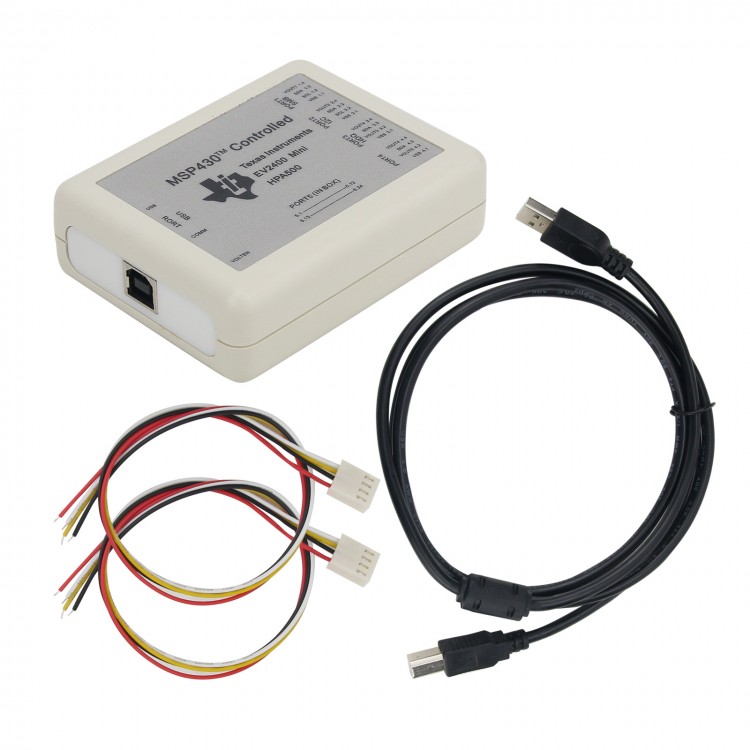

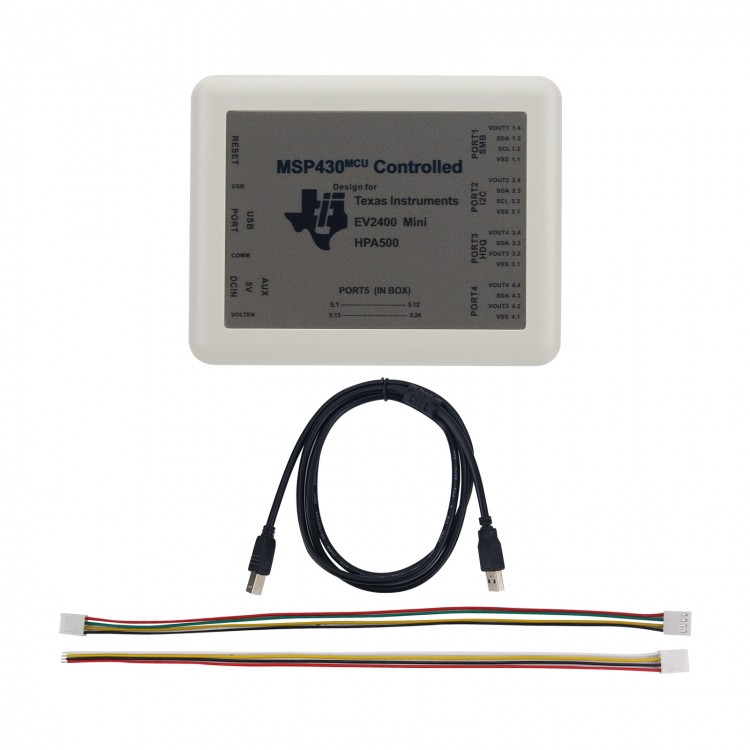

Package Included:
- 1 x EV2400 Mini
- 1 x USB Data Cable
- 2 x KF2510 Connection Cables
Note:
- Batteries are not included.
- It can solve most battery software problems, but it is not for battery hardware failures. Some models, such as battery motherboard for DJI t16, have an MSP430 microprocessor attached to it. After an unreasonable power failure, this processor is very easy to burn and damage the battery. This damage is irreversible and the processor cannot be replaced.
