EV2400 Pro HPA500 Bqstudio Debugger For 2300 DJI UAV Battery Repair SMB Communication Box T16 T20

EV2400 Pro HPA500 Bqstudio Debugger For 2300 DJI UAV Battery Repair SMB Communication Box T16 T20

Attention:
When debugging batteries normally, only VSS, SDA and SCL need to be connected, and Vout is disconnected. Vout is used when there is no battery. Do not connect VOUT when connecting a battery. Do not turn on the battery when debugging the battery to prevent accidental short circuit.

Features:
1. Support IIC, SMBUS, and HDQ communication. PORT1, PORT2, PORT3, PORT4, and PORT5 can be used
2. Three-color status lights indicate three states (power supply, communication, USB data)
3. Support for subsequent firmware upgrades, and support for unreleased chips
4. Directly use an USB data cable to complete the communication with a computer
5. Small size, easy to carry
6. Any reference power can be provided externally
7. The output pin is pulled up, no external pull-up resistor is needed
8. Output port level conversion protection
9. Enhance electrostatic protection
10. Support dual power supply, support large current output
11. VOUT port arbitrary voltage output
12. Adjustable output port pull-up voltage
13. Additional 6ch independent power supplies
14. Surge protection
15. Overcurrent protection and transient overcurrent protection
16. Overheat protection
17.128Flash + 8RAM + 2USB memory, will not overflow

More Details:
- Up to 2 microseconds transient overcurrent protection and USB power regulator
- Power supply gating and surge protection
- Battery matching controller
- Main controller independent power supply with overcurrent and overheat protection
- Internal port level controller
- Static Protection
- 6ch independent power supply
- MSP430 MCU
- Output isolation protection
- External power supply circuit with overcurrent and overheat protection
- All 5 ports lead out
- Support USB and external 5V dual power supply

Summary:
Both EV2400 Mini and EV2400 Pro can be used to debug batteries, and the supported battery models are the same. EV2400 Mini provides basic functions and basic protection, but EV2400 Pro is the original imported solution version that provides a complete protection system. Soft combination of EV2400 Pro and battery chip (EV2400 Mini does not have level conversion. When communicating with a battery chip, the voltage of the communication port of EV2400 is fixed, and the voltage of the communication port of the battery motherboard is not fixed. There is a voltage difference between the two, which will cause small leakage current. No problem generated in a short time, but it will reduce the accuracy of the battery chip and even burn the battery for a long time. EV2400 Pro has a 6ch independent adjustable power supply and a level conversion chip. It will automatically adjust the output and communication port voltage to match a battery chip voltage. No leakage current is generated). EV2400 Pro can protect battery boards and battery to the greatest extent.

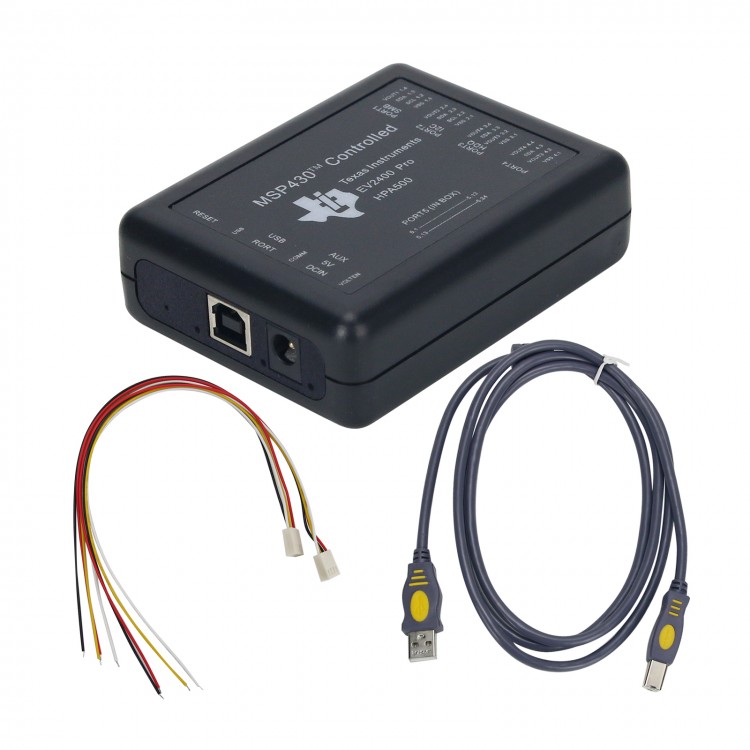

Package Included:
- 1 x EV2400 Pro
- 1 x USB Data Cable
- 2 x KF2510 Connection Cables

Note:
- Batteries are not included.
- It can solve most battery software problems, but it is not for battery hardware failures. Some models, such as battery motherboard for DJI t16, have an MSP430 microprocessor attached to it. After an unreasonable power failure, this processor is very easy to burn and damage the battery. This damage is irreversible and the processor cannot be replaced.
